-Easy to use, fingertip controls
-Forward and reverse drive
-All operational functions are within easy reach
-Parabolic squeegee for easy and complete solution pick up
-Free online training video shows use and care of scrubber for optimal performance
RUGGED
-12 year housing warranty
-5 year warranty on motors
-Transaxle drive
-Heavy duty, cast aluminum squeegee assembly
-Engineered to withstand heavy, daily use in commercial application such as schools, office buildings, and medical facilities
AFFORDABLE
-Best value in the industry
-Charger, pad drivers, and squeegee assembly included
-High cleaning productivity rate
-Extra set of squeegee blades included and stored on-board
-Back by the most extensive, hassle-free warranty in the business.
Cleaning path: 28 in (71.1 cm)
Solution tank: 17 gal (64.3 ltr)
Recovery tank: 17 gal (64.3 ltr)
Pad size: 2 x 14 in ( 2 x 35.6 cm)
Pad pressure, Variable: up to 150 lbs ( 68 kg)
Squeegee, Easy to remove: 35 in (91.4 cm)
Speed control: variable fwd./rev.
Cleaning productivity (max): 28,000 ft2/hr (2,601 m2/hr)
Drive system: .33hp (.24kW), transaxle
Wheels, Non marking grey: (2) 8 in (20.3 cm)
Brush motor, rpm speed: .75 hp (55 kW), 200 rpm
Vacuum motor, waterlift: 3-stage, 67 in (170 cm)
Optional batteries: two 12v, 215 amp/hr
Charger: 18-amp, shelf charger
Run time per charge: approx. 4.5-5 hrs
Weight w/o batteries: 291 lbs (132 kg)
Ship weight w/o batteries: 445 lbs (202 kg)
Dimensions ( L x W x H) 55.5 in x 29.9 in x 39.4 in
(141 cm x 76 cm c 100 cm)

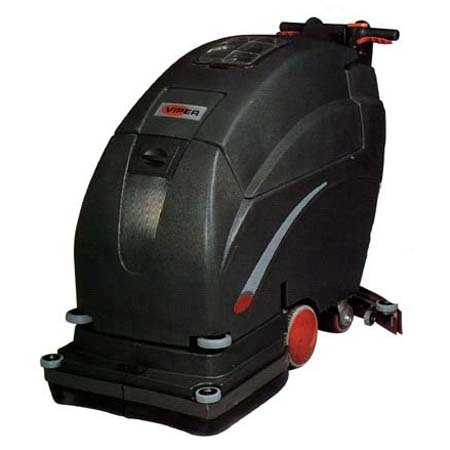

Viper FANG 28T Parts and Support
simple
-easy to use, fingertip controls
-forward and reverse drive
-all operational functions are within easy reach
-parabolic squeegee for easy and complete solution pick up
-free online training video shows use and care of scrubber for optimal performance
rugged
-12 year housing warranty
-5 year warranty on motors
-transaxle drive
-heavy duty, cast aluminum squeegee assembly
-engineered to withstand heavy, daily use in commercial application such as schools, office buildings, and medical facilities
affordable
-best value in the industry
-charger, pad drivers, and squeegee assembly included
-high cleaning productivity rate
-extra set of squeegee blades included and stored on-board
-back by the most extensive, hassle-free warranty in the business.
cleaning path: 28 in (71.1 cm)
solution tank: 17 gal (64.3 ltr)
recovery tank: 17 gal (64.3 ltr)
pad size: 2 x 14 in ( 2 x 35.6 cm)
pad pressure, variable: up to 150 lbs ( 68 kg)
squeegee, easy to remove: 35 in (91.4 cm)
speed control: variable fwd./rev.
cleaning productivity (max): 28,000 ft2/hr (2,601 m2/hr)
drive system: .33hp (.24kw), transaxle
wheels, non marking grey: (2) 8 in (20.3 cm)
brush motor, rpm speed: .75 hp (55 kw), 200 rpm
vacuum motor, waterlift: 3-stage, 67 in (170 cm)
optional batteries: two 12v, 215 amp/hr
charger: 18-amp, shelf charger
run time per charge: approx. 4.5-5 hrs
weight w/o batteries: 291 lbs (132 kg)
ship weight w/o batteries: 445 lbs (202 kg)
dimensions ( l x w x h) 55.5 in x 29.9 in x 39.4 in
(141 cm x 76 cm c 100 cm)
-easy to use, fingertip controls
-forward and reverse drive
-all operational functions are within easy reach
-parabolic squeegee for easy and complete solution pick up
-free online training video shows use and care of scrubber for optimal performance
rugged
-12 year housing warranty
-5 year warranty on motors
-transaxle drive
-heavy duty, cast aluminum squeegee assembly
-engineered to withstand heavy, daily use in commercial application such as schools, office buildings, and medical facilities
affordable
-best value in the industry
-charger, pad drivers, and squeegee assembly included
-high cleaning productivity rate
-extra set of squeegee blades included and stored on-board
-back by the most extensive, hassle-free warranty in the business.
cleaning path: 28 in (71.1 cm)
solution tank: 17 gal (64.3 ltr)
recovery tank: 17 gal (64.3 ltr)
pad size: 2 x 14 in ( 2 x 35.6 cm)
pad pressure, variable: up to 150 lbs ( 68 kg)
squeegee, easy to remove: 35 in (91.4 cm)
speed control: variable fwd./rev.
cleaning productivity (max): 28,000 ft2/hr (2,601 m2/hr)
drive system: .33hp (.24kw), transaxle
wheels, non marking grey: (2) 8 in (20.3 cm)
brush motor, rpm speed: .75 hp (55 kw), 200 rpm
vacuum motor, waterlift: 3-stage, 67 in (170 cm)
optional batteries: two 12v, 215 amp/hr
charger: 18-amp, shelf charger
run time per charge: approx. 4.5-5 hrs
weight w/o batteries: 291 lbs (132 kg)
ship weight w/o batteries: 445 lbs (202 kg)
dimensions ( l x w x h) 55.5 in x 29.9 in x 39.4 in
(141 cm x 76 cm c 100 cm)
Parts
Can't find what you need? Click here or call 1-800-USA-CLEAN
In the market for a new machine? You can find quality new and reconditioned floor care equipment at one of our vendor partners:
Need a professional? We offer service both virtually and in person.
Learn more
Diagrams
- View all diagrams
- - Batteries
- - Chargers
- - Pad Holders
- Batteries, Brushes and Charger
- Brush Lift and Drive Assembly
- Brush Skirt Assembly
- Control Console Assembly
- Pad Driver Assembly
- Pads
- Recovery Tank Assembly
- Solution Control Assembly
- Solution Tank Assembly
- Squeegee Assembly
- Wiring Diagram
