•Exceptional productivity. The 26" scrub deck and 25-gallon solution tank facilitate exceptional productivity with fewer trips to drain and refill the machine.
•Built for daily commercial use. The Wrangler 2625's rugged construction ensures it is ready to work when you need it.
•Simple controls. Operated by just a few switches and mechanical levers, custodians can be ready to clean with just a few minutes of training.
Cleaning Path 26 in (64 cm)
Brush/Pad 2 x 13 in
Solution Tank 25 gal (95 L)
Recovery Tank 27 gal (102 L)
Solution Flow Rates 0 to 1.0 GPM, manual valve
Brush Motor (HP) 0.75 (560 W)
Brush Motor (RPM) 200 RPM
Pad Pressure 60, 90, 120 lbs (27, 40, 54 kg)
Vacuum Motor (HP) 0.75 (560 W)
Vacuum Motor (CFM) 65
Water Lift (in) 56
Drive Motor (HP) 0.33 (250 W)
Drive Wheel Two 8” x 2”
Wheel Material Non-marking rubber with non-slip tread
Drive Speed
Forward: 200 ft/min (61 m/min)
Reverse: 125 ft/min (38 m/min)
Batteries, Quantity 4 x 6V
Batteries, Type and Size 220 AH AGM or 235 AH Wet
Run Time (Hours)
220 AH AGM Up to 3.2 hours
235 AH Wet Up to 3.5 hours
Sound Level (dBA) 68 dBA
Productivity (ft2/hr)
Theoretical 25,999 (2,415 m2/hr)
Practical 12,062 (1,120 m2/hr)
Dimensions L x W x H 55.5 x 27 x 41 in (141 x 69 x 104 cm)
Weight (Lbs)
220 AH
235 AH
Shipping
830 (376 kg)
717 (326 kg)
Machine
721 (327 kg)
608 (276 kg)

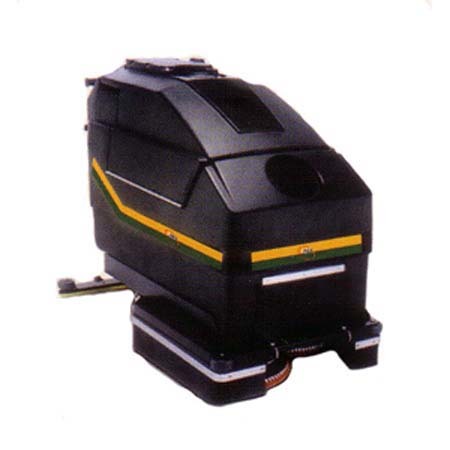

NSS Enterprises WRANGLER 2625 DB Parts and Support
