Max speed: 3 mph (4.83 kph)
System voltage: 24 V
Brush motor power: 0.64 hp (0.48 kW)
Vacuum motor power: 0.44 hp (0.33 kW)
Vacuum airflow: 9.5gal/sec (36L/sec)
Sound level: 68 dB(A)
Battery runtime: 140 min
Theoretical productivity rate, per hour: 15,748 sq ft (1,453 sq m)
Actual productivity rate, per hour: 7,308 sq ft (678.9 sq m)
Working width: 20 in (50.8 cm)
Waterflow: 0.027 - 0.111gpm (0.105 - 0.422L/min)
Solution tank capacity: 10.5gal (39.75L)
Recovery tank capacity: 11.9gal (45.05L)
Squeegee width: 30 in (76.2 cm)
Brush pressure: 66lbs (29.94 kg)
Brush speed: 154 RPM
Brush size: 20 in (50.8 cm)
Dimensions, Length x Width x Height: 46.2 x 22 x 38.6 in (117.35 x 55.88 x 98.04 cm)
Weight, without batteries: 167lbs (75.75 kg)
Weight, with batteries: 285lbs (129.27 kg)
Battery compartment size (L x W x H): 13.7 x 13.7 x 11.8 in (34.8 x 34.8 x 29.97 cm)
Nilfisk-Advance SC450 Parts and Support

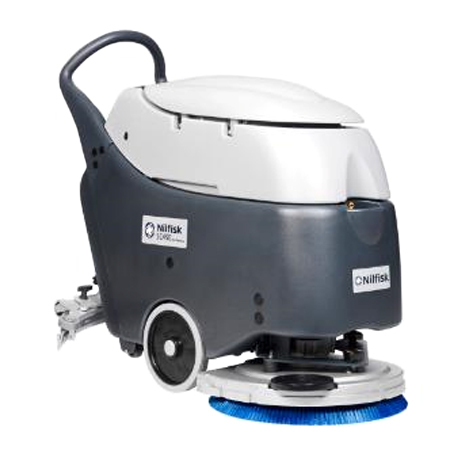

the nilfisk-advance sc450 is a battery-powered, walk-behind autoscrubber. work in larger spaces for longer with the combination of a 10.5-gallon tank and 20-inch scrub path. the ergonomic design and operator-friendly controls ensures ease of use.
max speed: 3 mph (4.83 kph)
system voltage: 24 v
brush motor power: 0.64 hp (0.48 kw)
vacuum motor power: 0.44 hp (0.33 kw)
vacuum airflow: 9.5gal/sec (36l/sec)
sound level: 68 db(a)
battery runtime: 140 min
theoretical productivity rate, per hour: 15,748 sq ft (1,453 sq m)
actual productivity rate, per hour: 7,308 sq ft (678.9 sq m)
working width: 20 in (50.8 cm)
waterflow: 0.027 - 0.111gpm (0.105 - 0.422l/min)
solution tank capacity: 10.5gal (39.75l)
recovery tank capacity: 11.9gal (45.05l)
squeegee width: 30 in (76.2 cm)
brush pressure: 66lbs (29.94 kg)
brush speed: 154 rpm
brush size: 20 in (50.8 cm)
dimensions, length x width x height: 46.2 x 22 x 38.6 in (117.35 x 55.88 x 98.04 cm)
weight, without batteries: 167lbs (75.75 kg)
weight, with batteries: 285lbs (129.27 kg)
battery compartment size (l x w x h): 13.7 x 13.7 x 11.8 in (34.8 x 34.8 x 29.97 cm)
max speed: 3 mph (4.83 kph)
system voltage: 24 v
brush motor power: 0.64 hp (0.48 kw)
vacuum motor power: 0.44 hp (0.33 kw)
vacuum airflow: 9.5gal/sec (36l/sec)
sound level: 68 db(a)
battery runtime: 140 min
theoretical productivity rate, per hour: 15,748 sq ft (1,453 sq m)
actual productivity rate, per hour: 7,308 sq ft (678.9 sq m)
working width: 20 in (50.8 cm)
waterflow: 0.027 - 0.111gpm (0.105 - 0.422l/min)
solution tank capacity: 10.5gal (39.75l)
recovery tank capacity: 11.9gal (45.05l)
squeegee width: 30 in (76.2 cm)
brush pressure: 66lbs (29.94 kg)
brush speed: 154 rpm
brush size: 20 in (50.8 cm)
dimensions, length x width x height: 46.2 x 22 x 38.6 in (117.35 x 55.88 x 98.04 cm)
weight, without batteries: 167lbs (75.75 kg)
weight, with batteries: 285lbs (129.27 kg)
battery compartment size (l x w x h): 13.7 x 13.7 x 11.8 in (34.8 x 34.8 x 29.97 cm)
Parts
Can't find what you need? Click here or call 1-800-USA-CLEAN
In the market for a new machine? You can find quality new and reconditioned floor care equipment at one of our vendor partners:
Need a professional? We offer service both virtually and in person.
Learn more
Diagrams
- View all diagrams
- - Batteries
- - Commonly Asked For Parts
- - Pad Holders
- - Simplifed Recovery System
- - Simplified Solution System
- -Know your machine
- Batteries, Brushes and Charger
- Battery Charger Assembly
- Brush and Pad assembly
- Brush Deck Assembly
- Control Panel Assembly
- Electrical Component Assembly
- Handle Bar and Wheel Assembly
- Pads
- Recovery Tank Assembly
- Solution System Assembly
- Solution Tank Assembly
- Squeegee Assembly
- Wiring Diagram
Manuals
- IS9100000950 - Retrofit Kit Hour Counter
- Nilfisk SC450 Service Manual
- SC450 operator manual_2014
- SC450 parts manual_2016
Bulletins
- Nilfisk-Advance SC450 Tech Bulletin - Brush Motor Overheats
- Nilfisk-Advance SC450 Tech Bulletin - Brush Motor Overload
- TSB-FC-2013-126 - Loose On-Board Charger Connection
- TSB-FC-2013-127 - Scrubber Solution Filter Leaking or Breaking
- TSB-FC-2013-146 - Brush Motor Overload
- TSB-FC-2014-031 - Squeegee Bracket Breaks Upon Impact
- TSB-FC-2015-016 - Brush Motor Overheats
