PACESETTER 17HD

103

• Parts
• Diagrams
• Manuals
• Docs

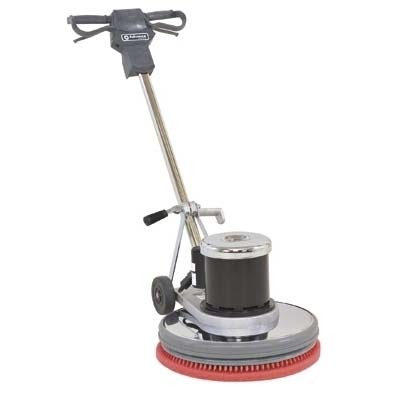

Heavy-Duty, Multi-Purpose Floor Machines The Pacesetter™ is a multi-purpose floor machine designed to meet any of your demands, whether you’re stripping, scrubbing, screening or bonnet cleaning. Heavy-duty construction and durability set this machine above the competition.

Benefits of Pacesetter Heavy-Duty Floor Machines. With four different models to choose from, the Pacesetter family has a machine for any job. The 1.5 hp, 175 RPM Pacesetter HD comes in 17” and 20” sizes and offers a long-lasting triple-planetary gear design. The 20SD model is a super-duty 20” floor machine, offering 1.75 hp, 175 RPM and the same triple-planetary gear design. The 20TS is a two-speed machine that runs at 180 and 320 RPM, with a 1.5 hp DC rectified motor.

Invest in a burnisher that’s built to last — all-cast metal frame, chrome-plated base and long-lasting motor Ensure safety with ergonomic molded handle, safety activation switch and clear hospital grade plug Improve operator comfort and efficiency with easy-to-use handle height adjustment, pad holders and super-flex cord for easy handling and reduced tangling.

Pad/Brush Size: 17 in (43.2 cm)
Pad Drive System - Horsepower: 1.5 hp AC
Frame size: 66
Motor Amps: 15 A
Capacitors: Dual, start and run
Voltage (V): 120 V
Revolutions per minute: 175 rpm
Transmission: Triple planetary gears - all metal
Clutch plate: NP 92 (industry standard)
Weight (lbs): 100 lb (45 kg)
Power cord - length: 50 ft (15.25 m)
Power cord - type: Safety Yellow Super-flex with hospital grade plug
Sound level: 65 dB A
