Innovative features include a simple, ergonomic handlebar and control panel for all scrub functions. And convenience features, like the rear solution tank port that permits filling the solution tank while dumping the recovery tank to save time; the easy-to-read solution level sight gauge, that tells how much solution is left in the tank; and hands-off brush mounting and removal to avoid getting down and reaching under a machine. All these features help save time with set-up, clean-up and production time.
The scrub brush(es) float over uneven floors, and are gear-driven for optimum scrubbing speed and torque. Maneuvering is a breeze with the center drive wheel that can pivot on corners while the squeegee follows the scrub path.
Advance ConvertaMAX® scrubbers have the durability the Advance brand is known for. You can depend on the these scrubbers being productive for a long time.
Cleaning Width 26 in (66 cm)
Cleaning Rate 34,500 ft2 (3,205 m2) per hour
Solution Tank 20 gal (76 L) capacity, roto-molded polyethylene, w/drain hose
Solution Feed System Electric solenoid valve for on/off control, manual ball valve for flow control. Max 0.8 gal/min (3 L/min) flow rate
Recovery Tank 20 gal (76 L) capacity, roto-molded polyethylene, equipped with ball-float vacuum air shut-off. 31 in (79 cm) long 1.5 in (38 mm) diameter drain hose
Scrub Brushes Two 13 in (36 cm) diameter disc brushes or pad holders
Brush Speed 220 rpm
Brush Pressure Low – 70 lb (32 kg) High – 110 lb (50 kg)
Squeegee 36.25 in (92 cm) w/four-sided wiping blades
Brush Drive Motor(s) Two 0.75 hp, 560 W motors
Vacuum Motor 0.75 hp, 570 W, three-stage
Drive System 0.5 hp, 373 W motor. Variable speeds forward & reverse. Up to 265 ft/min (81 m/min) scrubbing, 290 ft/min (88 m/min) transport
Power Source Four 6 V/238 Ah batteries (standard)
Construction Solid 10-gauge unitized steel frame is zinc-plated, yellow chromated and painted to resist rust.
Weight 648 lb (294 kg) w/238 Ah batteries 384 lb (174 kg) without batteries 439 lb (199 kg) shipping, (machine only)

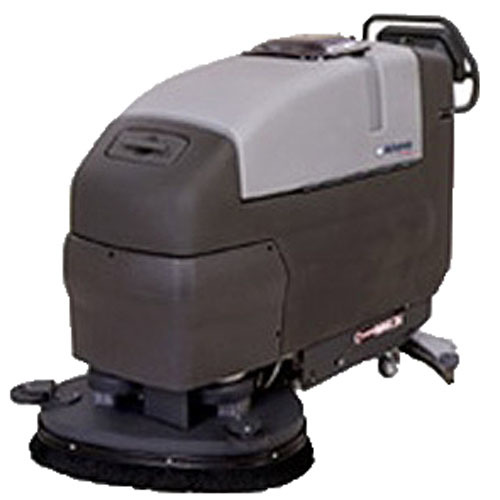

Nilfisk-Advance CONVERTAMAX 26 Parts and Support
The Advance ConvertaMAX automatic scrubbers combine the best features of scrubber technology in both 20 and 26 inch (51 and 66 cm) scrub path sizes.
Innovative features include a simple, ergonomic handlebar and control panel for all scrub functions. And convenience features, like the rear solution tank port that permits filling the solution tank while dumping the recovery tank to save time; the easy-to-read solution level sight gauge, that tells how much solution is left in the tank; and hands-off brush mounting and removal to avoid getting down and reaching under a machine. All these features help save time with set-up, clean-up and production time.
The scrub brush(es) float over uneven floors, and are gear-driven for optimum scrubbing speed and torque. Maneuvering is a breeze with the center drive wheel that can pivot on corners while the squeegee follows the scrub path.
Advance ConvertaMAX® scrubbers have the durability the Advance brand is known for. You can depend on the these scrubbers being productive for a long time.
Cleaning Width 26 in (66 cm)
Cleaning Rate 34,500 ft2 (3,205 m2) per hour
Solution Tank 20 gal (76 L) capacity, roto-molded polyethylene, w/drain hose
Solution Feed System Electric solenoid valve for on/off control, manual ball valve for flow control. Max 0.8 gal/min (3 L/min) flow rate
Recovery Tank 20 gal (76 L) capacity, roto-molded polyethylene, equipped with ball-float vacuum air shut-off. 31 in (79 cm) long 1.5 in (38 mm) diameter drain hose
Scrub Brushes Two 13 in (36 cm) diameter disc brushes or pad holders
Brush Speed 220 rpm
Brush Pressure Low – 70 lb (32 kg) High – 110 lb (50 kg)
Squeegee 36.25 in (92 cm) w/four-sided wiping blades
Brush Drive Motor(s) Two 0.75 hp, 560 W motors
Vacuum Motor 0.75 hp, 570 W, three-stage
Drive System 0.5 hp, 373 W motor. Variable speeds forward & reverse. Up to 265 ft/min (81 m/min) scrubbing, 290 ft/min (88 m/min) transport
Power Source Four 6 V/238 Ah batteries (standard)
Construction Solid 10-gauge unitized steel frame is zinc-plated, yellow chromated and painted to resist rust.
Weight 648 lb (294 kg) w/238 Ah batteries 384 lb (174 kg) without batteries 439 lb (199 kg) shipping, (machine only)
Innovative features include a simple, ergonomic handlebar and control panel for all scrub functions. And convenience features, like the rear solution tank port that permits filling the solution tank while dumping the recovery tank to save time; the easy-to-read solution level sight gauge, that tells how much solution is left in the tank; and hands-off brush mounting and removal to avoid getting down and reaching under a machine. All these features help save time with set-up, clean-up and production time.
The scrub brush(es) float over uneven floors, and are gear-driven for optimum scrubbing speed and torque. Maneuvering is a breeze with the center drive wheel that can pivot on corners while the squeegee follows the scrub path.
Advance ConvertaMAX® scrubbers have the durability the Advance brand is known for. You can depend on the these scrubbers being productive for a long time.
Cleaning Width 26 in (66 cm)
Cleaning Rate 34,500 ft2 (3,205 m2) per hour
Solution Tank 20 gal (76 L) capacity, roto-molded polyethylene, w/drain hose
Solution Feed System Electric solenoid valve for on/off control, manual ball valve for flow control. Max 0.8 gal/min (3 L/min) flow rate
Recovery Tank 20 gal (76 L) capacity, roto-molded polyethylene, equipped with ball-float vacuum air shut-off. 31 in (79 cm) long 1.5 in (38 mm) diameter drain hose
Scrub Brushes Two 13 in (36 cm) diameter disc brushes or pad holders
Brush Speed 220 rpm
Brush Pressure Low – 70 lb (32 kg) High – 110 lb (50 kg)
Squeegee 36.25 in (92 cm) w/four-sided wiping blades
Brush Drive Motor(s) Two 0.75 hp, 560 W motors
Vacuum Motor 0.75 hp, 570 W, three-stage
Drive System 0.5 hp, 373 W motor. Variable speeds forward & reverse. Up to 265 ft/min (81 m/min) scrubbing, 290 ft/min (88 m/min) transport
Power Source Four 6 V/238 Ah batteries (standard)
Construction Solid 10-gauge unitized steel frame is zinc-plated, yellow chromated and painted to resist rust.
Weight 648 lb (294 kg) w/238 Ah batteries 384 lb (174 kg) without batteries 439 lb (199 kg) shipping, (machine only)
Parts
Can't find what you need? Click here or call 1-800-USA-CLEAN
In the market for a new machine? You can find quality new and reconditioned floor care equipment at one of our vendor partners:
Need a professional? We offer service both virtually and in person.
Learn more
Diagrams
- View all diagrams
- - Frequently Replaced Parts
- - Batteries
- - Chargers
- - Pad Holders
- -Know your Machine
- -Simplified Electrical System
- -Simplified Recovery System
- -Simplified Solution System
- Batteries, Brushes and Charger
- Chassis System
- Decal System
- Drive System
- Electrical Components
- Electrical System
- Handle System
- Pads
- Recovery Components
- Recovery System
- Scrub System Skirts
- Scrub System with Bolt on Skirts
- Scrub System with Slide Off Skirts
- Solution Components
- Solution System
- Squeegee System
- Wiring Diagram
Manuals
Bulletins
Repair Guides
- Adjusting the Potentiometer
- Cleaning or Replacing the Solution Filter
- Replacing the Handle Control Springs
- Replacing the Squeegee Blades
- Replacing the Vacuum Motor
