All Convertamatics come standard with an integrated Smart Solutions System that allows the machine to operate for 1 hour and 20 minutes per dump & refill cycle with the Convertamatic's 20 gallon (76 L) solution and recovery tanks. At the same time, the integrated Smart Solution system features pre-set scrub settings that combine solution flow and scrub pressure into simple operator selections for regular, heavy, or extreme scrubbing conditions. The combination of these features makes the Convertamatic the ultimate in One-Touch operation for instant training, increases safety, consistent performance, and maximum run-time.
The Advance Convertamatic family of scrubbers features six scrubbing configurations on a single platform- 24 inch, 26 inch, and 28 inch scrub decks are available in both disc and cylindrical scrub heads. Additionally, all six scrub decks are tools-free interchangeable on any machine. This modularity allows the flexibility to use either cylindrical sweep/scrub multi-tasking or rotary disc scrubbing with the same machine for different applications at the same facility. In keeping with the Total Clean philosophy, the ability to easily remove the scrub decks also makes the machines easier to service.
The Convertamatic has many important new safety features:
•Soft-Touch Paddle System allows operator to depress drive paddle directly to the handle-bar without pinching fingers.
•UltraFlow Squeegee System provides best-in-class recovery of solution on tight turns to greatly reduce the potential for slippery moisture to be left behind
•Standard onboard battery charger and optional gel batteries to eliminate battery maintenance, fumes, and acid spills.
Scrub Head Type Disc
Scrub Path 26 in (66 cm)
Max Productivity @ 2.8 mph 32,050 ft2/hr (3,000 m2/hr)
Max Productivity @ 1.5 mph 17,200 ft2/hr (1,598 m2/hr)
Scrub Head Size (2) 13 in (33 cm) brushes or pad holders
Scrub Pressure
Regular Scrub max 80 lb (36 kg)
Heavy Scrub max 130 lb (59 kg)
Extreme Scrub max 160 lb (73 kg)
Scrub Head Speed 220 rpm
Solution Flow Rate
Regular Scrub 0.25 gal/min (0.95 L/min) or 80 minutes per solution tank – ALL MODELS
Heavy Scrub 0.50 gal/min (1.9 L/min) or 40 minutes per solution tank – ALL MODELS
Extreme Scrub 0.75 gal/min (2.8 L/min) or 27 minutes per solution tank – ALL MODELS
Squeegee Width 36.6 in (93 cm)
Dimensions (w/o squeegee) W = 27.5 in (70 cm) L = 55 in (140 cm) H = 44 in (112 cm)
Weight w/ Batteries 613 lb (278 kg)
Voltage 24 V – ALL MODELS
Power Source (4) 6 V batteries (wet acid and gel cell available) – ALL MODELS
Onboard Battery
Charger 24 V, 25 amp wet/gel compatible – ALL MODELS
Solution Control Precision-Flow electric pump – ALL MODELS
Solution Tank 20 gal (76 L) – ALL MODELS
Recovery Tank 20 gal (76 L) – ALL MODELS
Scrub Motors (2) 0.50 hp (375 W) – ALL MODELS
Vacuum Motor 0.75 hp (560 W) 3-stage – ALL MODELS
Sound Level 66 dB A at operator's position – ALL MODELS
Drive System 0.4 hp (300 W) variable forward and reverse,
max speed = 3 mph (4.83 km/hr), 10% gradeability – ALL MODELS
Drive Wheels (2) 7 in (18 cm) diameter foam-filled, gray non-marking – ALL MODELS

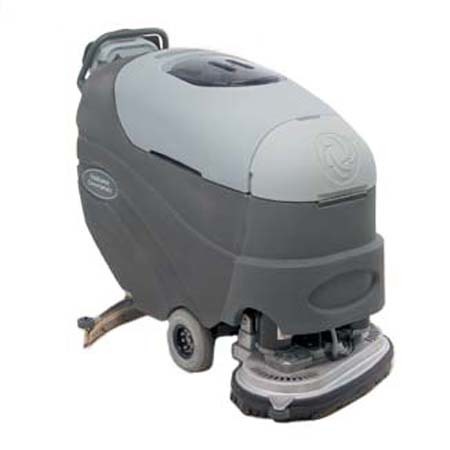

Nilfisk-Advance CONVERTAMATIC 26D Parts and Support
