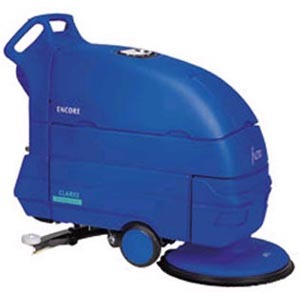

Encore compact auto scrubbers can be found cleaning hospitals, schools and even a variety of heavy industrial applications. This versatile unit is rugged and dependable, even in the harshest of conditions. After many years of use the Encore standard and luxury models still provide the greatest value in the industry.
Encore® Features Include:
•Heavy-duty Polydur® construction protects internal components.
•Reinforced floating scrub deck.
•Transaxle drive is standard on the luxury model for scrubbing inclines and ramps and offers a tremendous advantage when transporting the machine.
• Patented Accu-Track™ break-away squeegee prevents damage if accidentally hooked by a post or pallet. The connecting hose stays with
the machine.
• Heavy duty rear caster absorb shocks from grouted or damaged floor surfaces.
• Optional brushes will increase cleaning effectiveness on rough concrete covered with grease and grime.
• Optional off-aisle spray tool and vac wand.
• Various battery pack options mean you only pay for the run time you need.
Power Supply: 24 Volt (2) 12 Volt, 95 AH or 195 AH
Charger: 115V 60 Hz or 230 V 50 Hz
Vacuum Motor: 3-stage tangential discharge
Brush Motor: Permanent magnet, .75 hp (.56 kW)
Traction Motor: Permanent magnet, .75 hp (.56 kW)
Cleaning Swath: 20" (50.8 cm)
Brush Pressure: Floating Pressure = 55 lbs. (25 kg) / Locked down = 105 lbs. (48 kg)
Brush Size/Speed: 20" / 200 RPM
Traverse Speed-Forward/Reverse: Forward brush assisted / reverse not applicable for S20, Variable forward to 250 ft. (76 M) per minute and reverse to 190 ft. (58 M) per minute for L20
Recovery/Solution Tank: 14 / 14 gallons (53.2 / 53.2 L)
Squeegee Size/Type: 25" (69 cm), Accu-Trac™ with breakaway feature
Drive Wheels/Caster: (2) 8" x 2" (20.3 cm x 5.1 cm) neoprene and (1) 4" x 1" (10.1 cm x 2.5 cm) swivel rear caster
Dimensions: 52.5" x 22.25" x 43.5" (133.4 x 56.5 x 100.5 cm)
Weight: 468 lbs. (212.3 kg) w/batteries
Shipping Weight: 607 lbs. (275.3 kg) w/batteries
Clarke (Alto) ENCORE S20 Parts and Support
designed to last …
encore compact auto scrubbers can be found cleaning hospitals, schools and even a variety of heavy industrial applications. this versatile unit is rugged and dependable, even in the harshest of conditions. after many years of use the encore standard and luxury models still provide the greatest value in the industry.
encore® features include:
•heavy-duty polydur® construction protects internal components.
•reinforced floating scrub deck.
•transaxle drive is standard on the luxury model for scrubbing inclines and ramps and offers a tremendous advantage when transporting the machine.
• patented accu-track™ break-away squeegee prevents damage if accidentally hooked by a post or pallet. the connecting hose stays with
the machine.
• heavy duty rear caster absorb shocks from grouted or damaged floor surfaces.
• optional brushes will increase cleaning effectiveness on rough concrete covered with grease and grime.
• optional off-aisle spray tool and vac wand.
• various battery pack options mean you only pay for the run time you need.
power supply: 24 volt (2) 12 volt, 95 ah or 195 ah
charger: 115v 60 hz or 230 v 50 hz
vacuum motor: 3-stage tangential discharge
brush motor: permanent magnet, .75 hp (.56 kw)
traction motor: permanent magnet, .75 hp (.56 kw)
cleaning swath: 20" (50.8 cm)
brush pressure: floating pressure = 55 lbs. (25 kg) / locked down = 105 lbs. (48 kg)
brush size/speed: 20" / 200 rpm
traverse speed-forward/reverse: forward brush assisted / reverse not applicable for s20, variable forward to 250 ft. (76 m) per minute and reverse to 190 ft. (58 m) per minute for l20
recovery/solution tank: 14 / 14 gallons (53.2 / 53.2 l)
squeegee size/type: 25" (69 cm), accu-trac™ with breakaway feature
drive wheels/caster: (2) 8" x 2" (20.3 cm x 5.1 cm) neoprene and (1) 4" x 1" (10.1 cm x 2.5 cm) swivel rear caster
dimensions: 52.5" x 22.25" x 43.5" (133.4 x 56.5 x 100.5 cm)
weight: 468 lbs. (212.3 kg) w/batteries
shipping weight: 607 lbs. (275.3 kg) w/batteries
encore compact auto scrubbers can be found cleaning hospitals, schools and even a variety of heavy industrial applications. this versatile unit is rugged and dependable, even in the harshest of conditions. after many years of use the encore standard and luxury models still provide the greatest value in the industry.
encore® features include:
•heavy-duty polydur® construction protects internal components.
•reinforced floating scrub deck.
•transaxle drive is standard on the luxury model for scrubbing inclines and ramps and offers a tremendous advantage when transporting the machine.
• patented accu-track™ break-away squeegee prevents damage if accidentally hooked by a post or pallet. the connecting hose stays with
the machine.
• heavy duty rear caster absorb shocks from grouted or damaged floor surfaces.
• optional brushes will increase cleaning effectiveness on rough concrete covered with grease and grime.
• optional off-aisle spray tool and vac wand.
• various battery pack options mean you only pay for the run time you need.
power supply: 24 volt (2) 12 volt, 95 ah or 195 ah
charger: 115v 60 hz or 230 v 50 hz
vacuum motor: 3-stage tangential discharge
brush motor: permanent magnet, .75 hp (.56 kw)
traction motor: permanent magnet, .75 hp (.56 kw)
cleaning swath: 20" (50.8 cm)
brush pressure: floating pressure = 55 lbs. (25 kg) / locked down = 105 lbs. (48 kg)
brush size/speed: 20" / 200 rpm
traverse speed-forward/reverse: forward brush assisted / reverse not applicable for s20, variable forward to 250 ft. (76 m) per minute and reverse to 190 ft. (58 m) per minute for l20
recovery/solution tank: 14 / 14 gallons (53.2 / 53.2 l)
squeegee size/type: 25" (69 cm), accu-trac™ with breakaway feature
drive wheels/caster: (2) 8" x 2" (20.3 cm x 5.1 cm) neoprene and (1) 4" x 1" (10.1 cm x 2.5 cm) swivel rear caster
dimensions: 52.5" x 22.25" x 43.5" (133.4 x 56.5 x 100.5 cm)
weight: 468 lbs. (212.3 kg) w/batteries
shipping weight: 607 lbs. (275.3 kg) w/batteries
Parts
Can't find what you need? Click here or call 1-800-USA-CLEAN
In the market for a new machine? You can find quality new and reconditioned floor care equipment at one of our vendor partners:
Need a professional? We offer service both virtually and in person.
Learn more
Diagrams
- View all diagrams
- - Frequently Replaced Parts
- - Batteries
- - Chargers
- - Know Your Machine
- - Pad Holders
- -Simplified Electrical System
- -Simplified Recovery System
- -Simplified Solution System - After 08.2004
- -Simplified Solution System - Before 08.2004
- Batteries, Brushes and Charger
- Brush Housing Assembly
- Brush Lift Assembly
- Brush Motor Assembly
- Connection Diagram
- Electrical Cover Assembly
- Electrical Schematic
- Electronic Solution Valve Kit
- ESP Recycle Kit
- Frame Assembly
- Front cover and Motor Assembly
- Gearbox Assembly
- Low Voltage Cut-off Kit
- Optional Brake
- Pads
- Powerwand System Kit
- Rear Panel Assembly
- Recovery Tank Assembly
- Solution Tank Assembly - After 08.2004
- Solution Tank Assembly - Before 08.2004
- Squeegee Assembly - After SN AC2077
- Squeegee Assembly - Before SN AC2077
- Squeegee Lift Assembly
- Vacuum Motor Assembly - NON-OEM
Manuals
Bulletins
Repair Guides
- REPLACING THE FWD/REV SWITCH
- REPLACING THE VAC MOTOR
- REPLACING THE SQUEEGY BLADES
- CLEANING AND REPLACING THE SOLUTION FILTER
