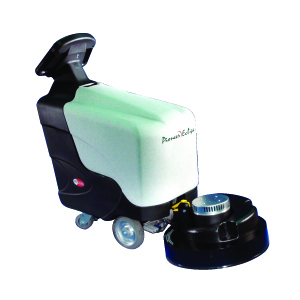

PE300BU

• Parts
• Diagrams

VOLTAGE: .........................36 VDC (3 - 12 VDC Batteries) BATTERIES:...............................12 VDC Lead Acid 228 Ah 12 VDC AGM 235 Ah
BURNISH RATE:
20 in.................................. ±26,000 ft2/hr (2415 m2/hr)
24 in.................................. ±31,200 ft2/hr (2899 m2/hr)
30 in.................................. ±42,900 ft2/hr (3985 m2/hr)
BURNISH WIDTH:
20 in........................................................ 20 in (51 cm)
24 in........................................................ 24 in (61 cm)
30 in........................................................ 30 in (76 cm)
BURNISH PAD: 20 in..........................................................20 in (51 cm)
24 in......................................................... 24 in (61 cm)
30 in (Qty 2)..........................................16 in X (41 cm)
PAD SPEED:..............................................
20 in.....................................................(20 in) 2000 rpm
24 in.....................................................(24 in) 1800 rpm
30 in.....................................................(30 in) 2000 rpm
PAD PRESSURE:................................................Adjustable
FORWARD SPEED (Traction Only)...3.25 mph (5.23 km/h)
REVERSE SPEED: (Traction Only).......1.5 mph (2.4 km/h)
BURNISH MOTOR:..............................PM 2.5 hp (1.86 kw)
TRANSAXLE (Traction Only)......................1/4hp (186 watt)
BATTERY CHARGER:......................On-Board 36VDC 25A WHEELS:..............................................8 in. (20.3 cm) Solid
NOISE LEVEL:..........................................................<70 dB
VIBRATION LEVEL:...............................Less than 2.5 m/s2
WEIGHT (w/o BATTERIES): 20" Pad Assist........................................ 200 lbs (91 kg) Traction............................................ 219 lbs (99 kg)
24" Pad Assist........................................ 212 lbs (96 kg) Traction.......................................... 231 lbs (105 kg) 30"..........................................................245 lbs (111 kg)
BATTERY WEIGHT................................(3) Sealed 418 lbs (3) Lead Acid 378 lbs
OVERLOAD PROTECTION:................Resettable Breakers
OPERATING TIME:...............................Approximately 3 hrs
LENGTH: 20 in (Head Up).........................................49 in (124cm)
(Head Down).....................................58 in (147cm) 24 in
(Head Up).........................................49 in (124cm)
(Head Down).....................................61 in (155cm) 30 in
(Head Up)........................................51 in (130 cm)
(Head Down)....................................60 in (152 cm)
DECK WIDTH: 20 in............................................................22 in (56 cm)
24 in............................................................26 in (66 cm)
30 in............................................................33 in (84 cm)
FRAME WIDTH:...............................................22 in (56 cm) HEIGHT..........................................................45 in (114 cm)
