Vacuum motor stages 2-stage 2-stage
Waterlift 91.5 in 2324 mm
Airflow 103 cfm 2.9 cmm
Vacuum Shoe Size 13 in 330 mm
Recovery tank capacity 4 gal 13.24 L
Solution & Brush System
Solution tank capacity 4 gal 13.24 L
Solution flow .52 gal / min 1.97 L / min
Spray jets 2 2
Pump pressure 60 psi 4.5 bar
Pump motor volts 120 V 120 V
Pump motor amps 1 amp 1 amp
Brush rpm 1200 rpm 1200 rpm
Brush motor voltage 120 V 120 V
Brush motor amps 1 amp 1 amp
Brush motor rpm 1800 rpm 1800 rpm
Total Power Consumption
Amps 12 amps 12 amps
Voltage/Watts 120 V 1400 W
Body Construction
Chassis Polyethylene polyethylene

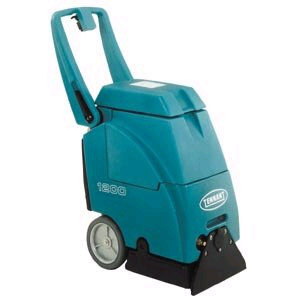

Tennant 1200 Parts and Support
vacuum motor 1.5 hp 9.1 amp
vacuum motor stages 2-stage 2-stage
waterlift 91.5 in 2324 mm
airflow 103 cfm 2.9 cmm
vacuum shoe size 13 in 330 mm
recovery tank capacity 4 gal 13.24 l
solution & brush system
solution tank capacity 4 gal 13.24 l
solution flow .52 gal / min 1.97 l / min
spray jets 2 2
pump pressure 60 psi 4.5 bar
pump motor volts 120 v 120 v
pump motor amps 1 amp 1 amp
brush rpm 1200 rpm 1200 rpm
brush motor voltage 120 v 120 v
brush motor amps 1 amp 1 amp
brush motor rpm 1800 rpm 1800 rpm
total power consumption
amps 12 amps 12 amps
voltage/watts 120 v 1400 w
body construction
chassis polyethylene polyethylene
vacuum motor stages 2-stage 2-stage
waterlift 91.5 in 2324 mm
airflow 103 cfm 2.9 cmm
vacuum shoe size 13 in 330 mm
recovery tank capacity 4 gal 13.24 l
solution & brush system
solution tank capacity 4 gal 13.24 l
solution flow .52 gal / min 1.97 l / min
spray jets 2 2
pump pressure 60 psi 4.5 bar
pump motor volts 120 v 120 v
pump motor amps 1 amp 1 amp
brush rpm 1200 rpm 1200 rpm
brush motor voltage 120 v 120 v
brush motor amps 1 amp 1 amp
brush motor rpm 1800 rpm 1800 rpm
total power consumption
amps 12 amps 12 amps
voltage/watts 120 v 1400 w
body construction
chassis polyethylene polyethylene
Parts
Can't find what you need? Click here or call 1-800-USA-CLEAN
In the market for a new machine? You can find quality new and reconditioned floor care equipment at one of our vendor partners:
Need a professional? We offer service both virtually and in person.
Learn more
Diagrams
- View all diagrams
- - Extractor Fit All Parts
- - Frequently Replaced Parts
- Brush Assembly
- Electrical Diagrams 120 V Ladder Diagram
- Electrical Diagrams 120V Wiring Diagram
- Electrical Diagrams 220V/230V Ladder Diagram
- Electrical Diagrams 220V/230V Wiring Diagram
- Hand Tool
- Handle Assembly
- Rear Panel Assembly
- Recovery Tank Assembly
- Solution Assembly
- Solution Tank Assembly
