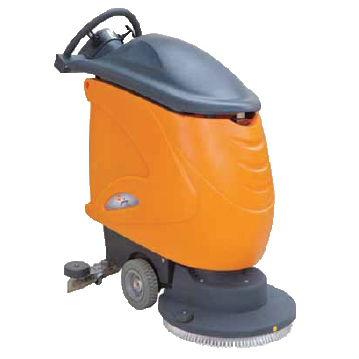

The Taski swingo B/BMS is a battery-powered 20 in (51 cm) auto scrubber that offers maximum agility in confined areas with a dual-axle system that allows the machine to literally turn on the spot.
Features and Benefits:
•The dual-axle system allows for excellent maneuverability in tightly congested areas
•The 11 gallon tank reduces time consuming, tank refilling stops during cleaning operation
•The machines patented brush follows the floor profile and delivers nearly even pressure allocation along the full working width, yielding excellent soil removal
•All components needing frequent maintenance are color coded in yellow and can easily be removed without tools.
•Comes standard with IntelliFlow and is IntelliDose and IntelliTrail ready
•The use of high-tech material and long life components enhance the machines uptime while reducing service and repair
•The machines dashboard is virtually self-explanatory with easy to interpret images allowing trouble-free operation
•The need for minimum operator training increases productivity and end-user safety
Theoretical performance 24,218 ft.2/h (2,250 m2/h)
Working width 20 in. (51 cm)
Squeegee width 27 in. (69 cm)
Solution tank (nominal) 11 gal. (40 L)
Recovery tank (nominal) 11 gal. (40 L)
Nominal consumption 900 W
Rated voltage 24 V
Battery capacity 50-70 Ah/C5
Battery run time (nominal) up to 2 hr.
Machine weight ready for use (power) 353 lb. (160 kg)
Dimensions (L x W x H) 48 x 21 x 47 in. (122 x 53 x 120 cm)
Turning circle 3 ft. (1 m)
Brush system 1 x 20 in. (1 x 50 cm)
Brush pressure (with wheel drive) 95 lb. (43 kg)
Working speed (power) 2.8 mph (4.5 km/h)
Power cord length of integrated battery charger 10 ft. (3 m)
Sound level 58 dB(A)
Electrical protection class I/II
Approvals CE/CB Test cert. Interactive Service Guide
