Key features
• Unmatched productivity
• Powerful cleaning and drying results
• Total reliability
• Intelligence
Unmatched productivity
The patented IntelliFlow system ensures always the right amount of cleaning solution on the floor and leads to significant water savings. These, in combination with the large 200L tank and a high cleaning speed of 7.5 km/h radically increase productivity and reduce the number of time-consuming tank filling stops. The unique all wheel steering makes the machine very agile to easy maneuver in congested areas.
Powerful cleaning and drying results
The patented W-shaped squeegee follows the floor profile and allows perfect water pick-up even in curves, while turning and on uneven or structured floors. Special squeegee blades and a direct suction line allow pick-up of small debris without clogging. This results in both exceptional cleaning and immediate drying results, and hence a consistently high and improved floor appearance.
Total Reliability
Engineered for durability and hard cleaning tasks, the Taski Swingo 5000 is constructed with high tech material and long life components that increase machine uptime and reduce repair cost. All components which need frequent maintenance are color coded in yellow and can be removed easily without tools. These features allow trouble-free operation with minimum of operator training needed and enhance machines uptime.
Intelligence
The superior ergonomic design ensures operatives can work in a safe and comfortable position. Good visibility and self adjusting squeegee ensures 'clean to edge' performance. Low noise levels can be lowered further by using the ECO mode, ideal for daytime cleaning.
Theoretical performance 7875 m²/h
Turning circle 200 cm
Working width 105 cm
Ramp with full tank w/o cleaning 15%
Squeegee width 129 cm
Brush system 4 x 28 cm
Solution tank – flex tank (nominal) 200 L
Brush pressure min./max. 60-90 kg
Recovery tank – flex tank (nominal) 210 L
Cleaning speed/Transportation speed 7.5 km/h / 8.0 km/h
Rated voltage 24 V
Sound level 67 dB(A)
Battery capacity 240-360vAh/C5
Electrical protection class III
Battery autonomy (nominal) 4.5-6.5 h
Splash water protection class IPX3
Machine weight ready for use w/240 Ah batteries, 75 kg driver 790 kg
Approvals CE/CB test certificate
Dimensions (L x W x H) (height above driver’s seat) 178 x 109 x 140 cm Interactive Service Guide

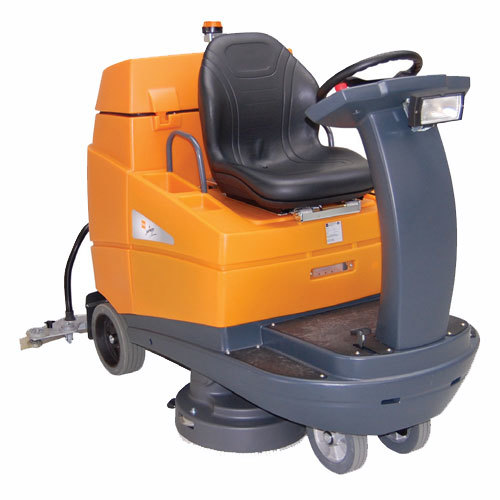

TASKI by Diversey SWINGO 5000 Parts and Support
large ride-on automatic scrubber drier
key features
• unmatched productivity
• powerful cleaning and drying results
• total reliability
• intelligence
unmatched productivity
the patented intelliflow system ensures always the right amount of cleaning solution on the floor and leads to significant water savings. these, in combination with the large 200l tank and a high cleaning speed of 7.5 km/h radically increase productivity and reduce the number of time-consuming tank filling stops. the unique all wheel steering makes the machine very agile to easy maneuver in congested areas.
powerful cleaning and drying results
the patented w-shaped squeegee follows the floor profile and allows perfect water pick-up even in curves, while turning and on uneven or structured floors. special squeegee blades and a direct suction line allow pick-up of small debris without clogging. this results in both exceptional cleaning and immediate drying results, and hence a consistently high and improved floor appearance.
total reliability
engineered for durability and hard cleaning tasks, the taski swingo 5000 is constructed with high tech material and long life components that increase machine uptime and reduce repair cost. all components which need frequent maintenance are color coded in yellow and can be removed easily without tools. these features allow trouble-free operation with minimum of operator training needed and enhance machines uptime.
intelligence
the superior ergonomic design ensures operatives can work in a safe and comfortable position. good visibility and self adjusting squeegee ensures 'clean to edge' performance. low noise levels can be lowered further by using the eco mode, ideal for daytime cleaning.
theoretical performance 7875 m²/h
turning circle 200 cm
working width 105 cm
ramp with full tank w/o cleaning 15%
squeegee width 129 cm
brush system 4 x 28 cm
solution tank – flex tank (nominal) 200 l
brush pressure min./max. 60-90 kg
recovery tank – flex tank (nominal) 210 l
cleaning speed/transportation speed 7.5 km/h / 8.0 km/h
rated voltage 24 v
sound level 67 db(a)
battery capacity 240-360vah/c5
electrical protection class iii
battery autonomy (nominal) 4.5-6.5 h
splash water protection class ipx3
machine weight ready for use w/240 ah batteries, 75 kg driver 790 kg
approvals ce/cb test certificate
dimensions (l x w x h) (height above driver’s seat) 178 x 109 x 140 cm
key features
• unmatched productivity
• powerful cleaning and drying results
• total reliability
• intelligence
unmatched productivity
the patented intelliflow system ensures always the right amount of cleaning solution on the floor and leads to significant water savings. these, in combination with the large 200l tank and a high cleaning speed of 7.5 km/h radically increase productivity and reduce the number of time-consuming tank filling stops. the unique all wheel steering makes the machine very agile to easy maneuver in congested areas.
powerful cleaning and drying results
the patented w-shaped squeegee follows the floor profile and allows perfect water pick-up even in curves, while turning and on uneven or structured floors. special squeegee blades and a direct suction line allow pick-up of small debris without clogging. this results in both exceptional cleaning and immediate drying results, and hence a consistently high and improved floor appearance.
total reliability
engineered for durability and hard cleaning tasks, the taski swingo 5000 is constructed with high tech material and long life components that increase machine uptime and reduce repair cost. all components which need frequent maintenance are color coded in yellow and can be removed easily without tools. these features allow trouble-free operation with minimum of operator training needed and enhance machines uptime.
intelligence
the superior ergonomic design ensures operatives can work in a safe and comfortable position. good visibility and self adjusting squeegee ensures 'clean to edge' performance. low noise levels can be lowered further by using the eco mode, ideal for daytime cleaning.
theoretical performance 7875 m²/h
turning circle 200 cm
working width 105 cm
ramp with full tank w/o cleaning 15%
squeegee width 129 cm
brush system 4 x 28 cm
solution tank – flex tank (nominal) 200 l
brush pressure min./max. 60-90 kg
recovery tank – flex tank (nominal) 210 l
cleaning speed/transportation speed 7.5 km/h / 8.0 km/h
rated voltage 24 v
sound level 67 db(a)
battery capacity 240-360vah/c5
electrical protection class iii
battery autonomy (nominal) 4.5-6.5 h
splash water protection class ipx3
machine weight ready for use w/240 ah batteries, 75 kg driver 790 kg
approvals ce/cb test certificate
dimensions (l x w x h) (height above driver’s seat) 178 x 109 x 140 cm
Parts
Can't find what you need? Click here or call 1-800-USA-CLEAN
In the market for a new machine? You can find quality new and reconditioned floor care equipment at one of our vendor partners:
Need a professional? We offer service both virtually and in person.
Learn more
Diagrams
- View all diagrams
- - Frequently Replaced Parts - Series 1 and 2
- - Batteries, Brushes and Charger - Machines Sold Before 2016 - Series 1 and 2
- - Batteries, Brushes and Charger - Machines Starting in 2016 - Series 1 and 2
- - Manufacturer Recommended Stocking Parts
- - Pad Holders
- - Pads - 20 inch
- -Know Your Machine - Series 1 and 2
- -Simplified Recovery System - Series 1 and 2
- -Simplified Solution System - Series 1 and 2
- Brush Drive Assembly
- Chassis Protection Assembly
- Drain Hose with Switch Assembly
- Drainage Pump Assembly - series 3
- Driver Seat Assembly
- Electrical Components Assembly - series 1 and series 2
- Electrical Diagram
- Electrical Panel Assembly
- Electrical Parts and Connections Assembly
- Encoder Assembly
- Flashlight Set Assembly
- Lower Drive Assembly
- Lower Tank Assembly
- Magnetic Valve Assembly
- Pedal Assembly
- Protection Roof Assembly
- Pump and Hose Assembly - series 1 and series 2
- Spotlight Set Assembly
- Squeegee Assembly
- Squeegee Lift Assembly
- Tool Lowering Assembly
- Upper Drive Assembly
- Upper Tank Assembly
Manuals
- TASKI swingo 4000/5000 Service Manual
- TASKI swingo 4000/5000 Service Tool Manual
- TASKI swingo 4000/5000 User Manual
Bulletins
- Batteries Information_2017
- Battery Cable Connection_2013
- Brush Housing Change_2016
- Brush Lifting Adjustment_2016
- Cable Harness Enhancement_2015
- Charger with Communication Interface_2017
- Chassis Modification_2016
- Distance Piece Charging Plug_2015
- Fresh Water Sensor Positioning_2012
- Harmonisation Seat_2013
- Implementation of New Magnetic Valve 06E_2022
- Intellidose Electronics Revision_2017
- IntelliSpray Introduction and Service_2020
- Key Switch_2017
- Lithium Curve and Error Correction_2020
- Magnetic Valve_2018
- Marking of Connection_2015
- New Angle Nipple with Check Valve_2015
- New Brush Lowering Motor_2013
- New Brush Pressure Sensor_2017
- New Bumper Wheels_2003
- New Ceramic Axle_2016
- New Drain Hose_2014
- New Electronics Installation_2016
- New Electronics Introductions_2016
- New Electronics_2013
- New Firmware v1.10_2016
- New Firmware v1.13_2012
- New Firmware v1.14_2012
- New Firmware v1.15_2013
- New Firmware v1.18_2013
- New Firmware v1.18_2018
- New Firmware v1.18_34E_2013
- New Firmware v1.19_2014
- New Firmware v1.23_2014
- New Firmware v1.24_2015
- New Firmware v1.24_2020
- New Firmware v1.25_2016
- New Firmware v1.26 series 01_2019
- New Key_2013
- New Pump_2014
- New Pump_2016
- New Suction Hose_2016
- New Wastewater Sensor_2016
- Optional Squeegee Rubber Blades 2019
- Optional Wheels_2015
- Overheating Outage_2013
- Power Relay Installation_2013
- Pump Fuse_2013
- Pump_2014
- Seating Service Access_2016
- Service Tool Update v6.04_2012
- Service Tool Update v7.04_2013
- Service Tool Update v7.09_2014
- Service Tool v8.01_2015
- Service Tool version 8.30_2021
- Squeegee Bracket_2014
- Squeegee Modification_2012
- Steering Unit Sensor_2017
- Swingo 5000 - Lithium Battery Installation
- TASKI Service Tool Version 8.12_2016
- TASKI swingo 4000/5000 Fresh and Waste Water Adjustment
- TASKI swingo 4000/5000 New Pump Mounting Instructions
- TASKI swingo 4000/5000 Service Light Reset
- TASKI swingo 4000/5000 Service Menu Page 1 Display
- TASKI swingo 4000/5000 Setting Thottle Value
- TASKI swingo 750B/755B/855B/1250B/1255B/1650B/2500/3500/4000/5000 JFit Installation
- Vacuum Motor Harmonisation_2008
Videos
- TASKI Power/Control Board Testing Video
- TASKI swingo 4000/5000 Incorrect Solution Flow Video
- TASKI swingo 4000/5000 Poor or No Pickup Video
- TASKI swingo 4000/5000 Service Introduction Video
- TASKI swingo 4000/5000 Service Tool and Firmware Video
Repair Guides
- Check the Drive Board Voltage for the Primary Components
- Removing Seat to Access Power Board
- Replace the Squeegee Blades
- Replace the Vacuum Motor
- Clean/Replace the Solution Filter
- Fresh Water Sensor Errors (Empty Solution Tank)
- Pump Fuse Install
- Replace Pump
- Test Pump Voltage at Power Board
