Sightly smaller- but no less powerful- is the Wrangler 27 F/B. Designed to handle areas from 30,000 to 70,000 square feet, this scrubber matched the Wrangler 33 in performance and durability.
The wide-area cleaning ability of the Wrangler F/B makes it cost-saver for schools, hospitals, factories, superstores or other facilities with large, open areas.
SCRUBBING PATH 27 in. (69 cm)
VACUUM MOTOR
Type 3-stage, bypass, tangential discharge
Voltage 36V
HP 1 HP
CFM 72 (2 m3) @ 1.5 in. (3.8 cm)
CLOSED WATERLIFT 60 in. (152 cm)
POWER SUPPLY 36V.; 6 — 6V. batteries; 220 AH, 250 AH, 325 AH
BRUSH DRIVE MOTORS
Type 2 permanent magnet, gear motors
RPM 200 RPM, contra-rotating
HP .75 HP
DRIVE Roller chain and sprockets
DRIVE MOTOR
Type Permanent magnet
Voltage 36V
HP.5 HP
DRIVE SPEED Variable Forward 0-240 ft. (0-73 m) Reverse 0-170 ft. (0-52 m)
DRIVE WHEEL 8 in. (20 cm) dia. x 4 in. (10 cm) tread; non-marking rubber; slip resistant with slip grip tread
BRUSH/ PAD SPEED 200 RPM
PAD DRIVERS 7 2 14 in. (36 cm) poly back tufted with cup
BRUSH PRESSURE 75 lbs. (34 kg) floating 135 lbs. (61 kg) medium 175 lbs. (80 kg) heavy
CLEANING RATE PER HOUR
Optimum 30,000 ft.2(2,790 m2 )
Unobstructed 18,000 ft.2(1,674 m2)
Obstructed 13,500 ft.2(1,256 m2)
Cleaning Rates:
Optimum: Full speed, with a 2 in. (5 cm) overlap.
Unobstructed: Includes time for turnaround, tank empty/refill and operator variation.
Obstructed: Includes time for turnaround, tank empty/refill, operator variation and operation around obstacles.
CASTERS Two 4 in. (10 cm) dia. x 2 in. (5 cm) mounted on rubber shock absorber
SOLUTION CONTROL Manual pull at control panel via rigid bars; adjustable flow, forged brass valve, celcon rotor, O-ring seal
SOUND LEVEL 74 dbA @ operator
CONSTRUCTION Rotocast polyethylene tanks/body, mounted on steel frame
TANK CAPACITIES
Solution 26 gal. (98 l.)
Recovery 32 gal. (121 l.)
SQUEEGEE 32 in. (81 cm)
DIMENSIONS
Length 61 in. (156 cm)
Skirt Width 29 in. (74 cm)
Body Width 25 in. (64 cm)
Height 39 in. (99 cm)
WEIGHT Machine Only 450 lbs. (204 kg)
SHIPPING WEIGHT Machine Only 521 lbs. (237 kg)
WEIGHT Batteries Only Each 220 AH 62 lbs. (28 kg) 250 AH 71 lbs. (32 kg) 325 AH 104 lbs. (47 kg)
SHIPPING WEIGHT Batteries Only 220 AH 402 lbs. (183 kg) 250 AH 456 lbs. (207 kg) 325 AH 654 lbs. (297 kg)

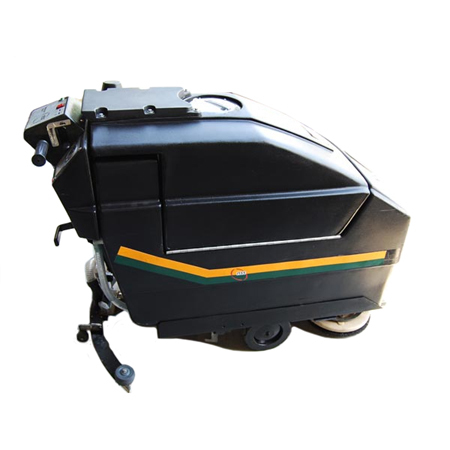

NSS Enterprises WRANGLER 27 F/B Parts and Support
the wrangler f/b automatic scrubber thoroughly scrub and dry the floow in one pass to save you time and money. these rugged yet maneuverable autoscrubbers are unsurpassed in cleaning power, performance and durability.
sightly smaller- but no less powerful- is the wrangler 27 f/b. designed to handle areas from 30,000 to 70,000 square feet, this scrubber matched the wrangler 33 in performance and durability.
the wide-area cleaning ability of the wrangler f/b makes it cost-saver for schools, hospitals, factories, superstores or other facilities with large, open areas.
scrubbing path 27 in. (69 cm)
vacuum motor
type 3-stage, bypass, tangential discharge
voltage 36v
hp 1 hp
cfm 72 (2 m3) @ 1.5 in. (3.8 cm)
closed waterlift 60 in. (152 cm)
power supply 36v.; 6 — 6v. batteries; 220 ah, 250 ah, 325 ah
brush drive motors
type 2 permanent magnet, gear motors
rpm 200 rpm, contra-rotating
hp .75 hp
drive roller chain and sprockets
drive motor
type permanent magnet
voltage 36v
hp.5 hp
drive speed variable forward 0-240 ft. (0-73 m) reverse 0-170 ft. (0-52 m)
drive wheel 8 in. (20 cm) dia. x 4 in. (10 cm) tread; non-marking rubber; slip resistant with slip grip tread
brush/ pad speed 200 rpm
pad drivers 7 2 14 in. (36 cm) poly back tufted with cup
brush pressure 75 lbs. (34 kg) floating 135 lbs. (61 kg) medium 175 lbs. (80 kg) heavy
cleaning rate per hour
optimum 30,000 ft.2(2,790 m2 )
unobstructed 18,000 ft.2(1,674 m2)
obstructed 13,500 ft.2(1,256 m2)
cleaning rates:
optimum: full speed, with a 2 in. (5 cm) overlap.
unobstructed: includes time for turnaround, tank empty/refill and operator variation.
obstructed: includes time for turnaround, tank empty/refill, operator variation and operation around obstacles.
casters two 4 in. (10 cm) dia. x 2 in. (5 cm) mounted on rubber shock absorber
solution control manual pull at control panel via rigid bars; adjustable flow, forged brass valve, celcon rotor, o-ring seal
sound level 74 dba @ operator
construction rotocast polyethylene tanks/body, mounted on steel frame
tank capacities
solution 26 gal. (98 l.)
recovery 32 gal. (121 l.)
squeegee 32 in. (81 cm)
dimensions
length 61 in. (156 cm)
skirt width 29 in. (74 cm)
body width 25 in. (64 cm)
height 39 in. (99 cm)
weight machine only 450 lbs. (204 kg)
shipping weight machine only 521 lbs. (237 kg)
weight batteries only each 220 ah 62 lbs. (28 kg) 250 ah 71 lbs. (32 kg) 325 ah 104 lbs. (47 kg)
shipping weight batteries only 220 ah 402 lbs. (183 kg) 250 ah 456 lbs. (207 kg) 325 ah 654 lbs. (297 kg)
sightly smaller- but no less powerful- is the wrangler 27 f/b. designed to handle areas from 30,000 to 70,000 square feet, this scrubber matched the wrangler 33 in performance and durability.
the wide-area cleaning ability of the wrangler f/b makes it cost-saver for schools, hospitals, factories, superstores or other facilities with large, open areas.
scrubbing path 27 in. (69 cm)
vacuum motor
type 3-stage, bypass, tangential discharge
voltage 36v
hp 1 hp
cfm 72 (2 m3) @ 1.5 in. (3.8 cm)
closed waterlift 60 in. (152 cm)
power supply 36v.; 6 — 6v. batteries; 220 ah, 250 ah, 325 ah
brush drive motors
type 2 permanent magnet, gear motors
rpm 200 rpm, contra-rotating
hp .75 hp
drive roller chain and sprockets
drive motor
type permanent magnet
voltage 36v
hp.5 hp
drive speed variable forward 0-240 ft. (0-73 m) reverse 0-170 ft. (0-52 m)
drive wheel 8 in. (20 cm) dia. x 4 in. (10 cm) tread; non-marking rubber; slip resistant with slip grip tread
brush/ pad speed 200 rpm
pad drivers 7 2 14 in. (36 cm) poly back tufted with cup
brush pressure 75 lbs. (34 kg) floating 135 lbs. (61 kg) medium 175 lbs. (80 kg) heavy
cleaning rate per hour
optimum 30,000 ft.2(2,790 m2 )
unobstructed 18,000 ft.2(1,674 m2)
obstructed 13,500 ft.2(1,256 m2)
cleaning rates:
optimum: full speed, with a 2 in. (5 cm) overlap.
unobstructed: includes time for turnaround, tank empty/refill and operator variation.
obstructed: includes time for turnaround, tank empty/refill, operator variation and operation around obstacles.
casters two 4 in. (10 cm) dia. x 2 in. (5 cm) mounted on rubber shock absorber
solution control manual pull at control panel via rigid bars; adjustable flow, forged brass valve, celcon rotor, o-ring seal
sound level 74 dba @ operator
construction rotocast polyethylene tanks/body, mounted on steel frame
tank capacities
solution 26 gal. (98 l.)
recovery 32 gal. (121 l.)
squeegee 32 in. (81 cm)
dimensions
length 61 in. (156 cm)
skirt width 29 in. (74 cm)
body width 25 in. (64 cm)
height 39 in. (99 cm)
weight machine only 450 lbs. (204 kg)
shipping weight machine only 521 lbs. (237 kg)
weight batteries only each 220 ah 62 lbs. (28 kg) 250 ah 71 lbs. (32 kg) 325 ah 104 lbs. (47 kg)
shipping weight batteries only 220 ah 402 lbs. (183 kg) 250 ah 456 lbs. (207 kg) 325 ah 654 lbs. (297 kg)
