Casters: (2) 4 in/10 cm diameter x 1-1/2 in 3.8 cm
Drive Wheel:(2) 8 in /20 cm diameter x 2 in/ 5 cm
Product Height:39 in / 99.06 cm
Product Length:50 in /127 cm
Product Width:28 in /71.12 cm
Product Weight: 375 lb w/o batteries /170.1 kg 600 lb with batteries /272.16 kg
Cleaning Rate Per Hour: (excludes dump/fill cycles) 26,000 ft2 /2415.4 m2 per hour
Cleaning Width: 25-1/8 in / 63.80 cm
Battery Amp Hour Rating:215 A
Battery Count: 2
Battery Description:12V, deep cycle lead acid batteries with rope
handles
Battery Run Time Per Charge:Up to 4-3/4 hours
Charging Unit Description:20 A automatic charge
Brush/Pad Diameter: (2) 13 in / 33.02 cm
Motor Amps: 15 A
Motor Hp:.75 hp
Motor Volts:24 V
Motor RPM:220 rpm
Brush/Pad Pressure: Variable; 40 - 150 lb / 18-68 kg
Ten Foot Rating: 70 dBa
Five Foot Rating: 73 dBa
Operator’s Position Rating: 75 dBa
Max Sol. Flow Rate- Conventional: .75 gpm/ .284 L/min
Sol. Flow Rate - FaST™: .15 gpm / .04 L/min
Solution Capacity: 17 gal / 64.35 L
Recovery Capacity:17 gal /64.35 L
Squeegee Width: 33 in /84 cm
Power Consumption Amps: 45 A nominal
Transport Drive System
Description:.5 hp trans axle
Speed Control System:Variable 0 - 230 feet per minute
Airflow: 69 cfm / 1.95 m3
Waterlift: 68 in / 172.72 cm
Vacuum Motor Type: 5.7 in /14.5 cm diameter; tangential discharge
Vacuum Motor Hp: 3/4 hp, 3 A stage
Vacuum Motor Amps: 21 A
Vacuum Motor Stages: 3 stage
Vacuum Motor Volts: 24 V
Vacuum Motor Watts: 560 watts

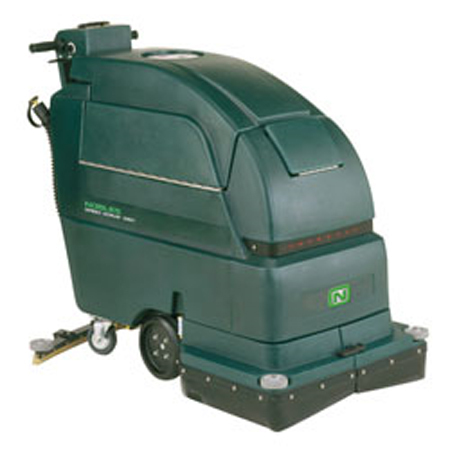

Nobles SPEEDSCRUB 2601 Parts and Support
chassis construction:rotationally-molded polyethylene
casters: (2) 4 in/10 cm diameter x 1-1/2 in 3.8 cm
drive wheel:(2) 8 in /20 cm diameter x 2 in/ 5 cm
product height:39 in / 99.06 cm
product length:50 in /127 cm
product width:28 in /71.12 cm
product weight: 375 lb w/o batteries /170.1 kg 600 lb with batteries /272.16 kg
cleaning rate per hour: (excludes dump/fill cycles) 26,000 ft2 /2415.4 m2 per hour
cleaning width: 25-1/8 in / 63.80 cm
battery amp hour rating:215 a
battery count: 2
battery description:12v, deep cycle lead acid batteries with rope
handles
battery run time per charge:up to 4-3/4 hours
charging unit description:20 a automatic charge
brush/pad diameter: (2) 13 in / 33.02 cm
motor amps: 15 a
motor hp:.75 hp
motor volts:24 v
motor rpm:220 rpm
brush/pad pressure: variable; 40 - 150 lb / 18-68 kg
ten foot rating: 70 dba
five foot rating: 73 dba
operator’s position rating: 75 dba
max sol. flow rate- conventional: .75 gpm/ .284 l/min
sol. flow rate - fast™: .15 gpm / .04 l/min
solution capacity: 17 gal / 64.35 l
recovery capacity:17 gal /64.35 l
squeegee width: 33 in /84 cm
power consumption amps: 45 a nominal
transport drive system
description:.5 hp trans axle
speed control system:variable 0 - 230 feet per minute
airflow: 69 cfm / 1.95 m3
waterlift: 68 in / 172.72 cm
vacuum motor type: 5.7 in /14.5 cm diameter; tangential discharge
vacuum motor hp: 3/4 hp, 3 a stage
vacuum motor amps: 21 a
vacuum motor stages: 3 stage
vacuum motor volts: 24 v
vacuum motor watts: 560 watts
casters: (2) 4 in/10 cm diameter x 1-1/2 in 3.8 cm
drive wheel:(2) 8 in /20 cm diameter x 2 in/ 5 cm
product height:39 in / 99.06 cm
product length:50 in /127 cm
product width:28 in /71.12 cm
product weight: 375 lb w/o batteries /170.1 kg 600 lb with batteries /272.16 kg
cleaning rate per hour: (excludes dump/fill cycles) 26,000 ft2 /2415.4 m2 per hour
cleaning width: 25-1/8 in / 63.80 cm
battery amp hour rating:215 a
battery count: 2
battery description:12v, deep cycle lead acid batteries with rope
handles
battery run time per charge:up to 4-3/4 hours
charging unit description:20 a automatic charge
brush/pad diameter: (2) 13 in / 33.02 cm
motor amps: 15 a
motor hp:.75 hp
motor volts:24 v
motor rpm:220 rpm
brush/pad pressure: variable; 40 - 150 lb / 18-68 kg
ten foot rating: 70 dba
five foot rating: 73 dba
operator’s position rating: 75 dba
max sol. flow rate- conventional: .75 gpm/ .284 l/min
sol. flow rate - fast™: .15 gpm / .04 l/min
solution capacity: 17 gal / 64.35 l
recovery capacity:17 gal /64.35 l
squeegee width: 33 in /84 cm
power consumption amps: 45 a nominal
transport drive system
description:.5 hp trans axle
speed control system:variable 0 - 230 feet per minute
airflow: 69 cfm / 1.95 m3
waterlift: 68 in / 172.72 cm
vacuum motor type: 5.7 in /14.5 cm diameter; tangential discharge
vacuum motor hp: 3/4 hp, 3 a stage
vacuum motor amps: 21 a
vacuum motor stages: 3 stage
vacuum motor volts: 24 v
vacuum motor watts: 560 watts
