Nilfisk-Advance CS7010

Interested in purchasing equipment?

Contact our Experts!

Need help finding a part?

Ask our Team! The Nilfisk-Advance CS7010 is a battery-powered, ride-on sweeper-scrubber. Rest assured that the CS7010 can return to the refueling station with the backup battery power supply. Save on water and chemicals with the built-in SmartFlow technology. Operators can control the CS7010 with ease thanks to intuitive, OneTouch controls.

Working width, sweeping system: 61 in (154 cm)
Main broom dimensions: 36 x 12.2 in (90 x 31 cm)
Production rate per hour, sweeping system: 146,400 sq ft (13,600 sq m)
Hopper capacity: 52.3gal (198L)
DustGuard tank capacity: 29gal (110L)
Working width, scrubbing system: 48 in (122 cm)
Disc size: 17 in (43 cm) (3)
Production rate per hour, scrubbing system: 118,600 sq ft (11,000 sq m)
Scrub pressure, up to: 400lbs (182 kg)
Solution tank capacity: 75gal (285L)
Recovery tank capacity: 75gal (285L)
Vacuum waterlift: 65 in (165 cm)
System voltage: 36 V
Propel speed, transport: 5.5 mph (8.9 kph)
Propel speed, sweeping/scrubbing: 3.5 mph (5.6 kph)
Battery runtime: 5.4 h
Dimensions, Length x Width x Height: 103 x 48 x 59 in (262 x 122 x 150 cm)
Height with standard overhead guard: 82 in (208 cm)
Height with low clearance overhead guard: 79 in (201 cm)
Weight, empty: 4,682lbs (2,124 kg)
Sound level: 72 dB(A)

Parts & Support
CS7010

Interested in purchasing equipment?

Contact our Experts

Need help finding a part?

Ask our Team!
The Nilfisk-Advance CS7010 is a battery-powered, ride-on sweeper-scrubber. Rest assured that the CS7010 can return to the refueling station with the backup battery power supply. Save on water and chemicals with the built-in SmartFlow technology. Operators can control the CS7010 with ease thanks to intuitive, OneTouch controls.

Working width, sweeping system: 61 in (154 cm)
Main broom dimensions: 36 x 12.2 in (90 x 31 cm)
Production rate per hour, sweeping system: 146,400 sq ft (13,600 sq m)
Hopper capacity: 52.3gal (198L)
DustGuard tank capacity: 29gal (110L)
Working width, scrubbing system: 48 in (122 cm)
Disc size: 17 in (43 cm) (3)
Production rate per hour, scrubbing system: 118,600 sq ft (11,000 sq m)
Scrub pressure, up to: 400lbs (182 kg)
Solution tank capacity: 75gal (285L)
Recovery tank capacity: 75gal (285L)
Vacuum waterlift: 65 in (165 cm)
System voltage: 36 V
Propel speed, transport: 5.5 mph (8.9 kph)
Propel speed, sweeping/scrubbing: 3.5 mph (5.6 kph)
Battery runtime: 5.4 h
Dimensions, Length x Width x Height: 103 x 48 x 59 in (262 x 122 x 150 cm)
Height with standard overhead guard: 82 in (208 cm)
Height with low clearance overhead guard: 79 in (201 cm)
Weight, empty: 4,682lbs (2,124 kg)
Sound level: 72 dB(A)

Nilfisk-Advance CS7010 Parts and Support

The Nilfisk-Advance CS7010 is a battery-powered, ride-on sweeper-scrubber. Rest assured that the CS7010 can return to the refueling station with the backup battery power supply. Save on water and chemicals with the built-in SmartFlow technology. Operators can control the CS7010 with ease thanks to intuitive, OneTouch controls.

Working width, sweeping system: 61 in (154 cm)
Main broom dimensions: 36 x 12.2 in (90 x 31 cm)
Production rate per hour, sweeping system: 146,400 sq ft (13,600 sq m)
Hopper capacity: 52.3gal (198L)
DustGuard tank capacity: 29gal (110L)
Working width, scrubbing system: 48 in (122 cm)
Disc size: 17 in (43 cm) (3)
Production rate per hour, scrubbing system: 118,600 sq ft (11,000 sq m)
Scrub pressure, up to: 400lbs (182 kg)
Solution tank capacity: 75gal (285L)
Recovery tank capacity: 75gal (285L)
Vacuum waterlift: 65 in (165 cm)
System voltage: 36 V
Propel speed, transport: 5.5 mph (8.9 kph)
Propel speed, sweeping/scrubbing: 3.5 mph (5.6 kph)
Battery runtime: 5.4 h
Dimensions, Length x Width x Height: 103 x 48 x 59 in (262 x 122 x 150 cm)
Height with standard overhead guard: 82 in (208 cm)
Height with low clearance overhead guard: 79 in (201 cm)
Weight, empty: 4,682lbs (2,124 kg)
Sound level: 72 dB(A)

Parts

  • Product
  • Qty in Cart
  • Quantity
  • Price
  • Subtotal
  • Non-OEM
    - 5amp circuit breaker 991-1628

    5amp circuit breaker 991-1628

    $13.76
    Style B (prongs aligned with breaker) circuit breaker fits Nilfisk-Advance Convertamatic 24, 26, 28, Warrior 28, 32, 34RST, Adhancer and Advolution 2710.Specifications:Weight: 0.2 poundsType: Circuit BreakerMatches:172-8492272-220831525556315255Commonly...
    $13.76
    Qty in Cart: 0
    Price:
    $13.76
    Subtotal:
  • OEM
    56510891 - Hose fitting kit 372-1471

    Hose fitting kit 372-1471

    $137.90
    $137.90
    Qty in Cart: 0
    Price:
    $137.90
    Subtotal:
  • OEM

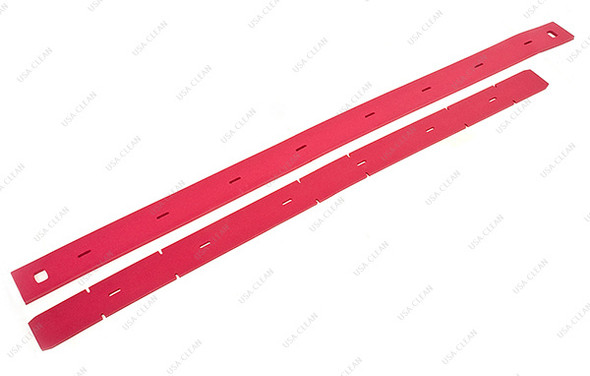

    56510371 - Squeegee blade kit gum rubber (red) 372-1145

    Squeegee blade kit gum rubber (red) 372-1145

    $209.36
    Matches:5103715651037169223990Commonly purchased together:May fit on these models - select model and diagram to confirmNilfisk-Advance CS7010Nilfisk-Advance CS 7000
    $209.36
    Qty in Cart: 0
    Price:
    $209.36
    Subtotal:
  • ships same day
    Non-OEM
    - 12V 105Ah wet battery (SNSR) 162-0011

    12V 105Ah wet battery (SNSR) 162-0011

    $291.50
    Do you also need battery jumper cables? If so, add part number 998-0010.Specifications:Length: 12.63 in Width: 6.75 in Height: 9.38 in Weight: 58 poundsAmp Hours: 105Voltage: 12Chemical Makeup:...
    $291.50
    Qty in Cart: 0
    Price:
    $291.50
    Subtotal:
  • OEM

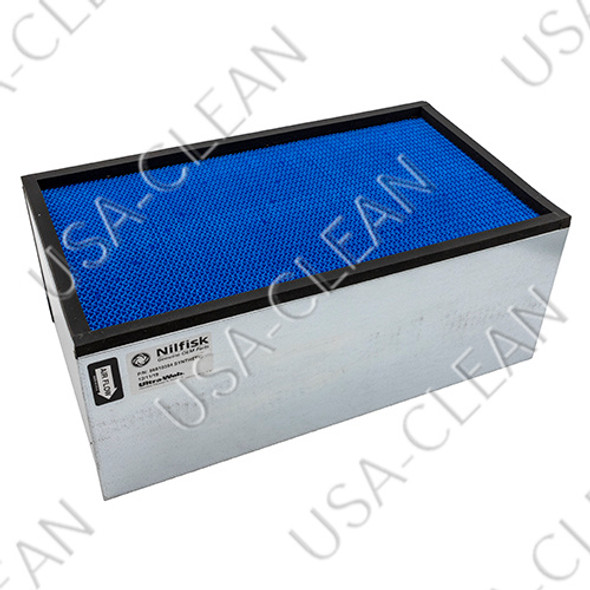

    56413195 - Filter 272-9981

    Filter 272-9981

    $15.26
    $15.26
    Qty in Cart: 0
    Price:
    $15.26
    Subtotal:
  • OEM
    56601118 - Brush plate 272-9885

    Brush plate 272-9885

    $32.69
    $32.69
    Qty in Cart: 0
    Price:
    $32.69
    Subtotal:
  • OEM
    369675 - Female coupler 272-7275

    Female coupler 272-7275

    $40.08
    $40.08
    Qty in Cart: 0
    Price:
    $40.08
    Subtotal:
  • OEM
    56366463 - Spring retainer 272-5779

    Spring retainer 272-5779

    $12.31
    $12.31
    Qty in Cart: 0
    Price:
    $12.31
    Subtotal:
  • OEM

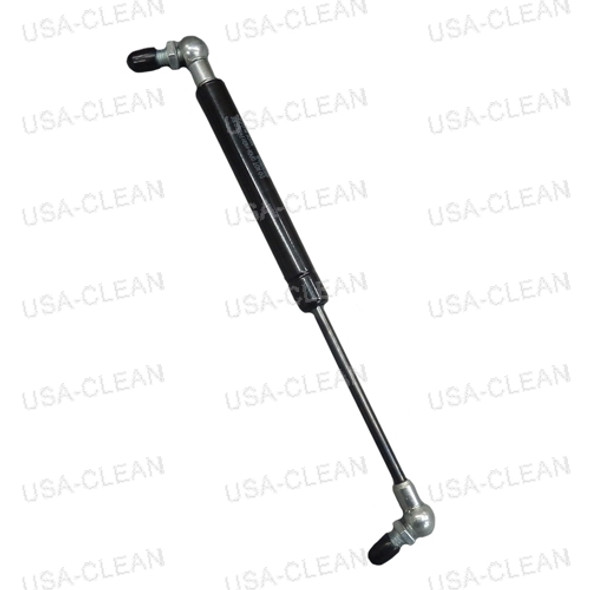

    56314206 - Gas spring 272-0420

    Gas spring 272-0420

    $90.43
    $90.43
    Qty in Cart: 0
    Price:
    $90.43
    Subtotal:
