System for Removing the Scrub Brush. This Allows Operators to Replace a Worn Brush in a Matter of Seconds.

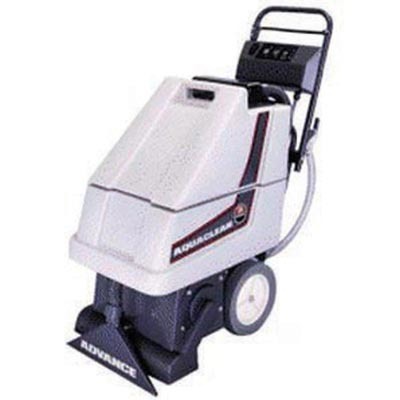

The Advance AquaClean® has become one of the most popular extractors on the market. It applies cleaning solution, scrubs carpet fibers to loosen dirt, then vacuums away the dirty solution, leaving carpets nearly dry and ready for use.
Compact and lightweight, the AquaClean® is extremely port-able, and
gets into congested areas where it’s difficult to clean. A variety of hand tools are available for cleaning stairs, upholstery or other hard-to-reach places.
An optional hard-floor cleaning kit adds versatility to the AquaClean®.
Just switch to the vacuum squeegee attachment and you’re ready to
go. No tools required.Scrub smooth or textured floors, terrazzo or
concrete.The cylindrical brush works great for cleaning grout
lines in tile.
Electronic touch controls make operation simple and easy, adding to
the productivity of the Advance AquaClean®. Available in 12, 15 and
18 inch (30.5, 38 and 46 cm) size cleaning paths, you can choose the
model to fit your cleaning needs.
Solution Tank: 8 gal (30 L) polyethylene
Recovery Tank: 6 gal (22 L) polyethylene
Solution Pump: Diaphragm type, 0.7 gpm (2.65 L) mfr rated at 60 psi (4 bar), 30 psi (2 bar) operating rate
Solution: Manual control cable
Vacuum Motor: 120 v/60 Hz 1.5 hp, 3-stage, bypass, 117 in (297 cm) sealed waterlift, 95 cfm (2688 L/min) at 1.5 in (38 cm) orifice
Brush Motor: 120 v/60 Hz 0.25 hp
Brush: Removable 15 in long, (38 cm) x 3 in (8 cm) diameter , turns at 1,000 rpm
Vacuum Shoe: Removable, stainless steel, 18 in (46 cm)
Squeegee (Optional): Removable 21 in (53 cm)
Power Cable: 40 ft (12 m) long, 14/3 wire, vinyl covered, detachable
Length: 30 in (76 cm) w/handle upright
Width: 19 in (48 cm)
Height: 42 in (114 cm) w/handle upright
Net Weight: 105 lb (47.7 kg)
Shipping Weight: 120 lb (54.5 kg)
Nilfisk-Advance AQUACLEAN 15 Parts and Support
The AquaClean® Design Uses a “No-Tools-Required” Quick Change
System for Removing the Scrub Brush. This Allows Operators to Replace a Worn Brush in a Matter of Seconds.
The Advance AquaClean® has become one of the most popular extractors on the market. It applies cleaning solution, scrubs carpet fibers to loosen dirt, then vacuums away the dirty solution, leaving carpets nearly dry and ready for use.
Compact and lightweight, the AquaClean® is extremely port-able, and
gets into congested areas where it’s difficult to clean. A variety of hand tools are available for cleaning stairs, upholstery or other hard-to-reach places.
An optional hard-floor cleaning kit adds versatility to the AquaClean®.
Just switch to the vacuum squeegee attachment and you’re ready to
go. No tools required.Scrub smooth or textured floors, terrazzo or
concrete.The cylindrical brush works great for cleaning grout
lines in tile.
Electronic touch controls make operation simple and easy, adding to
the productivity of the Advance AquaClean®. Available in 12, 15 and
18 inch (30.5, 38 and 46 cm) size cleaning paths, you can choose the
model to fit your cleaning needs.
Solution Tank: 8 gal (30 L) polyethylene
Recovery Tank: 6 gal (22 L) polyethylene
Solution Pump: Diaphragm type, 0.7 gpm (2.65 L) mfr rated at 60 psi (4 bar), 30 psi (2 bar) operating rate
Solution: Manual control cable
Vacuum Motor: 120 v/60 Hz 1.5 hp, 3-stage, bypass, 117 in (297 cm) sealed waterlift, 95 cfm (2688 L/min) at 1.5 in (38 cm) orifice
Brush Motor: 120 v/60 Hz 0.25 hp
Brush: Removable 15 in long, (38 cm) x 3 in (8 cm) diameter , turns at 1,000 rpm
Vacuum Shoe: Removable, stainless steel, 18 in (46 cm)
Squeegee (Optional): Removable 21 in (53 cm)
Power Cable: 40 ft (12 m) long, 14/3 wire, vinyl covered, detachable
Length: 30 in (76 cm) w/handle upright
Width: 19 in (48 cm)
Height: 42 in (114 cm) w/handle upright
Net Weight: 105 lb (47.7 kg)
Shipping Weight: 120 lb (54.5 kg)
System for Removing the Scrub Brush. This Allows Operators to Replace a Worn Brush in a Matter of Seconds.
The Advance AquaClean® has become one of the most popular extractors on the market. It applies cleaning solution, scrubs carpet fibers to loosen dirt, then vacuums away the dirty solution, leaving carpets nearly dry and ready for use.
Compact and lightweight, the AquaClean® is extremely port-able, and
gets into congested areas where it’s difficult to clean. A variety of hand tools are available for cleaning stairs, upholstery or other hard-to-reach places.
An optional hard-floor cleaning kit adds versatility to the AquaClean®.
Just switch to the vacuum squeegee attachment and you’re ready to
go. No tools required.Scrub smooth or textured floors, terrazzo or
concrete.The cylindrical brush works great for cleaning grout
lines in tile.
Electronic touch controls make operation simple and easy, adding to
the productivity of the Advance AquaClean®. Available in 12, 15 and
18 inch (30.5, 38 and 46 cm) size cleaning paths, you can choose the
model to fit your cleaning needs.
Solution Tank: 8 gal (30 L) polyethylene
Recovery Tank: 6 gal (22 L) polyethylene
Solution Pump: Diaphragm type, 0.7 gpm (2.65 L) mfr rated at 60 psi (4 bar), 30 psi (2 bar) operating rate
Solution: Manual control cable
Vacuum Motor: 120 v/60 Hz 1.5 hp, 3-stage, bypass, 117 in (297 cm) sealed waterlift, 95 cfm (2688 L/min) at 1.5 in (38 cm) orifice
Brush Motor: 120 v/60 Hz 0.25 hp
Brush: Removable 15 in long, (38 cm) x 3 in (8 cm) diameter , turns at 1,000 rpm
Vacuum Shoe: Removable, stainless steel, 18 in (46 cm)
Squeegee (Optional): Removable 21 in (53 cm)
Power Cable: 40 ft (12 m) long, 14/3 wire, vinyl covered, detachable
Length: 30 in (76 cm) w/handle upright
Width: 19 in (48 cm)
Height: 42 in (114 cm) w/handle upright
Net Weight: 105 lb (47.7 kg)
Shipping Weight: 120 lb (54.5 kg)
Parts
Can't find what you need? Click here or call 1-800-USA-CLEAN
In the market for a new machine? You can find quality new and reconditioned floor care equipment at one of our vendor partners:
Need a professional? We offer service both virtually and in person.
Learn more
Diagrams
- View all diagrams
- - Extractor Fit All Parts
- - Frequently Replaced Parts
- - Simplified Recovery System
- - Simplified Solution System
- 120V Harness After SN 1090268
- 120V Harness Before SN 1090269
- 120V Ladder Diagram After SN 1090268
- 120V Ladder Diagram Before SN 1090269
- Brush System
- Chassis Assembly
- Console Assembly
- Decal System
- Flow Diverter Assembly
- Lower Handle Assembly
- Optional Carpet Tools
- Optional Hard Floor Kits
- Recovery System
- Solution System
- Squeegee Assembly
- Squeegee Mount Assembly
- Upper Handle Assembly
