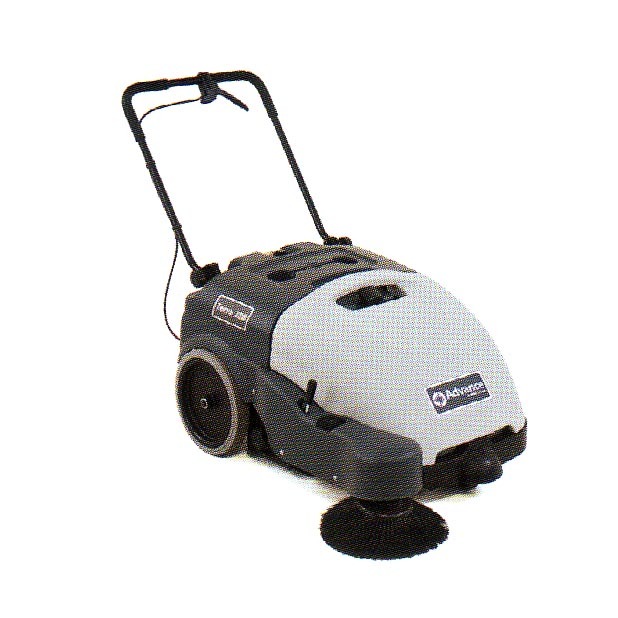

The performance of Advance's new Terra 28B walk-behind sweeper leaves wide-area vacuums in the dust. It's 28 inch wide sweep path handles carpet with 2.5 times more productivity than a 28 inch wide-area vacuum (ISSA data). Plus, the Terra 28B's side broom eliminates the need for edge cleaning after sweeping. Compact and easy to maneuver for even your smallest operators, the Terra 28B us rated at just 59 dBA- making one of the quietest sweepers in the industry.
The Terra 28B features A.S.A.P. (All Surface All Purpose) sweeping technology. Sweeping efficiency is maximized as the operator transitions from one floor type to another without having to change the type of broom. Many times the transition can also be completed without having to adjust the broom height. THe A.S.A.P. technology is made possible with a unique main broom design coupled with a well engineered skirting system. The specially designed main broom contains dual rows of soft and coarse bristles that will pick up everything from dirt and sand, to paper and plastic pop bottles on carpet and hard floor. The long-running, maintenance-free gel battery comes standard on the Terra 28B, while an onboard battery charger allows the operator the flexibility to plug the sweeper in any place there is an outlet.
The Terra 28B was built with yoru green cleaning program in mind. The machine's extra quiet operation allows daytime cleaning and contributes to operator safety. The Terra 28B sweeper utilizes a durable polyester panel filter, and the most aggressive filter shaker in its class. Using the filter shaker on a regular basis gives you the most out of your filter. It minimizes filter changes while maximizing your indoor air quality. And since the Terra 28B is a bagless sweeper, there's no money spent on bags, or time spent changing them.
One-Touch operation, a streamlined design and superior maneuverability makes this sweeper easy for any operator to use. The Terra 28B sweeper features traction assist for fast and easy sweeping. Tools-free broom removal and adjustment makes for easy cleaning of the sweeper at the end of an operator's shift.
Working Width 28.3 in (72 cm)
Main Broom A.S.A.P. (All Surface All Purpose) broom designed for superior performance on all floor types.
Length 19.7 in (50 cm)
Diameter 7.9 in (20 cm)
Speed 335 rpm
Side Broom
Diameter 12.4 in (31.5 cm)
Speed 100 rpm
Max Productivity @ 2.5 mph (4 km/hr) 31,200 ft2 (2,900 m2 )
Hopper Capacity 2.1 ft3 (60 L)
Dust Filter Polyester panel filter, 10.8 ft2 (1 m2 )
Motors
Main broom/traction 0.3 hp (200 W)
Side broom 0.05 hp (40 W)
Vacuum fan 0.07 hp (50 W)
Power Source (1) 12 V, 87 Ah maintenance free gel battery
Max Speed 2.5 mph (4 km/hr)
Drive System Forward traction system capable of climbing 20% grade
Sound Level 59 dB A
Machine Weight (with battery) 171 lb (77.5 kg)
Battery Charger Standard onboard, 12 V, 6 amp
Dimensions Length = 39 in (99 cm) / Width = 31.5 in (80 cm) / Height = 24.4 in (62 cm)
