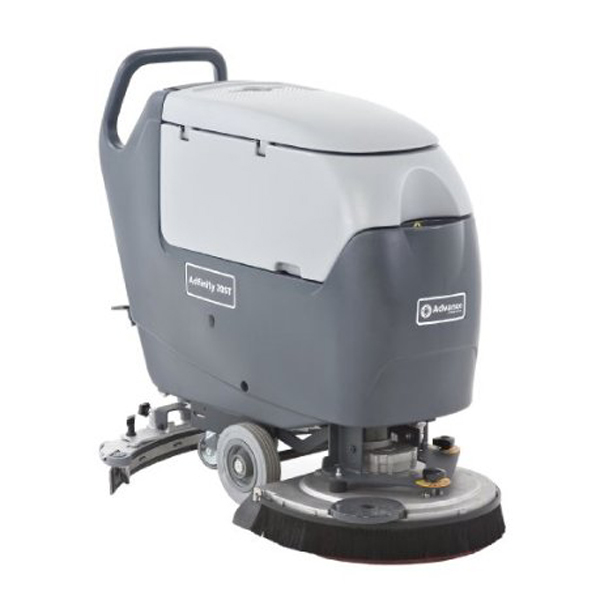

Adfinity™ 17ST and 20ST scrubbers from Advance give you the size,
durability and performance you need, at the price you demand. These
value-conscious, 10.5 gallon machines are available in 17 and 20 inch
cleaning paths.
Designed to increase cleaning productivity, the Adfinity ST models
feature multiple pad pressure settings to maximize run time, yet still
offer more pressure when cleaning highly-soiled areas. This line of
scrubbers also features Smart Solutions™ flow rate, which is engineered to provide the longest run time, over 1 hour, on the floor between dumping and refilling. This saves water and costly chemicals, while increasing productivity. The Adfinity ST scrubbers come standard with an onboard battery charger, which means fewer trips to the maintenance closet, more time on the floor.
One-Touch™ operation makes the Adfinity line of scrubbers easy to learn and easy to use. The ST models are pad assist machines and feature tools-free squeegee blade removal and rotation. The Adfinity ST scrubbers have a wide open recovery tank with removable lid to promote simple, sanitary cleaning.
Adfinity ST scrubbers are a great addition to any green cleaning program. Operating at a sound level of only 65 dB A, this machine is well below the requirements for sound level set by LEED-EB and GS-42 – making Adfinity ideal for daytime cleaning in any facility. With the environmentally-responsible Smart Solutions feature, water and chemical consumption is reduced. The Adfinity ST scrubbers are available with both wet and maintenance-free battery options.
Scrub Head Type: Disc
Scrub Path: 20 in (50.8 cm) pad holder standard brushes available
Max Productivity@ 3.0 mph (4.8 km/hr): 26,400 ft2 (2,453 m2)
Scrub Pressure
Variable (standard): Up to 57 lbs (26 kg)
Extra Pressure (option): Up to 70 lbs (32kg)
Scrub Head Speed: 153 rpm
Solution Flow Rates
Smart SolutionsTM: 0.15 gallons/min (0.55 liters/min)
variable up to: 0.3 gallons/min (1.1 liters/min)
Drive System: Pad/Brush assist – ALL MODELS
Squeegee Width: 29.9 in (75.9 cm) – ALL MODELS
Dimensions (w/o squeegee): L = 48.3 in (122 cm)W = 21.3 in (54 cm)H = 41.3 in (105 cm)
Weights
Without batteries: 196 lbs (89 kg)
With batteries: 314 lbs (142 kg)
Voltage: 24V – ALL MODELS
Power Source: (2) 12 V batteries (wet acid and maintenance free available) – ALL MODELS
Onboard Battery Charger: 24V wet/maintenance free compatible – ALL MODELS
Solution Tank: 10.5 gallons (40 liters) – ALL MODELS
Recovery Tank: 10.5 gallons (40 liters) – ALL MODELS
Scrub Motor: 0.65 hp (480 W) – ALL MODELS
Vacuum Motor: 0.44 hp (330 W) – ALL MODELS
Sound Level: 65.8 dB(A) at operator’s position – ALL MODELS
Approvals: ETL, CSA, CA -- ALL MODELS
Nilfisk-Advance ADFINITY 20ST Parts and Support
looking for a simple, cost-effective solution for your floors? the new
adfinity™ 17st and 20st scrubbers from advance give you the size,
durability and performance you need, at the price you demand. these
value-conscious, 10.5 gallon machines are available in 17 and 20 inch
cleaning paths.
designed to increase cleaning productivity, the adfinity st models
feature multiple pad pressure settings to maximize run time, yet still
offer more pressure when cleaning highly-soiled areas. this line of
scrubbers also features smart solutions™ flow rate, which is engineered to provide the longest run time, over 1 hour, on the floor between dumping and refilling. this saves water and costly chemicals, while increasing productivity. the adfinity st scrubbers come standard with an onboard battery charger, which means fewer trips to the maintenance closet, more time on the floor.
one-touch™ operation makes the adfinity line of scrubbers easy to learn and easy to use. the st models are pad assist machines and feature tools-free squeegee blade removal and rotation. the adfinity st scrubbers have a wide open recovery tank with removable lid to promote simple, sanitary cleaning.
adfinity st scrubbers are a great addition to any green cleaning program. operating at a sound level of only 65 db a, this machine is well below the requirements for sound level set by leed-eb and gs-42 – making adfinity ideal for daytime cleaning in any facility. with the environmentally-responsible smart solutions feature, water and chemical consumption is reduced. the adfinity st scrubbers are available with both wet and maintenance-free battery options.
scrub head type: disc
scrub path: 20 in (50.8 cm) pad holder standard brushes available
max productivity@ 3.0 mph (4.8 km/hr): 26,400 ft2 (2,453 m2)
scrub pressure
variable (standard): up to 57 lbs (26 kg)
extra pressure (option): up to 70 lbs (32kg)
scrub head speed: 153 rpm
solution flow rates
smart solutionstm: 0.15 gallons/min (0.55 liters/min)
variable up to: 0.3 gallons/min (1.1 liters/min)
drive system: pad/brush assist – all models
squeegee width: 29.9 in (75.9 cm) – all models
dimensions (w/o squeegee): l = 48.3 in (122 cm)w = 21.3 in (54 cm)h = 41.3 in (105 cm)
weights
without batteries: 196 lbs (89 kg)
with batteries: 314 lbs (142 kg)
voltage: 24v – all models
power source: (2) 12 v batteries (wet acid and maintenance free available) – all models
onboard battery charger: 24v wet/maintenance free compatible – all models
solution tank: 10.5 gallons (40 liters) – all models
recovery tank: 10.5 gallons (40 liters) – all models
scrub motor: 0.65 hp (480 w) – all models
vacuum motor: 0.44 hp (330 w) – all models
sound level: 65.8 db(a) at operator’s position – all models
approvals: etl, csa, ca -- all models
adfinity™ 17st and 20st scrubbers from advance give you the size,
durability and performance you need, at the price you demand. these
value-conscious, 10.5 gallon machines are available in 17 and 20 inch
cleaning paths.
designed to increase cleaning productivity, the adfinity st models
feature multiple pad pressure settings to maximize run time, yet still
offer more pressure when cleaning highly-soiled areas. this line of
scrubbers also features smart solutions™ flow rate, which is engineered to provide the longest run time, over 1 hour, on the floor between dumping and refilling. this saves water and costly chemicals, while increasing productivity. the adfinity st scrubbers come standard with an onboard battery charger, which means fewer trips to the maintenance closet, more time on the floor.
one-touch™ operation makes the adfinity line of scrubbers easy to learn and easy to use. the st models are pad assist machines and feature tools-free squeegee blade removal and rotation. the adfinity st scrubbers have a wide open recovery tank with removable lid to promote simple, sanitary cleaning.
adfinity st scrubbers are a great addition to any green cleaning program. operating at a sound level of only 65 db a, this machine is well below the requirements for sound level set by leed-eb and gs-42 – making adfinity ideal for daytime cleaning in any facility. with the environmentally-responsible smart solutions feature, water and chemical consumption is reduced. the adfinity st scrubbers are available with both wet and maintenance-free battery options.
scrub head type: disc
scrub path: 20 in (50.8 cm) pad holder standard brushes available
max productivity@ 3.0 mph (4.8 km/hr): 26,400 ft2 (2,453 m2)
scrub pressure
variable (standard): up to 57 lbs (26 kg)
extra pressure (option): up to 70 lbs (32kg)
scrub head speed: 153 rpm
solution flow rates
smart solutionstm: 0.15 gallons/min (0.55 liters/min)
variable up to: 0.3 gallons/min (1.1 liters/min)
drive system: pad/brush assist – all models
squeegee width: 29.9 in (75.9 cm) – all models
dimensions (w/o squeegee): l = 48.3 in (122 cm)w = 21.3 in (54 cm)h = 41.3 in (105 cm)
weights
without batteries: 196 lbs (89 kg)
with batteries: 314 lbs (142 kg)
voltage: 24v – all models
power source: (2) 12 v batteries (wet acid and maintenance free available) – all models
onboard battery charger: 24v wet/maintenance free compatible – all models
solution tank: 10.5 gallons (40 liters) – all models
recovery tank: 10.5 gallons (40 liters) – all models
scrub motor: 0.65 hp (480 w) – all models
vacuum motor: 0.44 hp (330 w) – all models
sound level: 65.8 db(a) at operator’s position – all models
approvals: etl, csa, ca -- all models
Parts
Can't find what you need? Click here or call 1-800-USA-CLEAN
In the market for a new machine? You can find quality new and reconditioned floor care equipment at one of our vendor partners:
Need a professional? We offer service both virtually and in person.
Learn more

Diagrams
- View all diagrams
- - Frequently Replaced Parts
- - Batteries
- - Chargers
- - Commonly Asked For Parts
- - Pad Holders
- - Pads
- -Know Your Machine
- -Simplified Electrical System
- -Simplified Recovery System
- -Simplified Solution System
- Batteries, Brushes and Charger
- Brush Deck Assembly
- Chassis Assembly
- Control Panel Assembly
- Electrical Components Assembly
- Extra Pressure Kit Assembly
- Recovery Tank Assembly
- Solution System
- Solution Tank Assembly
- Splash Guard Assembly
- Squeegee Assembly
- Wheel Assembly
- Wiring Diagram
Manuals
- Adfinity 20ST operator manual_2009
- Adfinity 20ST operator manual_2011
- Adfinity 20ST parts manual
- Adfinity 20ST service manual
Bulletins
- IS9096745000 - Splash Guard
- IS9096759000 - Extra Pressure Disc Deck
- IS9097731000 - Cage Float Holder Kit
- IS9098672000 - Squeegee Cable Installation
- IS9098861000 - Squeegee Cable Installation
- IS9100000337 - Antistatic Strap Installation
- TSB-FC-2013-111 - Premature Damage of the Drain Hose
- TSB-FC-2013-126 - Batteries will not Charge
- TSB-FC-2014-031 - Squeegee Bracket Breaks Upon Impact
- TSB-FC-2015-020 - Premature Rubber Deterioration
- TSB-FC-2015-049 - New Optional Hour Counter
- TSBIT2007-021 - Filter Modifications
- TSBIT2007-027a - New Water Valve
- TSBIT2008-009 - New Float Cage Holder
- TSBIT2008-014 - Protective Rubber Collar
- TSBIT2011-071 - Premature Failure of Castor Wheel
- TSBIT2012-091 - 530mm_21 inch disc improvement
- TSBIT2012-092 - Drive Controller Replacement
- TSBIT2012-093 - Premature Damage of Squeegee Vacuum Hose
- TSBUS2010-1066 - Squeegee Cable Kit
- TSBUS2010-1077 - Ninety-Degree Elbow Kits
- TSBUS2010-1079 - Solution Tank Support Kits
- TSBUS2010-1088 - Improved Battery Connector
- TSBUS2010-1092 - Optional Castor Wheel Kit
- TSBUS2011-0020 - Change to Castor Wheel
