EX20

3

• Parts
• Diagrams

EX20 portable extractors are the culmination of a major engineering and design initiative of Clarke that emanated from direct field input of cleaning technicians who used high performance portable extraction machines every day. The EX20 represents a dramatic step forward in implementing unique, productivity enhancing features that considered even the minutest detail. These features go a step beyond traditional componentry that is common to most extractors- pumps and vacuum motors- and take into account the most common annoyances expressed by cleaning technicians. For example, moving the solution tank filling site to a location where the inevitable spill does not come in contact with any electrical components or switches. No detail was overlooked.

• 12 inch stainless steel scrub wand (AquaWand™ optional upgrade)
• 12.5 gallon solution tank
• 11 gallon recovery tank

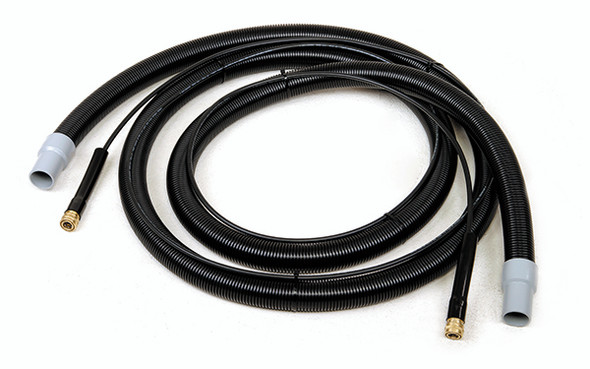

• 15 foot vacuum hose (25 foot optional upgrade)
• 15 foot solution hose (25 foot optional upgrade)
• Two handles for easy maneuverability and loading
• Handle on tank to assist loading/unloading and to guide vacuum hose
• Extension cord(s)
• Oversized, rubber grip rear wheels
• Two front panel roller wheels
• Easy-fill solution tank access port
• Molded wand caddy for easy transport
• Recessed electronic switch plate
• Closed, sealed vacuum system
• Recessed channel for ball float
• In-line, after the pump, heater (100SC & 100H)
• Heater has lifetime warranty (100SC & 100H)
• 1 year parts and labor warranty (exclusions apply)

Vacuum Single 5.7 in, 3-stage
Vac Shutoff Ball float
Pump 100 psi
Waterlift 140 in
Heat No
Heater N/A
Pressure Gauge N/A
Wand 12 in stainless steel scrub wand comes standard. AquaWand™ is optional upgrade
Cords Single
Dimensions (H x W x L) 40.5 in x 21 in x 42 in
Weight 87 lb
