Brain Corporation ICE RS26 Gen2 Parts and Support

ICE RS26 Gen2

Shopping for Equipment?

Contact our Experts

Need help finding parts?

Ask our Team The Brain Corporation ICE RS26 Gen2 is a ride-on, battery-powered, fully autonomous autoscrubber. The RS26 Gen2 is able to navigate complex, real-world workspaces thanks to Brain's advanced vision-based AI technology. Operators can take advantage of the simple and intuitive user-interface.

Working width: 26 in (66 cm)
Squeegee width: 34 in (86.4 cm)
Brush speed: 210 rpm
Brush pad pressure, variable: 77-165lbs (35-75 kg)
Max manual speed: 4 mph (6.5 km/h)
Max autonomous speed: 2.2 mph (1m/s)
Sound level: 68 dBA
Solution flow rate: 0-0.7gpm (0-2.7L/min)
Solution tank capacity: 29gal (110L)
Recovery tank capacity: 29gal (110L)
Weight without batteries: 619lbs (281 kg)
Weight with batteries: 920lbs (417 kg)
Dimension, Length x Width x Height: 65 x 34 x 54 in (165.1 x 86.4 x 137.2 cm)
Nominal voltage: 24 V
Drive motor power: 1.14 hp (0.85 kW)
Brush motor power: 0.6 hp (0.45 kW) (2)
Vacuum motor power: 0.6 hp (0.45 kW)
Runtime, up to: 4h

Brain Corporation ICE RS26 Gen2 Parts and Support

ICE RS26 Gen2

Shopping for Equipment?

Contact our Experts

Need help finding parts?

Ask our Team
The Brain Corporation ICE RS26 Gen2 is a ride-on, battery-powered, fully autonomous autoscrubber. The RS26 Gen2 is able to navigate complex, real-world workspaces thanks to Brain's advanced vision-based AI technology. Operators can take advantage of the simple and intuitive user-interface.

Working width: 26 in (66 cm)
Squeegee width: 34 in (86.4 cm)
Brush speed: 210 rpm
Brush pad pressure, variable: 77-165lbs (35-75 kg)
Max manual speed: 4 mph (6.5 km/h)
Max autonomous speed: 2.2 mph (1m/s)
Sound level: 68 dBA
Solution flow rate: 0-0.7gpm (0-2.7L/min)
Solution tank capacity: 29gal (110L)
Recovery tank capacity: 29gal (110L)
Weight without batteries: 619lbs (281 kg)
Weight with batteries: 920lbs (417 kg)
Dimension, Length x Width x Height: 65 x 34 x 54 in (165.1 x 86.4 x 137.2 cm)
Nominal voltage: 24 V
Drive motor power: 1.14 hp (0.85 kW)
Brush motor power: 0.6 hp (0.45 kW) (2)
Vacuum motor power: 0.6 hp (0.45 kW)
Runtime, up to: 4h

Manuals & Diagrams
The Brain Corporation ICE RS26 Gen2 is a ride-on, battery-powered, fully autonomous autoscrubber. The RS26 Gen2 is able to navigate complex, real-world workspaces thanks to Brain's advanced vision-based AI technology. Operators can take advantage of the simple and intuitive user-interface.

Working width: 26 in (66 cm)
Squeegee width: 34 in (86.4 cm)
Brush speed: 210 rpm
Brush pad pressure, variable: 77-165lbs (35-75 kg)
Max manual speed: 4 mph (6.5 km/h)
Max autonomous speed: 2.2 mph (1m/s)
Sound level: 68 dBA
Solution flow rate: 0-0.7gpm (0-2.7L/min)
Solution tank capacity: 29gal (110L)
Recovery tank capacity: 29gal (110L)
Weight without batteries: 619lbs (281 kg)
Weight with batteries: 920lbs (417 kg)
Dimension, Length x Width x Height: 65 x 34 x 54 in (165.1 x 86.4 x 137.2 cm)
Nominal voltage: 24 V
Drive motor power: 1.14 hp (0.85 kW)
Brush motor power: 0.6 hp (0.45 kW) (2)
Vacuum motor power: 0.6 hp (0.45 kW)
Runtime, up to: 4h

  • OEM
    8310901 - Tube 278-0510

    Tube 278-0510

    SKU: 278-0510
    $5.79
    OD- .80 inch ID- .60 inch Thickness- .09 inchSpecifications:Length: 20 in Width: 0.8 in Inside Diameter: 0.6 INOutside Diameter: 0.8 INLength: 20 INUsed for: SolutionConstruction Type: StandardMaterial: RubberColor: ClearMatches:8310901Commonly...
    $5.79
  • OEM
     - Hose assembly 288-0016

    Hose assembly 288-0016

    SKU: 288-0016
    $40.37
    Specifications:Length: 27 in Width: 1.66 in Inside Diameter: 1.45 INOutside Diameter: 1.75 INLength: 27 INNumber of Cuffs: 1Used for: DrainConstruction Type: SlinkyMaterial: RubberColor: BlackMatches:832020591147060N800-00235-01Commonly purchased...
    $40.37
  • OEM
    8310207 - Vacuum exhaust hose 278-0375

    Vacuum exhaust hose 278-0375

    SKU: 278-0375
    $5.79
    Specifications:Length: 9 in Width: 1.5 in Inside Diameter: 1.4 INOutside Diameter: 1.6 INLength: 9 INUsed for: VacuumConstruction Type: Braided or reinforcedMaterial: RubberColor: ClearMatches:8310207N460-00110-01Commonly purchased together:Fits...
    $5.79
  • OEM
     - ICE Kinetek (Roy Pow lithium) 288-9999

    ICE Kinetek (Roy Pow lithium) 288-9999

    SKU: 288-9999
    $1,221.00
    Matches:288-0126 SARAH FLASHMay fit on these models - select model and diagram to confirmBrain Corporation ICE RS26 GEN2
    $1,221.00
  • ships same day
    OEM
     - Toggle switch cable 288-0193

    Toggle switch cable 288-0193

    SKU: 288-0193
    $34.23
    Matches:8350262N810-00170-01Fits on:Brain Corporation ICE RS26 GEN2
    $34.23
  • OEM
     - Traction encoder with cable kit 288-0178

    Traction encoder with cable kit 288-0178

    SKU: 288-0178
    $564.36
    Matches:278-1826278-1901288-0063288-0160288-0176 & 288-0177835026683506129.116-716.09112347091154280BN290-00118-01Commonly purchased together:May fit on these models - select model and diagram to confirmBrain Corporation ICE RS26 GEN2
    $564.36
  • ships same day
    OEM
     - 4AWG battery connect cable (black) 288-0122

    4AWG battery connect cable (black) 288-0122

    SKU: 288-0122
    $29.11
    Specifications:Length: 13 in Color: BlackLength: 13 INConnector Type: EyeletMatches:278-18428350294998-0010N442-00343-01Commonly purchased together:Fits on:Brain Corporation ICE RS26 GEN2
    $29.11
  • ships same day
    OEM
     - 4AWG battery connect cable (red) 288-0121

    4AWG battery connect cable (red) 288-0121

    SKU: 288-0121
    $81.16
    Matches:278-18438350297N442-00346-01Commonly purchased together:Fits on:Brain Corporation ICE RS26 GEN2
    $81.16
  • OEM

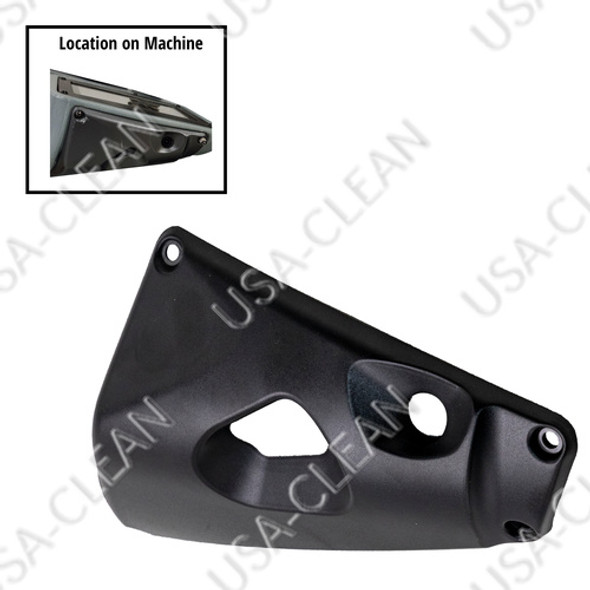

     - Left hand fascia (plastic) 288-0081

    Left hand fascia (plastic) 288-0081

    SKU: 288-0081
    $6.34
    Matches:278-18868350198N421-00105-01Commonly purchased together:Fits on:Brain Corporation ICE RS26 GEN2
    $6.34
  • OEM
     - Control panel replacement assembly 288-0053

    Control panel replacement assembly 288-0053

    SKU: 288-0053
    $735.20
    Matches:288-0172 & BUILD KITN830-00109-01N8300010901Commonly purchased together:May fit on these models - select model and diagram to confirmBrain Corporation ICE RS26 GEN2
    $735.20
  • OEM

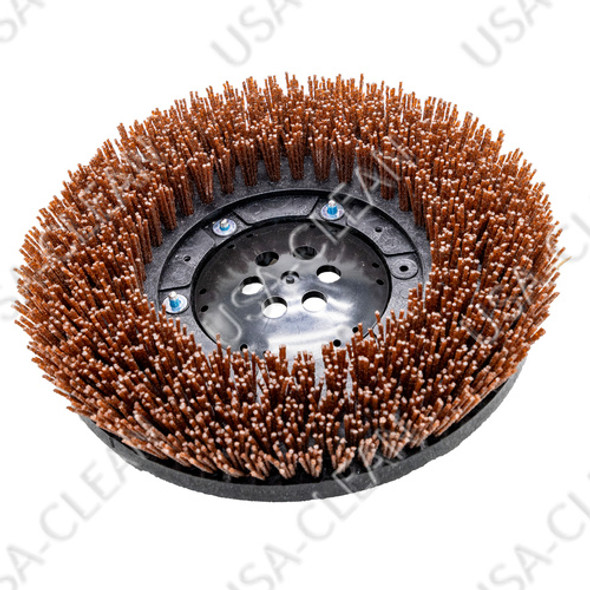

    13 inch aggressive brush 278-1849

    13 inch aggressive brush 278-1849

    SKU: 278-1849
    $297.00
    Matches:9050013BMay fit on these models - select model and diagram to confirmBrain Corporation ICE RS26 GEN2
    $297.00
  • ships same day
    OEM

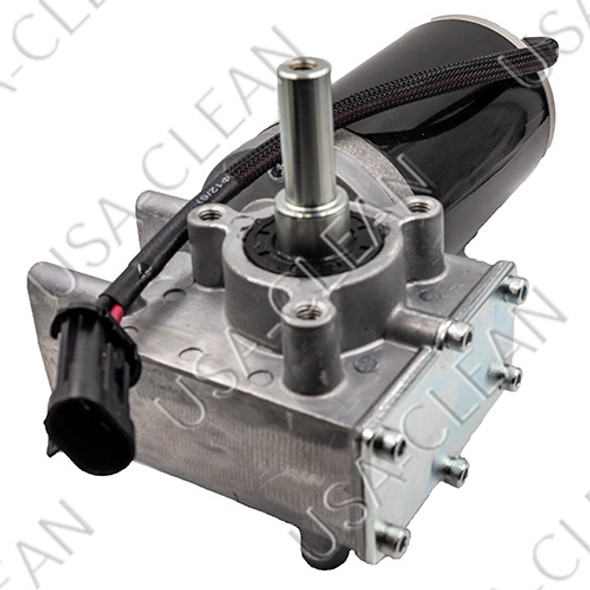

    8320309 - 24V 450W brush motor 278-0589

    24V 450W brush motor 278-0589

    SKU: 278-0589
    $1,085.37
    Specifications:Weight: 17.3 poundsMatches:278-0463278-146483103028310399832030983203999.111-712.091117120991-1316N500-00141-01Alternative items:Below are other options that may meet your needs.24V 450W brush motor$597.91991-1316Commonly purchased...
    $1,085.37
  • ships same day
    OEM
    8310210 - 24V 3 stage vacuum motor kit 278-0526

    24V 3 stage vacuum motor kit 278-0526

    SKU: 278-0526
    $540.61
    Matches:8310210831026083102999.113-900.091139000N500-00140-01Alternative items:Below are other options that may meet your needs.24V 3 STAGE VACUUM MOTOR KIT$391.94991-917424V 3 STAGE VACUUM MOTOR KIT$353.10993-3103Commonly purchased together:May fit on...
    $540.61
  • OEM
    8310909 - 1 1/2 inch tube 278-0519

    1 1/2 inch tube 278-0519

    SKU: 278-0519
    $3.65
    Specifications:Length: 1.4 in Width: 0.25 in Inside Diameter: 0.15 INOutside Diameter: 0.25 INLength: 1.5 INUsed for: SolutionConstruction Type: StandardMaterial: RubberColor: ClearMatches:8310909Fits on:Brain Corporation ICE RS26 GEN2ICE Intelligent...
    $3.65
  • ships same day
    OEM
    9050013 - 13 inch polypropylene brush 278-0475

    13 inch polypropylene brush 278-0475

    SKU: 278-0475
    $279.40
    Specifications:Weight: 4.2 poundsColor: BlackMatches:9.113-643.0905001391136430Commonly purchased together:May fit on these models - select model and diagram to confirmBrain Corporation ICE RS26 GEN2ICE Intelligent Cleaning Equipment RS26ICE Intelligent...
    $279.40
  • OEM
    8310305 - Scrub head lifting arm plate 278-0453

    Scrub head lifting arm plate 278-0453

    SKU: 278-0453
    $24.55
    Specifications:Length: 11 in Height: 5 in Matches:8310305Fits on:Brain Corporation ICE RS26 GEN2ICE Intelligent Cleaning Equipment RS26ICE Intelligent Cleaning Equipment RS32ICE Intelligent Cleaning Equipment RS26LICE Intelligent Cleaning Equipment...
    $24.55
  • OEM
    8310461 - Detergent bottle 278-0424

    Detergent bottle 278-0424

    SKU: 278-0424
    $30.69
    Specifications:Weight: 1.05 poundsMatches:8310461N420-00105-01Fits on:Brain Corporation ICE RS26 GEN2ICE Intelligent Cleaning Equipment RS26ICE Intelligent Cleaning Equipment RS32ICE Intelligent Cleaning Equipment RS26LICE Intelligent Cleaning Equipment...
    $30.69
  • OEM
    8310203 - Vacuum motor mounting plate 278-0385

    Vacuum motor mounting plate 278-0385

    SKU: 278-0385
    $76.71
    Matches:8310203N411-00198-01Commonly purchased together:Fits on:Brain Corporation ICE RS26 GEN2ICE Intelligent Cleaning Equipment RS26ICE Intelligent Cleaning Equipment RS32ICE Intelligent Cleaning Equipment RS26LICE Intelligent Cleaning Equipment RS26L...
    $76.71
  • OEM
    8310228 - Recovery tank cover support 278-0380

    Recovery tank cover support 278-0380

    SKU: 278-0380
    $24.55
    Matches:8310228N411-00197-01Fits on:Brain Corporation ICE RS26 GEN2ICE Intelligent Cleaning Equipment RS26ICE Intelligent Cleaning Equipment RS32ICE Intelligent Cleaning Equipment RS26LICE Intelligent Cleaning Equipment RS26L PLUSICE Intelligent Cleaning...
    $24.55
