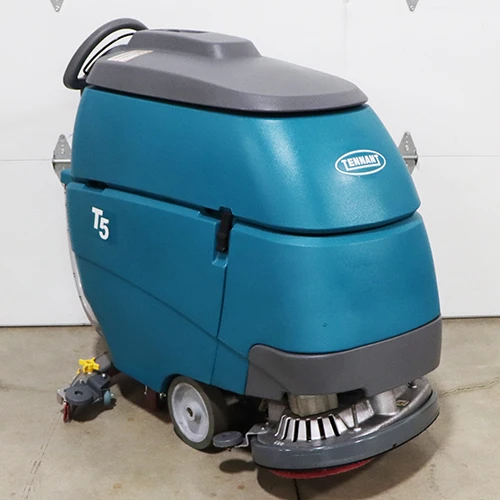

TENNANT T5

The Tennant T5 is a battery-powered, walk-behind autoscrubber. A range of disk and cylindrical brush sizes allow for use in a variety of areas. With built in ec-H2O and FaST technology, the T5 utilizes less water and can operate with less, or entirely without, cleaning detergent. Intuitive controls help train new operators which leads to safer, consistent operation.

Working width, disc: 24 in (60 cm), 28 in (70 cm), 32 in (80 mm)
Working width, cylindrical: 26 in (65 cm), 32 in (80 cm)
Productivity per hour (theoretical max), disc: 26,400 sq ft (2,500 sq m) (24 in), 30,800 sq ft (2900 sq m) (28 in), 35,200 sq ft (3,300 sq m) (32 in)
Productivity per hour (theoretical max), cylindrical: 28,600 sq ft (2,700 sq m) (26 in), 35,200 sq ft (3,300 sq m) (32 in)
Productivity per hour (estimated actual, conventional), disc: 17,875 sq ft (1,660 sq m) (24 in), 20,800 sq ft (1,900 sq m) (24 in), 24,000 sq ft (2200 sq m) (32 in)
Productivity per hour (estimated actual, conventional), cylindrical: 19,200 sq ft (1,790 sq m) (26 in), 24,000 sq ft (2,200 sq m) (32 in)
Productivity per hour (estimated actual, ec-H2O™ or FaST®), disc: 20,075 sq ft (1,900 sq m) (24 in), 22,750 sq ft (2,100 sq m) (28 in), 26,250 sq ft (2400 sq m) (32 in)
Productivity per hour (estimated actual, ec-H2O™ or FaST®), cylindrical: 21,000 sq ft (2,000 sq m) (26 in), 26,250 sq ft (2,400 sq m) (32 in)
Brush motor horespower, disc: 0.75 hp (0.56 kW) (2)
Brush motor horespower, cylindrical: 0.63 hp (0.47 kW) (2)
Brush rotation speed, disc: 220 rpm
Brush rotation speed, cylindrical: 1500 rpm
Brush/pad down pressure (3 settings): 40, 80, 120lb (18, 36, 54 kg)
Solution tank capacity: 22.5gal (85L)
Recovery tank capacity (includes demisting chamber): 27gal (102L)
Vacuum motor, 3-stage: 0.85 hp (0.64 kW)
Waterlift: 62 in (157 cm)
System Voltage, charger included: 24V (4x 6V batteries)
Standard run time: 6V (240Ah), up to 5.5h
Optional sealed run time: 6V (200Ah), up to 4.5h
Propel speed (variable to), transport: 2.7 mph (4.3 km/h)
Propel speed (variable to), scrubbing: 2.5 mph (4.0 km/h)
Gradeability (ramp climb), scrubbing/transporting (full): 3.0deg / 5.0deg
Gradeability (ramp climb), trailer ramps (empty): 11deg
Dimensions, Length x Width x Height, disc: 52.9 x 25.4 x 44 in (134 x 64 x 112 cm) (24 in), 55.7 x 29 x 44 in (141 x 74 x 112 cm) (28 in), 58.4 x 33 x 44 in (148 x 84 x 112 cm) (32 in)
Dimensions, Length x Width x Height, cylindrical: 55.4 x 28 x 44 in (141 x 71 x 112 cm) (26 in), 55.4 x 34 x 44 in (141 x 86 x 112 cm) (32 in)
Squeegee width, disc: 35.7 in (91 cm) (24 in), 41.3 in (105 cm) (28 in), 46.6 in (118 cm) (32 in)
Squeegee width, cylindrical: 41.3 in (105 cm) (26 in), 46.6 in (118 cm) (32 in)
Product weight (with batteries), disk: 580lb (263 kg) (24 in), 609lb (276 kg) (28 in), 621lb (282 kg) (32 in)
Product weight (with batteries), cylindrical: 621lb (282 kg) (26 in), 629lb (285 kg) (32 in)
Sound level: 68 dBA

Contact us to discuss specific options for this machine.
