Windsor CHARIOT IEXTRACT Parts and Support

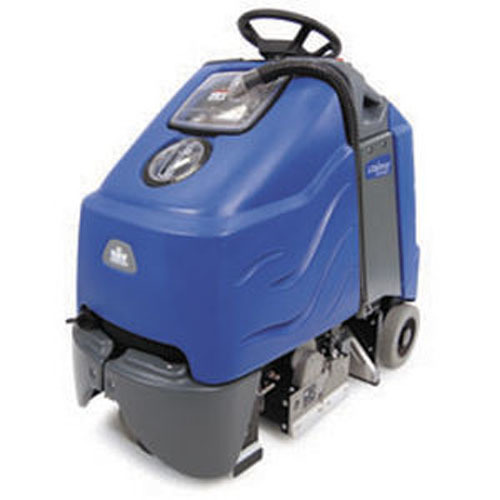

CHARIOT IEXTRACT

Shopping for Equipment?

Contact our Experts

Need help finding parts?

Ask our Team The Chariot iExtract is engineered for deep restorative extraction for carpets with heavy accumulation of soil and stains. The iExtract's high pressure, 100 psi pump, 1.2 gpm flow rate, and two 800 rpm counter-rotating cylindrical brushes sweep small debris into a debris bin and aggressively attack and remove soil and stains.

-No tools to required to remove and replace brushes and debris tray.
-Control panel is intuitively organized and easy to operate while steering.
-Large, stainless steel strainer prevents debris from entering pump. Easy to inspect and service with tools.
-Two 14" vacuum shoes provide maximum power.

Cleaning rate: 5,800 deep extraction, 12,500 ft2/hr. extraction
Cleaning Path: 24" (610mm)
Vacuum shoe width: 2 x 14" (356 mm) vac shoe
Brushes: 2 x 6" diameter x 22" length (2 x 152 mm x 558 mm)
Brush motor: 2 x 0.75 hp (560 watt)
Brush speed: 800 rpm
Extractor head lift: Actuator
Brush pressure: Floating
Drive motor: 0.83 hp (616 watts)
Transport Speed: 3.5 mph (5.6 km/h)
Operating speeds: 0.6 mph ( 1 km/h), 1.12 mph (1.8 km/h)
Tires: 10" (254mm) solid gray non marking
Solution Dispensing: Solution pump 100 psi (6.9 bar) 1.2 gpm (4.5 ltr), automatic shut off in neutral; 2 spray jets
Solution capacity: 25 gal (95 ltr)
Recovery capacity: 25 gal (95 ltr)
Vacuum motors: 2 x 3-stage, 0.75 hp (560 watts)
Operating system: one switch lowers the brushes and turns them on automatically; one switch turns on the solution
Debris bin: easy to remove, no tools, slides out
Electrical system: 36V, 3x 12V, 205 or 225 A/H batteries, 234 A/H AGM batteries; chargers and battery exchange system available.
Weight (w/o batteries): 665 lbs (300kg)
Dimensions (LxWxH) (machine body) 51.5" x 26.5" x 50.75"
(1310 mm x 673 mm x 1290 mm)

Documentation

Windsor CHARIOT IEXTRACT Parts and Support

CHARIOT IEXTRACT

Shopping for Equipment?

Contact our Experts

Need help finding parts?

Ask our Team
The Chariot iExtract is engineered for deep restorative extraction for carpets with heavy accumulation of soil and stains. The iExtract's high pressure, 100 psi pump, 1.2 gpm flow rate, and two 800 rpm counter-rotating cylindrical brushes sweep small debris into a debris bin and aggressively attack and remove soil and stains.

-No tools to required to remove and replace brushes and debris tray.
-Control panel is intuitively organized and easy to operate while steering.
-Large, stainless steel strainer prevents debris from entering pump. Easy to inspect and service with tools.
-Two 14" vacuum shoes provide maximum power.

Cleaning rate: 5,800 deep extraction, 12,500 ft2/hr. extraction
Cleaning Path: 24" (610mm)
Vacuum shoe width: 2 x 14" (356 mm) vac shoe
Brushes: 2 x 6" diameter x 22" length (2 x 152 mm x 558 mm)
Brush motor: 2 x 0.75 hp (560 watt)
Brush speed: 800 rpm
Extractor head lift: Actuator
Brush pressure: Floating
Drive motor: 0.83 hp (616 watts)
Transport Speed: 3.5 mph (5.6 km/h)
Operating speeds: 0.6 mph ( 1 km/h), 1.12 mph (1.8 km/h)
Tires: 10" (254mm) solid gray non marking
Solution Dispensing: Solution pump 100 psi (6.9 bar) 1.2 gpm (4.5 ltr), automatic shut off in neutral; 2 spray jets
Solution capacity: 25 gal (95 ltr)
Recovery capacity: 25 gal (95 ltr)
Vacuum motors: 2 x 3-stage, 0.75 hp (560 watts)
Operating system: one switch lowers the brushes and turns them on automatically; one switch turns on the solution
Debris bin: easy to remove, no tools, slides out
Electrical system: 36V, 3x 12V, 205 or 225 A/H batteries, 234 A/H AGM batteries; chargers and battery exchange system available.
Weight (w/o batteries): 665 lbs (300kg)
Dimensions (LxWxH) (machine body) 51.5" x 26.5" x 50.75"
(1310 mm x 673 mm x 1290 mm)

Manuals & Diagrams
The Chariot iExtract is engineered for deep restorative extraction for carpets with heavy accumulation of soil and stains. The iExtract's high pressure, 100 psi pump, 1.2 gpm flow rate, and two 800 rpm counter-rotating cylindrical brushes sweep small debris into a debris bin and aggressively attack and remove soil and stains.

-No tools to required to remove and replace brushes and debris tray.
-Control panel is intuitively organized and easy to operate while steering.
-Large, stainless steel strainer prevents debris from entering pump. Easy to inspect and service with tools.
-Two 14" vacuum shoes provide maximum power.

Cleaning rate: 5,800 deep extraction, 12,500 ft2/hr. extraction
Cleaning Path: 24" (610mm)
Vacuum shoe width: 2 x 14" (356 mm) vac shoe
Brushes: 2 x 6" diameter x 22" length (2 x 152 mm x 558 mm)
Brush motor: 2 x 0.75 hp (560 watt)
Brush speed: 800 rpm
Extractor head lift: Actuator
Brush pressure: Floating
Drive motor: 0.83 hp (616 watts)
Transport Speed: 3.5 mph (5.6 km/h)
Operating speeds: 0.6 mph ( 1 km/h), 1.12 mph (1.8 km/h)
Tires: 10" (254mm) solid gray non marking
Solution Dispensing: Solution pump 100 psi (6.9 bar) 1.2 gpm (4.5 ltr), automatic shut off in neutral; 2 spray jets
Solution capacity: 25 gal (95 ltr)
Recovery capacity: 25 gal (95 ltr)
Vacuum motors: 2 x 3-stage, 0.75 hp (560 watts)
Operating system: one switch lowers the brushes and turns them on automatically; one switch turns on the solution
Debris bin: easy to remove, no tools, slides out
Electrical system: 36V, 3x 12V, 205 or 225 A/H batteries, 234 A/H AGM batteries; chargers and battery exchange system available.
Weight (w/o batteries): 665 lbs (300kg)
Dimensions (LxWxH) (machine body) 51.5" x 26.5" x 50.75"
(1310 mm x 673 mm x 1290 mm)

  • OEM
    8.631-074.0 - 13 inch wiper with gasket 273-6471

    13 inch wiper with gasket 273-6471

    SKU: 273-6471
    $137.71
    Matches:273-62698.629-652.08.631-074.08629652086310740Commonly purchased together:May fit on these models - select model and diagram to confirmWindsor CHARIOT IEXTRACTWindsor COMMODORE DUOWindsor VOYAGER DUOWindsor Commodore Duo (Gray)
    $137.71
  • OEM
    86237950 - Gasket 273-6258

    Gasket 273-6258

    SKU: 273-6258
    $20.96
    Specifications:Weight: 0.01 poundsMatches:352838.623-795.086237950Commonly purchased together:May fit on these models - select model and diagram to confirmWindsor CHARIOT IEXTRACTWindsor COMMODORE DUOWindsor VOYAGER DUOWindsor Commodore Duo (Gray)
    $20.96
  • OEM
    86237920 - Gasket 273-6255

    Gasket 273-6255

    SKU: 273-6255
    $10.94
    Specifications:Weight: 0.2 poundsMatches:86237920May fit on these models - select model and diagram to confirmWindsor CHARIOT IEXTRACTWindsor COMMODORE DUOWindsor VOYAGER DUOWindsor Commodore Duo (Gray)
    $10.94
  • OEM
    8.623-791.0 - Gasket 273-6254

    Gasket 273-6254

    SKU: 273-6254
    $46.85
    Specifications:Weight: 0.2 poundsMatches:8.623-791.086237910May fit on these models - select model and diagram to confirmWindsor CHARIOT IEXTRACTWindsor COMMODORE DUOWindsor VOYAGER DUOWindsor Commodore Duo (Gray)
    $46.85
  • OEM
    8.632-087.0 - 36V brake switch (OBSOLETE) 273-5989

    36V brake switch (OBSOLETE) 273-5989

    SKU: 273-5989
    Call for availability
    Matches:8.632-087.086320870Fits on:Windsor CHARIOT ISCRUB SERIES 1Windsor CHARIOT IGLOSS 20Windsor CHARIOT ISCRUB SERIES 2Windsor CHARIOT IVAC34ATVWindsor CHARIOT IEXTRACTWindsor CHARIOT IVACUUMWindsor CHARIOT I CAPSOLAllstar GLADIATOR SCXU24X
    $27.06
  • OEM
    8.603-357.0 - Tube assembly 273-5982

    Tube assembly 273-5982

    SKU: 273-5982
    $71.21
    Matches:789348.603-357.086033570Fits on:Windsor CHARIOT ISCRUB SERIES 1Windsor CHARIOT ISCRUB SERIES 2Windsor CHARIOT IEXTRACTAllstar GLADIATOR SCXU24X
    $71.21
  • OEM
    8.625-610.0 - Strainer 273-5979

    Strainer 273-5979

    SKU: 273-5979
    $38.49
    Specifications:Weight: 0.05 poundsMatches:7303338.625-610.086256100Commonly purchased together:Fits on:Windsor CHARIOT ISCRUB SERIES 1Windsor CHARIOT ISCRUB SERIES 2Windsor CHARIOT IEXTRACTAllstar GLADIATOR SCXU24X
    $38.49
  • OEM
    8.618-821.0 - Brass nipple 1/2 x 3/8 inch 273-5911

    Brass nipple 1/2 x 3/8 inch 273-5911

    SKU: 273-5911
    $8.47
    Specifications:Weight: 0.15 poundsType: StraightMaterial: BrassMatches:11-8003548.618-821.086188210May fit on these models - select model and diagram to confirmWindsor CHARIOT ISCRUB SERIES 1Windsor CHARIOT ISCRUB SERIES 2Windsor CHARIOT IEXTRACTCentury...
    $8.47
  • OEM
    8.632-434.0 - Rear cover bracket 273-5804

    Rear cover bracket 273-5804

    SKU: 273-5804
    $57.55
    Matches:8.632-434.086324340May fit on these models - select model and diagram to confirmWindsor CHARIOT ISCRUB SERIES 1Windsor CHARIOT ISCRUB SERIES 2Windsor CHARIOT IVAC34ATVWindsor CHARIOT IEXTRACTWindsor CHARIOT IVACUUMWindsor CHARIOT I CAPSOLAllstar...
    $57.55
  • OEM
    8.632-476.0 - Latch plate 273-5803

    Latch plate 273-5803

    SKU: 273-5803
    $9.24
    Matches:8.632-476.086324760May fit on these models - select model and diagram to confirmWindsor CHARIOT ISCRUB SERIES 1Windsor CHARIOT ISCRUB SERIES 2Windsor CHARIOT IVAC34ATVWindsor CHARIOT IEXTRACTWindsor CHARIOT IVACUUMWindsor CHARIOT I CAPSOLAllstar...
    $9.24
  • ships same day
    OEM
    8.626-020.0 - Ring style jumper cable (black) 273-5764

    Ring style jumper cable (black) 273-5764

    SKU: 273-5764
    $10.59
    Matches:173-37778.626-020.08087286260200Alternative items:Below are other options that may meet your needs.Wire 4 x14.5, 3/8 ring x 3/8 ring$15.91991-6025Wire 4 x14.5, 3/8 ring x 3/8 ring$15.91993-2792Commonly purchased together:May fit on these models -...
    $10.59
  • OEM
    86237940 - Gasket 273-5267

    Gasket 273-5267

    SKU: 273-5267
    $24.20
    Specifications:Weight: 0.2 poundsMatches:86237940May fit on these models - select model and diagram to confirmWindsor CHARIOT IEXTRACTWindsor COMMODORE DUOWindsor VOYAGER DUOWindsor Commodore Duo (Gray)
    $24.20
  • OEM
    8.637-143.0 - Dome basket kit 273-0901

    Dome basket kit (OBSOLETE) 273-0901

    SKU: 273-0901
    Call for availability
    The dome basket plate is no longer available seperately.Matches:173-2191273-62466201028.600-589.08.609-151.08.637-143.08600589086091510863714309.840-676.098406760Commonly purchased together:May fit on these models - select model and diagram to...
    $105.93
  • OEM
    8.623-336.0 - Cable clamp kit 273-0049

    Cable clamp kit 273-0049

    SKU: 273-0049
    $11.12
    Matches:280388.623-336.086233360Alternative items:Below are other options that may meet your needs.CLAMP, CABLE KIT$15.19993-0063May fit on these models - select model and diagram to confirmWindsor SABER CUTTER 32Windsor CHARIOT ISCRUB SERIES 1Windsor...
    $11.12
  • OEM
    8.625-612.0 - Solution filter 273-0039

    Solution filter 273-0039

    SKU: 273-0039
    $103.58
    Matches:173-60707303277303688.600-764.08.625-612.08600764086256120Commonly purchased together:May fit on these models - select model and diagram to confirmWindsor CHARIOT ISCRUB SERIES 1Windsor CHARIOT ISCRUB SERIES 2Windsor CHARIOT IEXTRACTWindsor...
    $103.58
  • OEM
    8.600-173.0 - 18amp circuit breaker 273-0038

    18amp circuit breaker 273-0038

    SKU: 273-0038
    $41.07
    Specifications:Weight: 0.2 poundsType: Circuit BreakerMatches:1408048.600-173.086001730Alternative items:Below are other options that may meet your needs.Screw 10-24 x 1 round head slotted zinc plated$0.99999-0009Commonly purchased together:May fit on...
    $41.07
  • OEM
    8.625-141.0 - Relay 273-0032

    Relay 273-0032

    SKU: 273-0032
    $76.50
    Matches:675068.625-141.086251410May fit on these models - select model and diagram to confirmWindsor SABER CUTTER 32Windsor CHARIOT ISCRUB SERIES 1Windsor CHARIOT IGLOSS 20Windsor SABER CUTTER 26Windsor CHARIOT IVAC34ATVWindsor CHARIOT IEXTRACTWindsor...
    $76.50
  • OEM
    8.608-350.0 - Pulley retainer plate 273-0028

    Pulley retainer plate 273-0028

    SKU: 273-0028
    $17.53
    Matches:668328.608-350.086083500May fit on these models - select model and diagram to confirmWindsor CHARIOT ISCRUB SERIES 1Windsor CHARIOT ISCRUB SERIES 2Windsor CHARIOT IVAC34ATVWindsor CHARIOT IEXTRACTWindsor CHARIOT IVACUUMAllstar GLADIATOR SCXU24X
    $17.53
  • OEM
    8.623-115.0 - Flanged bearing 273-0024

    Flanged bearing 273-0024

    SKU: 273-0024
    $9.65
    Matches:091518.623-115.086231150Fits on:Windsor CHARIOT ISCRUB SERIES 1Windsor CHARIOT IGLOSS 20Windsor CHARIOT3 ISCRUB26Windsor CHARIOT ISCRUB SERIES 2Windsor CHARIOT IVAC34ATVWindsor CHARIOT IEXTRACTWindsor CHARIOT IVACUUMWindsor CHARIOT 3 IEXTRACT 26...
    $9.65
  • OEM
    8.622-337.0 - Plastic pulley 273-0021

    Plastic pulley 273-0021

    SKU: 273-0021
    $56.50
    Matches:664648.622-337.086223370Fits on:Windsor CHARIOT ISCRUB SERIES 1Windsor CHARIOT ISCRUB SERIES 2Windsor CHARIOT IVAC34ATVWindsor CHARIOT IEXTRACTWindsor CHARIOT IVACUUMAllstar GLADIATOR SCXU24X
    $56.50
