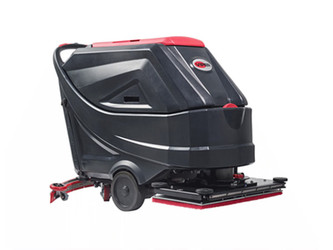

The VIPER AS6690T/AS7690T/AS7190TO walk-behind scrubbers prioritize smart performance, simple design, and user-friendly operation for cleaning medium to large sized facilities.

The AS6690T and AS7690T are both equipped with dual-brush decks for fast, effective cleaning, while the AS7190TO uses an orbital scrub deck for intensive multidirectional floorcare.

Each is an ideal solution for facility-managers and contract cleaners who need impressive results in hard-floor areas, whether they’re performing routine cleaning, heavy-duty scrubbing, or floor finish removal (orbital version).

-Eco mode greatly extends battery run time for greater productivity.
-Silent mode allows for cleaning in noise sensitive areas and is ideal for daytime cleaning.
-Finish removal mode icon enables chemical-free floor finish removal (AS7190TO only).
-Traction drive for increased productivity while reducing operator fatigue.
-Designed for quick and convenient tools free daily maintenance requirements.

Solution tank (L): 22 Gal.
Recovery tank (L): 24 Gal.
Length: 58.7 Inches
Width with squeegee: 37.4 Inches
Width without squeegee: 29.5 Inches
Height: 40.2 Inches
Pad/Brush Size: 14x28 Inches
Brush pressure (G/CM²): 93 Lbs / 120 Lbs / 143 Lbs
Solution flow: (0.16/0.29/0.5/0.66) Gal.
Sound pressure level (dB(A)): 69 ± 3
Sound level - silent mode: 65 ± 3
Machine speed: 0 – 2.0 Miles per hour
Min. aisle turn (cm): 63 Inches
Battery compartment size (L x W x H): 24.4 x 15.1 x 15.3 Inches
Voltage (V): 24
Cleaning productivity (max.): 2272 m2/h
Gross weight (GVW) (KG): 794 Lbs.
Shipping weight (KG): 473 Lbs.
Packaging dimensions: 66 x 36 x 48 Inches
