The PEX 500 is the result of years of extensive engineering and design experience coming together with customer feedback to create one of the most powerful and user-friendly portable carpet extractors ever made.

The PEX 500 is designed with the end user's need in mind. Features like upright, dolly design for easy loading, unloading and stair climbing make the PEX easy to handle by one person. Wand caddy, retractable cord wrap and large rear wheels make the PEX very easy to transport. For maintenance, it doesn't get any easier than the PEX pallet design. Simply open the hinged tanks for full access to all internal components on the machine.

But it is the "Easy Transport" features of the PEX that crown it already as the king of mobility. A special wand caddy is molded into the design of the machine. A retractable hose wrap holds your vacuum and solution hose. Cord wraps hold your electrical cords. It is the easiest high performance extractor in the world to move through a facility.

For performance, the PEX has all the power and versatility you expect a U.S. Products extractor to have and more! Dual vacuum and on -demand 212° F heat provide unmatched cleaning power, but don't take our word for it, let the proven performance of the CRI Gold certification speak for the power of the PEX!

• Dual Vacuums Dual vacuums with unrestricted airflow for superior water recovery, innovative fresh air intake for each vacuum improves vacuum life, dual 3-stage vacuum motor.
• Heater Element In-line, after the pump for longer life and instant heat up to 212° F at the wand tip, lifetime warranty.
• Low Moisture System Less water combined with higher heat means faster drying, less chance of shrinkage or wicking from the pad.
• Low Noise Day-time-quiet operation with innovative sound deadening chamber.
• Smart Circuit Locator Identifies separate lines to eliminate blown circuits.
• Tanks & Bodies Lightweight, rotationally molded with lifetime warranty against cracks, leaks and dents. Unique pallet design for easy maintenance.
• Top Warranty Industry leading, 2 year parts and labor warranty standard.

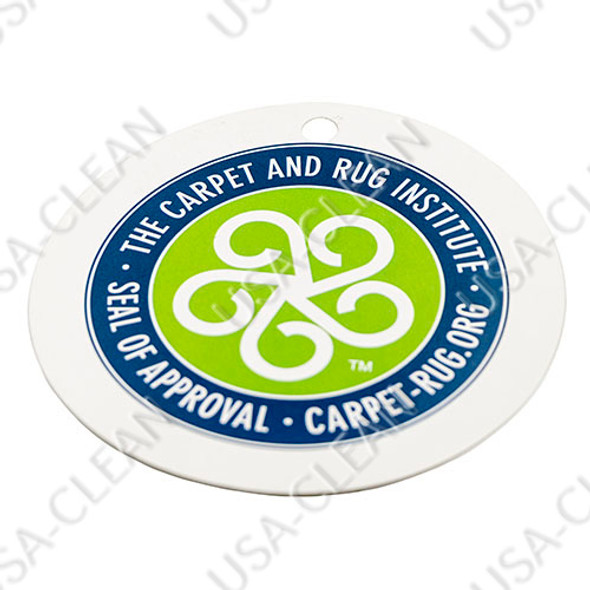

• CRI Certified Third party tested and received the top GOLD certification for superior cleaning performance for carpet extraction.

Vacuum Dual 5.7 in, 3-stage
Vac Shutoff Ball float
Pump Positive displacement adjustable 50-500 psi
Waterlift 200 in
Heat Adjustable to 212° F for carpet extraction, or 145° F for upholstery
Heater 2,000 W
Gauge Glycerin filled pressure gauge
Wand Evolution rotationally molded wand, twin tip for 500 psi Dimensions H = 39 in x W = 25 in x L = 33 in
Weight 110 lb
