Tomcat (Factory Cat) XR Parts and Support

XR

Shopping for Equipment?

Contact our Experts

Need help finding parts?

Ask our Team Tank Material: Poly 3/8'' (10 mm)
Chassis Construction: 3/16'' Steel (5 mm) Powder Coated Steel
Front Wheel (Diameter × Width): 12'' × 4'' (31 × 10 cm) - Solid Black
Rear Wheels (Diameter × Width): (2×) 14'' × 5'' ([2×] 36 × 13 cm) - Solid Black
Size (L × W × H): 69'' × 36'' × 56'' (175 × 92 × 142 cm)
Weight (w/o Batteries): 1,200 - 1,250 lbs (544 - 567 kg)
Weight (w/ 245 ah Batteries): 1,925 - 1,975 lbs (873 - 896 kg)
Disk Dimensions:
45 Inch Deck Includes HD Side Doors
34'' - (2×) 17'' Diameter (86 - [2×] 43 cm)
40'' - (2×) 20'' Diameter (102 - [2×] 51 cm)
45'' - (2×) 23'' Diameter (114 - [2×] 58 cm)
Disk Motor: (2×) 1.0 hp / 200 rpm ([2×] 746 watts)
Disk Brush Speed: 270 rpm
Cylindrical Dimensions: 7'' Diameter Brush
46 Inch Deck Includes HD Side Doors
34'' - (2×) 7'' × 32'' (86 - [2×] 18 × 81 cm)
40'' - (2×) 7'' × 38'' (102 - [2×] 18 × 97 cm)
46'' - (2×) 7'' × 44'' (117 - [2×] 18 × 112 cm)
Cylindrical Motor: (2×) 1.5 hp / 350 rpm ([2×] 1,119 watts)
Cylindrical Brush Speed: 750 rpm
Actuator Rating: 500 lbs (227 kg)
Brush Pressure Settings: (5) with Auto Adjust
Brush Down Pressure: Up to 250 lbs (113 kg)
System Voltage: 36 VDC
Standard Battery: 325 ah WET
Optional Battery: 425 ah WET / 440 ah Industrial / 400 ah AGM
Run Time:
*Run times are based on continuous scrubbing run times.
Up to 5.0 Hours*
Charger: 120VAC / 60 Hz Input - 36VDC / 36 amp Output
Power: 3.0 hp - All Gear / Sealed (2,237 watts)
Forward Speed: 0 - 320 ft/min (4 mph)
0 - 98 m/min (6 km/h)
Reverse Speed: 0 - 230 ft/min (3 mph)
0 - 70 m/min (5 km/h)
Solution Tank Capacity: 65 Gallons (246 liters) - w/ Graduated Site Tube
Solution Flow / Filter: 0 - 1.0 GPM / Stainless Inline (0 - 4 LPM)
Recovery Tank Capacity: 78 Gallons (295 liters) - 1.5'' diameter Drain Hose
Demisting Chamber: 1.25 Gallons (5 liters)
Drain Saver: 30 cubic inches (492 cubic cm)
Vacuum Power: (2×) 1.0 hp / 3 Stage (740 watts)
Vacuum Specs (Water Lift / Airflow): 70'' / 140 cfm (173 cm / 4 cm/m)
Squeegee: 34D & 34C - 46'' Curved w/ 4-sided Rear Blade
40D & 40C - 53'' Curved w/ 4-sided Rear Blade
45D & 46C - 60'' Curved w/ 4-sided Rear Blade
Cleaning Width: 34'', 40'', & 45'' - Disk (86, 102, 114 cm)
34'', 40'', & 46'' - Cylindrical (86, 102, 117 cm)
Decibels: 67 dB
Productivity - Theoretical:
**Productivity is based off of ISSA 2010 Cleaning Times
Up to 49,587 sqft (4,607 sqm)**
Productivity - Practical:
**Productivity is based off of ISSA 2010 Cleaning Times
Up to 22,989 sqft (2,136 sqm)**
Seat with Switch Included Headlights Included

Documentation

Tomcat (Factory Cat) XR Parts and Support

XR

Shopping for Equipment?

Contact our Experts

Need help finding parts?

Ask our Team
Tank Material: Poly 3/8'' (10 mm)
Chassis Construction: 3/16'' Steel (5 mm) Powder Coated Steel
Front Wheel (Diameter × Width): 12'' × 4'' (31 × 10 cm) - Solid Black
Rear Wheels (Diameter × Width): (2×) 14'' × 5'' ([2×] 36 × 13 cm) - Solid Black
Size (L × W × H): 69'' × 36'' × 56'' (175 × 92 × 142 cm)
Weight (w/o Batteries): 1,200 - 1,250 lbs (544 - 567 kg)
Weight (w/ 245 ah Batteries): 1,925 - 1,975 lbs (873 - 896 kg)
Disk Dimensions:
45 Inch Deck Includes HD Side Doors
34'' - (2×) 17'' Diameter (86 - [2×] 43 cm)
40'' - (2×) 20'' Diameter (102 - [2×] 51 cm)
45'' - (2×) 23'' Diameter (114 - [2×] 58 cm)
Disk Motor: (2×) 1.0 hp / 200 rpm ([2×] 746 watts)
Disk Brush Speed: 270 rpm
Cylindrical Dimensions: 7'' Diameter Brush
46 Inch Deck Includes HD Side Doors
34'' - (2×) 7'' × 32'' (86 - [2×] 18 × 81 cm)
40'' - (2×) 7'' × 38'' (102 - [2×] 18 × 97 cm)
46'' - (2×) 7'' × 44'' (117 - [2×] 18 × 112 cm)
Cylindrical Motor: (2×) 1.5 hp / 350 rpm ([2×] 1,119 watts)
Cylindrical Brush Speed: 750 rpm
Actuator Rating: 500 lbs (227 kg)
Brush Pressure Settings: (5) with Auto Adjust
Brush Down Pressure: Up to 250 lbs (113 kg)
System Voltage: 36 VDC
Standard Battery: 325 ah WET
Optional Battery: 425 ah WET / 440 ah Industrial / 400 ah AGM
Run Time:
*Run times are based on continuous scrubbing run times.
Up to 5.0 Hours*
Charger: 120VAC / 60 Hz Input - 36VDC / 36 amp Output
Power: 3.0 hp - All Gear / Sealed (2,237 watts)
Forward Speed: 0 - 320 ft/min (4 mph)
0 - 98 m/min (6 km/h)
Reverse Speed: 0 - 230 ft/min (3 mph)
0 - 70 m/min (5 km/h)
Solution Tank Capacity: 65 Gallons (246 liters) - w/ Graduated Site Tube
Solution Flow / Filter: 0 - 1.0 GPM / Stainless Inline (0 - 4 LPM)
Recovery Tank Capacity: 78 Gallons (295 liters) - 1.5'' diameter Drain Hose
Demisting Chamber: 1.25 Gallons (5 liters)
Drain Saver: 30 cubic inches (492 cubic cm)
Vacuum Power: (2×) 1.0 hp / 3 Stage (740 watts)
Vacuum Specs (Water Lift / Airflow): 70'' / 140 cfm (173 cm / 4 cm/m)
Squeegee: 34D & 34C - 46'' Curved w/ 4-sided Rear Blade
40D & 40C - 53'' Curved w/ 4-sided Rear Blade
45D & 46C - 60'' Curved w/ 4-sided Rear Blade
Cleaning Width: 34'', 40'', & 45'' - Disk (86, 102, 114 cm)
34'', 40'', & 46'' - Cylindrical (86, 102, 117 cm)
Decibels: 67 dB
Productivity - Theoretical:
**Productivity is based off of ISSA 2010 Cleaning Times
Up to 49,587 sqft (4,607 sqm)**
Productivity - Practical:
**Productivity is based off of ISSA 2010 Cleaning Times
Up to 22,989 sqft (2,136 sqm)**
Seat with Switch Included Headlights Included

Manuals & Diagrams
Tank Material: Poly 3/8'' (10 mm)
Chassis Construction: 3/16'' Steel (5 mm) Powder Coated Steel
Front Wheel (Diameter × Width): 12'' × 4'' (31 × 10 cm) - Solid Black
Rear Wheels (Diameter × Width): (2×) 14'' × 5'' ([2×] 36 × 13 cm) - Solid Black
Size (L × W × H): 69'' × 36'' × 56'' (175 × 92 × 142 cm)
Weight (w/o Batteries): 1,200 - 1,250 lbs (544 - 567 kg)
Weight (w/ 245 ah Batteries): 1,925 - 1,975 lbs (873 - 896 kg)
Disk Dimensions:
45 Inch Deck Includes HD Side Doors
34'' - (2×) 17'' Diameter (86 - [2×] 43 cm)
40'' - (2×) 20'' Diameter (102 - [2×] 51 cm)
45'' - (2×) 23'' Diameter (114 - [2×] 58 cm)
Disk Motor: (2×) 1.0 hp / 200 rpm ([2×] 746 watts)
Disk Brush Speed: 270 rpm
Cylindrical Dimensions: 7'' Diameter Brush
46 Inch Deck Includes HD Side Doors
34'' - (2×) 7'' × 32'' (86 - [2×] 18 × 81 cm)
40'' - (2×) 7'' × 38'' (102 - [2×] 18 × 97 cm)
46'' - (2×) 7'' × 44'' (117 - [2×] 18 × 112 cm)
Cylindrical Motor: (2×) 1.5 hp / 350 rpm ([2×] 1,119 watts)
Cylindrical Brush Speed: 750 rpm
Actuator Rating: 500 lbs (227 kg)
Brush Pressure Settings: (5) with Auto Adjust
Brush Down Pressure: Up to 250 lbs (113 kg)
System Voltage: 36 VDC
Standard Battery: 325 ah WET
Optional Battery: 425 ah WET / 440 ah Industrial / 400 ah AGM
Run Time:
*Run times are based on continuous scrubbing run times.
Up to 5.0 Hours*
Charger: 120VAC / 60 Hz Input - 36VDC / 36 amp Output
Power: 3.0 hp - All Gear / Sealed (2,237 watts)
Forward Speed: 0 - 320 ft/min (4 mph)
0 - 98 m/min (6 km/h)
Reverse Speed: 0 - 230 ft/min (3 mph)
0 - 70 m/min (5 km/h)
Solution Tank Capacity: 65 Gallons (246 liters) - w/ Graduated Site Tube
Solution Flow / Filter: 0 - 1.0 GPM / Stainless Inline (0 - 4 LPM)
Recovery Tank Capacity: 78 Gallons (295 liters) - 1.5'' diameter Drain Hose
Demisting Chamber: 1.25 Gallons (5 liters)
Drain Saver: 30 cubic inches (492 cubic cm)
Vacuum Power: (2×) 1.0 hp / 3 Stage (740 watts)
Vacuum Specs (Water Lift / Airflow): 70'' / 140 cfm (173 cm / 4 cm/m)
Squeegee: 34D & 34C - 46'' Curved w/ 4-sided Rear Blade
40D & 40C - 53'' Curved w/ 4-sided Rear Blade
45D & 46C - 60'' Curved w/ 4-sided Rear Blade
Cleaning Width: 34'', 40'', & 45'' - Disk (86, 102, 114 cm)
34'', 40'', & 46'' - Cylindrical (86, 102, 117 cm)
Decibels: 67 dB
Productivity - Theoretical:
**Productivity is based off of ISSA 2010 Cleaning Times
Up to 49,587 sqft (4,607 sqm)**
Productivity - Practical:
**Productivity is based off of ISSA 2010 Cleaning Times
Up to 22,989 sqft (2,136 sqm)**
Seat with Switch Included Headlights Included

  • ships same day
    OEM
    370-9130 - Inline filter 202-3234

    Inline filter 202-3234

    SKU: 202-3234
    $84.15
    Matches:370-913091037250Commonly purchased together:May fit on these models - select model and diagram to confirmTomcat (Factory Cat) MINI MAGTomcat (Factory Cat) MAGNUMTomcat (Factory Cat) GTX 34Tomcat (Factory Cat) GTX 30Tomcat (Factory Cat)...
    $84.15
  • ships same day
    OEM
    7-229D - Push button switch 202-0879

    Push button switch 202-0879

    SKU: 202-0879
    $53.24
    Matches:7-2297-229D8.807-442.088074420Commonly purchased together:May fit on these models - select model and diagram to confirmTomcat (Factory Cat) 350SAMSTomcat (Factory Cat) MINI MAGTomcat (Factory Cat) 200Tomcat (Factory Cat) 250Tomcat (Factory Cat)...
    $53.24
  • OEM
    290-2300 - Low solution indicator (amber) 202-0831

    Low solution indicator (amber) 202-0831

    SKU: 202-0831
    $23.76
    Matches:290-2300Commonly purchased together:May fit on these models - select model and diagram to confirmTomcat (Factory Cat) 350SAMSTomcat (Factory Cat) 250Tomcat (Factory Cat) GTX 34Tomcat (Factory Cat) GTX 30Tomcat (Factory Cat) 250SAMSFactory Cat...
    $23.76
  • ships same day
    Non-OEM

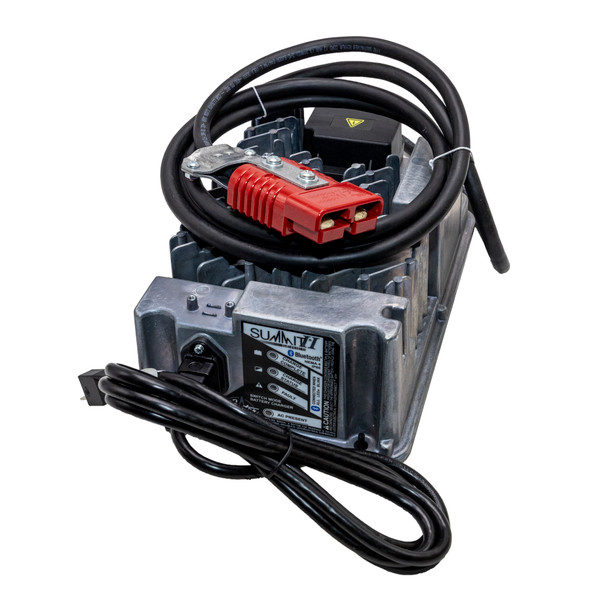

    - Summit II 24V 40amp battery charger SB175 large gray plug 162-5149

    Summit II 24V 40amp battery charger SB175 large gray plug 162-5149

    SKU: 162-5149
    Now: $585.47
    Was: $1,365.28
    Matches:162-5064162-507427050-04 AGM27050-04 WET/AGM7006045037467006045037539.111-353.0May fit on these models - select model and diagram to confirmMultiton MIC (Nissan) PALLET JACKMultiton MIC/Nissan Pallet JackMultiton MIC (Nissan) PALLET JACKMultiton...
    Now: $585.47
    Was: $1,365.28
  • OEM
    190-1210 - Hosebarb 202-2025

    Hosebarb 202-2025

    SKU: 202-2025
    $23.87
    Matches:175-1210190-1210202-0226202-423138-71591038930Commonly purchased together:Fits on:Tomcat (Factory Cat) MINI MAGTomcat (Factory Cat) 250Tomcat (Factory Cat) MAGNUMTomcat (Factory Cat) GTX 34Tomcat (Factory Cat) GTX 30Tomcat (Factory Cat)...
    $23.87
  • OEM
    H-04764 - Elbow barb 202-3059

    Elbow barb 202-3059

    SKU: 202-3059
    $5.50
    Matches:H-04764May fit on these models - select model and diagram to confirmTomcat (Factory Cat) MINI MAGTomcat (Factory Cat) MAGNUMTomcat (Factory Cat) GTX 34Tomcat (Factory Cat) GTX 30Tomcat (Factory Cat) MICROMAGFactory Cat XRTomcat (Factory Cat)...
    $5.50
  • ships same day
    OEM
    5-727 - Drain hose plug 202-0240

    Drain hose plug 202-0240

    SKU: 202-0240
    $69.85
    Specifications:Weight: 0.01 poundsMatches:202-29245-7275-727T88052200Alternative items:Below are other options that may meet your needs.Drain plug$128.25991-2416Commonly purchased together:Fits on:Tomcat (Factory Cat) 350SAMSTomcat (Factory Cat)...
    $69.85
  • ships same day
    OEM
    253-0121 - Hose 2 x 27 inch (gray) 202-3277

    Hose 2 x 27 inch (gray) 202-3277

    SKU: 202-3277
    $33.44
    Matches:253-012188030680Commonly purchased together:May fit on these models - select model and diagram to confirmTomcat (Factory Cat) MAGNUMFactory Cat XRTomcat (Factory Cat) XRFactory Cat XRTomcat (Factory Cat) XRTimberline RIDER-MTomcat (Factory Cat)...
    $33.44
  • OEM
    H-11196 - Toggle switch protective boot (red) 202-1864

    Toggle switch protective boot (red) 202-1864

    SKU: 202-1864
    $13.75
    Specifications:Weight: 0.012 poundsMatches:8807426091011940H-01196H-11196Commonly purchased together:May fit on these models - select model and diagram to confirmTomcat (Factory Cat) 350SAMSTomcat (Factory Cat) MINI MAGTomcat (Factory Cat) 200Tomcat...
    $13.75
  • OEM
    H-111 - Spring 202-2945

    Spring 202-2945

    SKU: 202-2945
    $5.50
    Matches:88074250H-111Commonly purchased together:Fits on:Tomcat (Factory Cat) MINI MAGTomcat (Factory Cat) 250Tomcat (Factory Cat) MAGNUMTomcat (Factory Cat) GTX 34Tomcat (Factory Cat) 250SAMSTomcat (Factory Cat) MICROMAGFactory Cat XRTomcat (Factory...
    $5.50
  • OEM
    21-1127 - Guide roller 202-0756

    Guide roller 202-0756

    SKU: 202-0756
    $29.37
    Specifications:Weight: 0.7 poundsMatches:21-1127Fits on:Tomcat (Factory Cat) 350SAMSTomcat (Factory Cat) MINI MAGTomcat (Factory Cat) 250Tomcat (Factory Cat) MAGNUMTomcat (Factory Cat) GTX 34Tomcat (Factory Cat) GTX 30Tomcat (Factory Cat) 250SAMSTomcat...
    $29.37
  • ships same day
    OEM
    5-234 - 2 position rocker switch 202-0369

    2 position rocker switch 202-0369

    SKU: 202-0369
    $27.28
    Matches:5-23488074310Commonly purchased together:May fit on these models - select model and diagram to confirmTomcat (Factory Cat) 350SAMSTomcat (Factory Cat) MINI MAGTomcat (Factory Cat) 250Tomcat (Factory Cat) MAGNUMTomcat (Factory Cat) GTX 34Tomcat...
    $27.28
  • OEM
    370-1235L - Wiper blade (linatex®) 202-3132

    Wiper blade (linatex®) 202-3132

    SKU: 202-3132
    $55.33
    Matches:370-1235LCommonly purchased together:Fits on:Factory Cat XRTomcat (Factory Cat) XRFactory Cat XRTomcat (Factory Cat) XRTomcat (Factory Cat) HDTomcat (Factory Cat) HD
    $55.33
  • OEM
    253-8215D - 32 toothed sprocket 202-3140

    32 toothed sprocket 202-3140

    SKU: 202-3140
    $81.51
    Matches:253-8215253-8215DMay fit on these models - select model and diagram to confirmTomcat (Factory Cat) MINI MAGTomcat (Factory Cat) 250Tomcat (Factory Cat) MAGNUMTomcat (Factory Cat) GTX 34Tomcat (Factory Cat) GTX 30Factory Cat XRTomcat (Factory Cat)...
    $81.51
  • OEM
    250-0001 - Retaining pin 202-3136

    Retaining pin 202-3136

    SKU: 202-3136
    $19.47
    Matches:250-0001Fits on:Tomcat (Factory Cat) 250Tomcat (Factory Cat) GTX 34Tomcat (Factory Cat) GTX 30Factory Cat XRTomcat (Factory Cat) XRTomcat (Factory Cat) 250Factory Cat XRTomcat (Factory Cat) XRFactory Cat GTR V2.1 37CTomcat (Factory Cat)...
    $19.47
  • OEM
    M-6391K403 - Sleeved bearing 202-3128

    Sleeved bearing 202-3128

    SKU: 202-3128
    $5.50
    Matches:M-6391K403Fits on:Tomcat (Factory Cat) MINI MAGTomcat (Factory Cat) MAGNUMTomcat (Factory Cat) GTX 34Tomcat (Factory Cat) GTX 30Factory Cat XRTomcat (Factory Cat) XRFactory Cat XRTomcat (Factory Cat) XRTomcat (Factory Cat) MINITomcat (Factory...
    $5.50
  • ships same day
    Non-OEM
    36V 3 stage vacuum motor tangential 991-1202

    36V 3 stage vacuum motor tangential 991-1202

    SKU: 991-1202
    $114.49
    This high quality, low cost vacuum motor fits on the following models; NSS Wrangler 27, 33, 2730, 3330 (front brush), Champ ZS 29, Champ 3329 RB Alto-Clarke Encore2 D33, Focus 28, 34, Focus BOOST 32, Vision 26I, 32I, 38I, Encore L and S series...
    $114.49
  • OEM
    H-0156730 - Clevis pin 202-0805

    Clevis pin 202-0805

    SKU: 202-0805
    $5.50
    Matches:H-0156730H-ZCP44HZCP44Commonly purchased together:Fits on:Tennant 2550Tomcat (Factory Cat) 350SAMSTomcat (Factory Cat) GTX 34Tomcat (Factory Cat) GTX 30Tomcat (Factory Cat) 2500Factory Cat 350Tomcat (Factory Cat) 350Factory Cat XRTomcat (Factory...
    $5.50
  • OEM
    290-7090 - Upper steering shaft 202-0761

    Upper steering shaft 202-0761

    SKU: 202-0761
    $65.56
    Specifications:Weight: 1.337 poundsMatches:290-7090Fits on:Tomcat (Factory Cat) 350SAMSTomcat (Factory Cat) 250Tomcat (Factory Cat) GTX 34Tomcat (Factory Cat) GTX 30Tomcat (Factory Cat) 250SAMSFactory Cat 350Tomcat (Factory Cat) 350Factory Cat XRTomcat...
    $65.56
  • OEM
    349-7230A - Bearing block 202-0771

    Bearing block 202-0771

    SKU: 202-0771
    $213.73
    Matches:202-0159349-7230A8-7238-723AFits on:Tomcat (Factory Cat) 350SAMSTomcat (Factory Cat) 250Tomcat (Factory Cat) GTX 34Tomcat (Factory Cat) GTX 30Tomcat (Factory Cat) 250SAMSFactory Cat 350Tomcat (Factory Cat) 350Factory Cat XRTomcat (Factory Cat)...
    $213.73
Can't find what you need? Click here or call 1-800-USA-CLEAN
Need a professional? We offer in person service. Learn more
Need a technician?

Diagrams

Manuals

Bulletins

Docs

best live chat
