Tennant T5

Interested in purchasing equipment?

Contact our Experts!

Need help finding a part?

Ask our Team! The Tennant T5 is a battery-powered, walk-behind autoscrubber. A range of disk and cylindrical brush sizes allow for use in a variety of areas. With built in ec-H2O and FaST technology, the T5 utilizes less water and can operate with less, or entirely without, cleaning detergent. Intuitive controls help train new operators which leads to safer, consistent operation.

Working width, disc: 24 in (60 cm), 28 in (70 cm), 32 in (80 mm)
Working width, cylindrical: 26 in (65 cm), 32 in (80 cm)
Productivity per hour (theoretical max), disc: 26,400 sq ft (2,500 sq m) (24 in), 30,800 sq ft (2900 sq m) (28 in), 35,200 sq ft (3,300 sq m) (32 in)
Productivity per hour (theoretical max), cylindrical: 28,600 sq ft (2,700 sq m) (26 in), 35,200 sq ft (3,300 sq m) (32 in)
Productivity per hour (estimated actual, conventional), disc: 17,875 sq ft (1,660 sq m) (24 in), 20,800 sq ft (1,900 sq m) (24 in), 24,000 sq ft (2200 sq m) (32 in)
Productivity per hour (estimated actual, conventional), cylindrical: 19,200 sq ft (1,790 sq m) (26 in), 24,000 sq ft (2,200 sq m) (32 in)
Productivity per hour (estimated actual, ec-H2O™ or FaST®), disc: 20,075 sq ft (1,900 sq m) (24 in), 22,750 sq ft (2,100 sq m) (28 in), 26,250 sq ft (2400 sq m) (32 in)
Productivity per hour (estimated actual, ec-H2O™ or FaST®), cylindrical: 21,000 sq ft (2,000 sq m) (26 in), 26,250 sq ft (2,400 sq m) (32 in)
Brush motor horespower, disc: 0.75 hp (0.56 kW) (2)
Brush motor horespower, cylindrical: 0.63 hp (0.47 kW) (2)
Brush rotation speed, disc: 220 rpm
Brush rotation speed, cylindrical: 1500 rpm
Brush/pad down pressure (3 settings): 40, 80, 120lb (18, 36, 54 kg)
Solution tank capacity: 22.5gal (85L)
Recovery tank capacity (includes demisting chamber): 27gal (102L)
Vacuum motor, 3-stage: 0.85 hp (0.64 kW)
Waterlift: 62 in (157 cm)
System Voltage, charger included: 24V (4x 6V batteries)
Standard run time: 6V (240Ah), up to 5.5h
Optional sealed run time: 6V (200Ah), up to 4.5h
Propel speed (variable to), transport: 2.7 mph (4.3 km/h)
Propel speed (variable to), scrubbing: 2.5 mph (4.0 km/h)
Gradeability (ramp climb), scrubbing/transporting (full): 3.0deg / 5.0deg
Gradeability (ramp climb), trailer ramps (empty): 11deg
Dimensions, Length x Width x Height, disc: 52.9 x 25.4 x 44 in (134 x 64 x 112 cm) (24 in), 55.7 x 29 x 44 in (141 x 74 x 112 cm) (28 in), 58.4 x 33 x 44 in (148 x 84 x 112 cm) (32 in)
Dimensions, Length x Width x Height, cylindrical: 55.4 x 28 x 44 in (141 x 71 x 112 cm) (26 in), 55.4 x 34 x 44 in (141 x 86 x 112 cm) (32 in)
Squeegee width, disc: 35.7 in (91 cm) (24 in), 41.3 in (105 cm) (28 in), 46.6 in (118 cm) (32 in)
Squeegee width, cylindrical: 41.3 in (105 cm) (26 in), 46.6 in (118 cm) (32 in)
Product weight (with batteries), disk: 580lb (263 kg) (24 in), 609lb (276 kg) (28 in), 621lb (282 kg) (32 in)
Product weight (with batteries), cylindrical: 621lb (282 kg) (26 in), 629lb (285 kg) (32 in)
Sound level: 68 dBA

Parts & Support
T5

Interested in purchasing equipment?

Contact our Experts

Need help finding a part?

Ask our Team!
The Tennant T5 is a battery-powered, walk-behind autoscrubber. A range of disk and cylindrical brush sizes allow for use in a variety of areas. With built in ec-H2O and FaST technology, the T5 utilizes less water and can operate with less, or entirely without, cleaning detergent. Intuitive controls help train new operators which leads to safer, consistent operation.

Working width, disc: 24 in (60 cm), 28 in (70 cm), 32 in (80 mm)
Working width, cylindrical: 26 in (65 cm), 32 in (80 cm)
Productivity per hour (theoretical max), disc: 26,400 sq ft (2,500 sq m) (24 in), 30,800 sq ft (2900 sq m) (28 in), 35,200 sq ft (3,300 sq m) (32 in)
Productivity per hour (theoretical max), cylindrical: 28,600 sq ft (2,700 sq m) (26 in), 35,200 sq ft (3,300 sq m) (32 in)
Productivity per hour (estimated actual, conventional), disc: 17,875 sq ft (1,660 sq m) (24 in), 20,800 sq ft (1,900 sq m) (24 in), 24,000 sq ft (2200 sq m) (32 in)
Productivity per hour (estimated actual, conventional), cylindrical: 19,200 sq ft (1,790 sq m) (26 in), 24,000 sq ft (2,200 sq m) (32 in)
Productivity per hour (estimated actual, ec-H2O™ or FaST®), disc: 20,075 sq ft (1,900 sq m) (24 in), 22,750 sq ft (2,100 sq m) (28 in), 26,250 sq ft (2400 sq m) (32 in)
Productivity per hour (estimated actual, ec-H2O™ or FaST®), cylindrical: 21,000 sq ft (2,000 sq m) (26 in), 26,250 sq ft (2,400 sq m) (32 in)
Brush motor horespower, disc: 0.75 hp (0.56 kW) (2)
Brush motor horespower, cylindrical: 0.63 hp (0.47 kW) (2)
Brush rotation speed, disc: 220 rpm
Brush rotation speed, cylindrical: 1500 rpm
Brush/pad down pressure (3 settings): 40, 80, 120lb (18, 36, 54 kg)
Solution tank capacity: 22.5gal (85L)
Recovery tank capacity (includes demisting chamber): 27gal (102L)
Vacuum motor, 3-stage: 0.85 hp (0.64 kW)
Waterlift: 62 in (157 cm)
System Voltage, charger included: 24V (4x 6V batteries)
Standard run time: 6V (240Ah), up to 5.5h
Optional sealed run time: 6V (200Ah), up to 4.5h
Propel speed (variable to), transport: 2.7 mph (4.3 km/h)
Propel speed (variable to), scrubbing: 2.5 mph (4.0 km/h)
Gradeability (ramp climb), scrubbing/transporting (full): 3.0deg / 5.0deg
Gradeability (ramp climb), trailer ramps (empty): 11deg
Dimensions, Length x Width x Height, disc: 52.9 x 25.4 x 44 in (134 x 64 x 112 cm) (24 in), 55.7 x 29 x 44 in (141 x 74 x 112 cm) (28 in), 58.4 x 33 x 44 in (148 x 84 x 112 cm) (32 in)
Dimensions, Length x Width x Height, cylindrical: 55.4 x 28 x 44 in (141 x 71 x 112 cm) (26 in), 55.4 x 34 x 44 in (141 x 86 x 112 cm) (32 in)
Squeegee width, disc: 35.7 in (91 cm) (24 in), 41.3 in (105 cm) (28 in), 46.6 in (118 cm) (32 in)
Squeegee width, cylindrical: 41.3 in (105 cm) (26 in), 46.6 in (118 cm) (32 in)
Product weight (with batteries), disk: 580lb (263 kg) (24 in), 609lb (276 kg) (28 in), 621lb (282 kg) (32 in)
Product weight (with batteries), cylindrical: 621lb (282 kg) (26 in), 629lb (285 kg) (32 in)
Sound level: 68 dBA

Tennant T5 Parts and Support

The Tennant T5 is a battery-powered, walk-behind autoscrubber. A range of disk and cylindrical brush sizes allow for use in a variety of areas. With built in ec-H2O and FaST technology, the T5 utilizes less water and can operate with less, or entirely without, cleaning detergent. Intuitive controls help train new operators which leads to safer, consistent operation.

Working width, disc: 24 in (60 cm), 28 in (70 cm), 32 in (80 mm)
Working width, cylindrical: 26 in (65 cm), 32 in (80 cm)
Productivity per hour (theoretical max), disc: 26,400 sq ft (2,500 sq m) (24 in), 30,800 sq ft (2900 sq m) (28 in), 35,200 sq ft (3,300 sq m) (32 in)
Productivity per hour (theoretical max), cylindrical: 28,600 sq ft (2,700 sq m) (26 in), 35,200 sq ft (3,300 sq m) (32 in)
Productivity per hour (estimated actual, conventional), disc: 17,875 sq ft (1,660 sq m) (24 in), 20,800 sq ft (1,900 sq m) (24 in), 24,000 sq ft (2200 sq m) (32 in)
Productivity per hour (estimated actual, conventional), cylindrical: 19,200 sq ft (1,790 sq m) (26 in), 24,000 sq ft (2,200 sq m) (32 in)
Productivity per hour (estimated actual, ec-H2O™ or FaST®), disc: 20,075 sq ft (1,900 sq m) (24 in), 22,750 sq ft (2,100 sq m) (28 in), 26,250 sq ft (2400 sq m) (32 in)
Productivity per hour (estimated actual, ec-H2O™ or FaST®), cylindrical: 21,000 sq ft (2,000 sq m) (26 in), 26,250 sq ft (2,400 sq m) (32 in)
Brush motor horespower, disc: 0.75 hp (0.56 kW) (2)
Brush motor horespower, cylindrical: 0.63 hp (0.47 kW) (2)
Brush rotation speed, disc: 220 rpm
Brush rotation speed, cylindrical: 1500 rpm
Brush/pad down pressure (3 settings): 40, 80, 120lb (18, 36, 54 kg)
Solution tank capacity: 22.5gal (85L)
Recovery tank capacity (includes demisting chamber): 27gal (102L)
Vacuum motor, 3-stage: 0.85 hp (0.64 kW)
Waterlift: 62 in (157 cm)
System Voltage, charger included: 24V (4x 6V batteries)
Standard run time: 6V (240Ah), up to 5.5h
Optional sealed run time: 6V (200Ah), up to 4.5h
Propel speed (variable to), transport: 2.7 mph (4.3 km/h)
Propel speed (variable to), scrubbing: 2.5 mph (4.0 km/h)
Gradeability (ramp climb), scrubbing/transporting (full): 3.0deg / 5.0deg
Gradeability (ramp climb), trailer ramps (empty): 11deg
Dimensions, Length x Width x Height, disc: 52.9 x 25.4 x 44 in (134 x 64 x 112 cm) (24 in), 55.7 x 29 x 44 in (141 x 74 x 112 cm) (28 in), 58.4 x 33 x 44 in (148 x 84 x 112 cm) (32 in)
Dimensions, Length x Width x Height, cylindrical: 55.4 x 28 x 44 in (141 x 71 x 112 cm) (26 in), 55.4 x 34 x 44 in (141 x 86 x 112 cm) (32 in)
Squeegee width, disc: 35.7 in (91 cm) (24 in), 41.3 in (105 cm) (28 in), 46.6 in (118 cm) (32 in)
Squeegee width, cylindrical: 41.3 in (105 cm) (26 in), 46.6 in (118 cm) (32 in)
Product weight (with batteries), disk: 580lb (263 kg) (24 in), 609lb (276 kg) (28 in), 621lb (282 kg) (32 in)
Product weight (with batteries), cylindrical: 621lb (282 kg) (26 in), 629lb (285 kg) (32 in)
Sound level: 68 dBA

Parts

  • Product
  • Qty in Cart
  • Quantity
  • Price
  • Subtotal
  • ships same day
    Non-OEM
    - Key switch with keys 991-5161

    Key switch with keys 991-5161

    $16.04
    Matches:10114021462888000202-2300290-23446.KSO-SC_81515632571876-9-888176988818.664-652.086646520991-5170SYKSO-SCAlternative items:Below are other options that may meet your needs.Key switch$25.39993-0669Commonly purchased together:May fit on these...
    991-5161
    $16.04
    Qty in Cart: 0
    Price:
    $16.04
    Subtotal:
  • OEM
    1006415 - Hose 1/4 x 3 foot 175-5305

    Hose 1/4 x 3 foot 175-5305

    $47.18
    Specifications:Length: 37 in Width: 0.4 in Weight: 0.139 poundsInside Diameter: 0.25 INOutside Diameter: 0.4 INLength: 37 INUsed for: SolutionConstruction Type: StandardMaterial: RubberColor: ClearMatches:100641586876910Commonly purchased...
    175-5305
    $47.18
    Qty in Cart: 0
    Price:
    $47.18
    Subtotal:
  • ships same day
    Non-OEM
    - 50amp charger plug SB50 with pins (red) 991-9284

    50amp charger plug SB50 with pins (red) 991-9284

    $6.47
    Matches:164-0833170-1404175-2041175-7491202-0359204354206-0717206-071823-9-209-123-9-20912392091272-96643BY214-2574-2594096666053876331G16W05670060450342572700011727000128.663-411...
    991-9284
    $6.47
    Qty in Cart: 0
    Price:
    $6.47
    Subtotal:
  • Non-OEM
    26040-83 AGM - 24V 20amp AGM battery charger with small SB50 red plug 162-5070

    24V 20amp AGM battery charger with small SB50 red plug 162-5070

    $429.37
    Specifications:Chemical Makeup: AGMCharger Plug Color: RedMatches:162-5060162-507026040-83 AGM7006045036789.110-410.09.114-416.09114416098486810Alternative items:Below are other options that may meet your needs.CHARGER 24V 20A SCR, SEALED (50A RED)$681...
    162-5070
    $429.37
    Qty in Cart: 0
    Price:
    $429.37
    Subtotal:
  • ships same day
    Non-OEM
    - Vinyl tubing 1/2 x 3/4 (sold by the inch) 991-1405

    Vinyl tubing 1/2 x 3/4 (sold by the inch) 991-1405

    $0.44
    Specifications:Weight: 0.006 poundsMatches:057869164-0469164-1404172-2083172428174-719020-495929202-068222278272-2220290-416433348437913987-9-115087-9-1180879118088050100KE057869Commonly purchased together:May fit on these models - select model and...
    991-1405
    $0.44
    Qty in Cart: 0
    Price:
    $0.44
    Subtotal:
  • OEM
    4012505 - ec-H20 module (OBSOLETE) 275-9935

    ec-H20 module (OBSOLETE) 275-9935

    Call for availability
    Specifications:Weight: 4.418 poundsMatches:275-4749275-59314012505880976209004561900616190062699007970Commonly purchased together:May fit on these models - select model and diagram to confirmTennant 5680Tennant T3Nobles SS5Tennant T7Tennant T5Nobles...
    275-9935
    $856.21
    Qty in Cart: 0
    Price:
    $856.21
    Subtotal:
  • OEM
    1062813 - Logo decal (Tennant Industrial) 275-9896

    Logo decal (Tennant Industrial) 275-9896

    $61.12
    Specifications:Weight: 0.011 poundsMatches:1062813May fit on these models - select model and diagram to confirmTennant 5680Tennant T3Tennant T7Tennant T5Nobles SPEED SCRUB RIDERTennant 5700 SERIESTennant T5 ETennant T12Tennant T16Tennant T3 PLUSTennant...
    275-9896
    $61.12
    Qty in Cart: 0
    Price:
    $61.12
    Subtotal:
  • OEM
    1062814 - Logo decal (white) 275-9840

    Logo decal (white) 275-9840

    $17.10
    Specifications:Weight: 0.013 poundsMatches:1062814May fit on these models - select model and diagram to confirmTennant T3Tennant T7Tennant T5Nobles SPEED SCRUB RIDERTennant T5 ETennant T16Tennant T3 PLUSTennant T5
    275-9840
    $17.10
    Qty in Cart: 0
    Price:
    $17.10
    Subtotal:
  • OEM
    1035355 - 2 foot hose (clear) 275-9404

    2 foot hose (clear) 275-9404

    $40.15
    Specifications:Weight: 0.333 poundsMatches:103535591009660991-1408Commonly purchased together:May fit on these models - select model and diagram to confirmTennant T300Tennant T7Tennant T5Tennant T300ENobles SPEED SCRUB RIDERNobles SPEED SCRUB 300Tennant...
    275-9404
    $40.15
    Qty in Cart: 0
    Price:
    $40.15
    Subtotal:
  • OEM
    20950 - Straight plastic fitting (Tennant Industrial) 275-8703

    Straight plastic fitting (Tennant Industrial) 275-8703

    $7.01
    Specifications:Weight: 0.009 poundsType: StraightMaterial: PlasticMatches:20950May fit on these models - select model and diagram to confirmTennant 5680Tennant T7AMRNobles SS5Tennant T300Tennant T7Tennant T5Nobles SPEED SCRUB RIDERTennant T5 ETennant...
    275-8703
    $7.01
    Qty in Cart: 0
    Price:
    $7.01
    Subtotal:
  • OEM
    1018505 - Horn 275-8062

    Horn 275-8062

    $269.56
    Specifications:Weight: 0.3 poundsMatches:1018505175-49133929374035813420826291037230Commonly purchased together:May fit on these models - select model and diagram to confirmTennant 5680Tennant T3Tennant T7AMRNobles SS5Tennant T7Tennant T5Nobles SPEED...
    275-8062
    $269.56
    Qty in Cart: 0
    Price:
    $269.56
    Subtotal:
  • OEM
    4201690 - 24V onboard battery charger kit 275-6572

    24V onboard battery charger kit 275-6572

    $1,017.61
    Specifications:Weight: 8.385 poundsVolts: 24Type: OnboardCharger Plug Color: RedMatches:9008898Commonly purchased together:May fit on these models - select model and diagram to confirmTennant T5Tennant T5 ETennant T5
    275-6572
    $1,017.61
    Qty in Cart: 0
    Price:
    $1,017.61
    Subtotal:
  • OEM

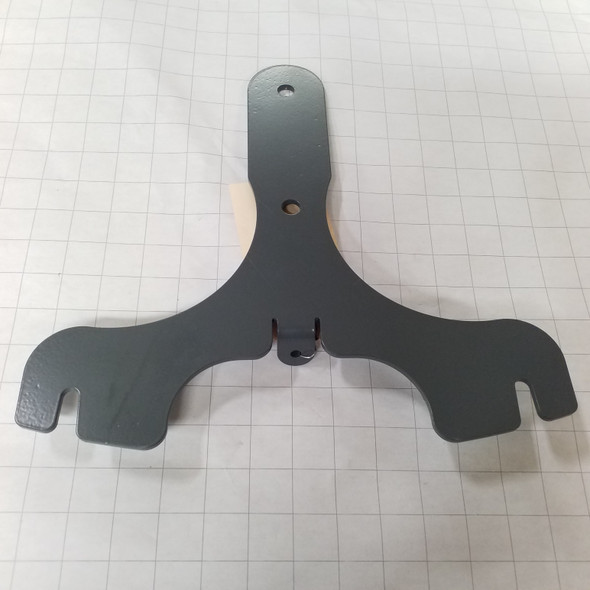

    1066260 - Squeegee mounting bracket 275-6567

    Squeegee mounting bracket 275-6567

    $66.00
    Specifications:Weight: 2.4 poundsMatches:106626088099510May fit on these models - select model and diagram to confirmTennant T5Tennant T5
    275-6567
    $66.00
    Qty in Cart: 0
    Price:
    $66.00
    Subtotal:
  • OEM
    1057922 - Cylindrical head door assembly 275-6281

    Cylindrical head door assembly 275-6281

    $152.02
    Specifications:Weight: 1.347 poundsMatches:105792288079840May fit on these models - select model and diagram to confirmNobles SS5Tennant T7Tennant T5Nobles SPEED SCRUB RIDERTennant T5 ETennant 7100Tennant T5
    275-6281
    $152.02
    Qty in Cart: 0
    Price:
    $152.02
    Subtotal:
  • OEM
    1041030 - Battery terminal cover (black) 275-5948

    Battery terminal cover (black) 275-5948

    $4.58
    Specifications:Length: 2.5 in Width: 1.35 in Height: 0.48 in Weight: 0.001 poundsMatches:1041030May fit on these models - select model and diagram to confirmTennant 5680Tennant T3Nobles SS5Tennant T300Tennant T7Tennant T5Tennant 1610Nobles SPEED...
    275-5948
    $4.58
    Qty in Cart: 0
    Price:
    $4.58
    Subtotal:
  • OEM
    1030441 - Check valve (brown) (OBSOLETE) 275-5930

    Check valve (brown) (OBSOLETE) 275-5930

    Call for availability
    Specifications:Weight: 0.005 poundsMatches:1030441May fit on these models - select model and diagram to confirmTennant 5680Tennant T3Nobles SS5Tennant T7Tennant T5Nobles SPEED SCRUB RIDERNobles SS3Tennant T5 ETennant T16Tennant T3 PLUSTennant 7100Tennant...
    275-5930
    $21.78
    Qty in Cart: 0
    Price:
    $21.78
    Subtotal:
  • OEM
    1030444 - Check valve (white) 275-5929

    Check valve (white) 275-5929

    $33.00
    Specifications:Weight: 0.007 poundsMatches:1030444May fit on these models - select model and diagram to confirmTennant 5680Tennant T3Nobles SS5Tennant T7Tennant T5Nobles SPEED SCRUB RIDERNobles SS3Tennant T5 ETennant T16Tennant T3 PLUSTennant 7100Tennant...
    275-5929
    $33.00
    Qty in Cart: 0
    Price:
    $33.00
    Subtotal:
  • OEM
    1047470 - 10amp fuse 275-5885

    10amp fuse 275-5885

    $3.58
    Specifications:Weight: 0.003 poundsType: FuseMatches:1047470May fit on these models - select model and diagram to confirmTennant T3Tennant T7AMRNobles SS5Tennant T7Tennant T5Nobles SPEED SCRUB RIDERNobles SS3Tennant T5 ETennant T3 ORBITALTennant T5
    275-5885
    $3.58
    Qty in Cart: 0
    Price:
    $3.58
    Subtotal:
  • OEM
    9003008 - FaST injector seal kit 275-5318

    FaST injector seal kit 275-5318

    $72.38
    Specifications:Weight: 0.009 poundsMatches:9003008May fit on these models - select model and diagram to confirmTennant 5680Tennant T3Nobles SS5Tennant T7Tennant T5Nobles SPEED SCRUB RIDERNobles SS3Tennant T5 ETennant T3 PLUSTennant 7100Tennant T15Tennant...
    275-5318
    $72.38
    Qty in Cart: 0
    Price:
    $72.38
    Subtotal:
  • OEM
    1044386 - Motor mounting bracket 275-5308

    Motor mounting bracket 275-5308

    $50.82
    Specifications:Weight: 0.454 poundsMatches:10211721044386275-1495May fit on these models - select model and diagram to confirmNobles SS5Tennant T7Tennant T5Nobles SPEED SCRUB RIDERTennant T5 ETennant T5
    275-5308
    $50.82
    Qty in Cart: 0
    Price:
    $50.82
    Subtotal:
  • Total: items /

Adding your products to cart

View Cart Continue Shopping
Can't find what you need? Click here or call 1-800-USA-CLEAN
Need a professional? We offer in person service. Learn more
Need a technician?

Diagrams

Manuals

Bulletins

Videos

Repair Guides

Docs

best live chat
