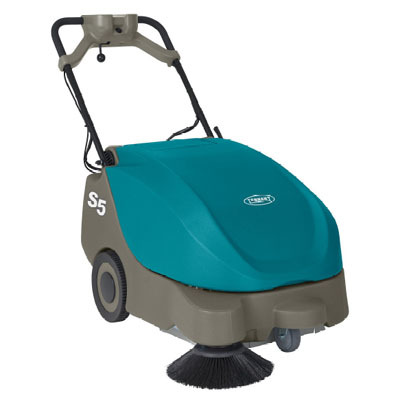

The S5's 24 in/620 mm sweeping path is perfect for tight spaces and sweeping around clothing racks or retail displays.
Versatile Anytime, Anywhere Cleaning
The S5's flexible design is well suited for indoor and outdoor cleaning on hard and soft floor surfaces. Battery operation and brush assist cleaning simple anytime, anywhere.
Rely on Quality Construction and Proven Components
Major components field-proven in commercial applications for multiple years. Durable roto-molded design is backed by a 2 year, TennantTrue warranty, and side brush protected by brush bumper.
Smart, Intuitive Design
Increase productivity with simple, no-tool side brush adjustments and easy-to-use operation for less time training and more time cleaning. The sweeper's adjustable, ergonomically designed handle makes operator comfort a priority.
Cleaning path 24 in / 620 mm
Productivity
Practical (per ISSA 540 cleaning times) 13,850 ft²/hr / 1,290 m²/hr
Brush speed 390 rpm
Main brush length 16 in / 400 mm
Side brush diameter 12 in / 300 mm
Debris hopper volume capacity 1.3 ft3 / 37 L
Power transmission Maintenance-free, high-performance belt drive
Battery type 12V Gel
Charger On board
Filtration type 99.97 @ .3 microns
Filter area 13 ft² / 1.2 m²
Length 36.3 in / 923 mm
Width 25.5 in / 650 mm
Height 22 in / 557 mm
Weight
With battery 121 lb / 55 kg
Without battery 88 lb / 40kg
Sound level (operator’s ear) 62 dBA
Tennant S5 Parts and Support
Compact, Maneuverable Design
The S5's 24 in/620 mm sweeping path is perfect for tight spaces and sweeping around clothing racks or retail displays.
Versatile Anytime, Anywhere Cleaning
The S5's flexible design is well suited for indoor and outdoor cleaning on hard and soft floor surfaces. Battery operation and brush assist cleaning simple anytime, anywhere.
Rely on Quality Construction and Proven Components
Major components field-proven in commercial applications for multiple years. Durable roto-molded design is backed by a 2 year, TennantTrue warranty, and side brush protected by brush bumper.
Smart, Intuitive Design
Increase productivity with simple, no-tool side brush adjustments and easy-to-use operation for less time training and more time cleaning. The sweeper's adjustable, ergonomically designed handle makes operator comfort a priority.
Cleaning path 24 in / 620 mm
Productivity
Practical (per ISSA 540 cleaning times) 13,850 ft²/hr / 1,290 m²/hr
Brush speed 390 rpm
Main brush length 16 in / 400 mm
Side brush diameter 12 in / 300 mm
Debris hopper volume capacity 1.3 ft3 / 37 L
Power transmission Maintenance-free, high-performance belt drive
Battery type 12V Gel
Charger On board
Filtration type 99.97 @ .3 microns
Filter area 13 ft² / 1.2 m²
Length 36.3 in / 923 mm
Width 25.5 in / 650 mm
Height 22 in / 557 mm
Weight
With battery 121 lb / 55 kg
Without battery 88 lb / 40kg
Sound level (operator’s ear) 62 dBA
The S5's 24 in/620 mm sweeping path is perfect for tight spaces and sweeping around clothing racks or retail displays.
Versatile Anytime, Anywhere Cleaning
The S5's flexible design is well suited for indoor and outdoor cleaning on hard and soft floor surfaces. Battery operation and brush assist cleaning simple anytime, anywhere.
Rely on Quality Construction and Proven Components
Major components field-proven in commercial applications for multiple years. Durable roto-molded design is backed by a 2 year, TennantTrue warranty, and side brush protected by brush bumper.
Smart, Intuitive Design
Increase productivity with simple, no-tool side brush adjustments and easy-to-use operation for less time training and more time cleaning. The sweeper's adjustable, ergonomically designed handle makes operator comfort a priority.
Cleaning path 24 in / 620 mm
Productivity
Practical (per ISSA 540 cleaning times) 13,850 ft²/hr / 1,290 m²/hr
Brush speed 390 rpm
Main brush length 16 in / 400 mm
Side brush diameter 12 in / 300 mm
Debris hopper volume capacity 1.3 ft3 / 37 L
Power transmission Maintenance-free, high-performance belt drive
Battery type 12V Gel
Charger On board
Filtration type 99.97 @ .3 microns
Filter area 13 ft² / 1.2 m²
Length 36.3 in / 923 mm
Width 25.5 in / 650 mm
Height 22 in / 557 mm
Weight
With battery 121 lb / 55 kg
Without battery 88 lb / 40kg
Sound level (operator’s ear) 62 dBA
