S12

S12

Tennant S12

Interested in purchasing equipment?

Contact our Experts!

Need help finding a part?

Ask our Team! The Tennant S12 is a very compact battery driven ride-on sweeper with a sweeping path of 90cm. Due to its high manoeuvrability and the retractable side brushes it can easily reach tight corners. The hopper pops out easily for quick emptying, brushes can be changed without tools and filter cleaning is a snap. Low effort steering for low operator fatigue. The front side brush and the 70cm main brush sweep up 85L of litter and debris into its hopper. The S12 also utilises a standard dust flap for picking-up bulky debris.

• Overthrow sweeping system
• Sweeps on hard & soft flooring, indoors and outdoors
• Glide-out hopper with large built-in wheels
• Side brush (right hand standard, left hand optional)
• Roto-moulded covers
• No-tool brush & filter change

Machine Dimensions
Working width (single side brush) cm 90
Working width (dual side brush) cm 110
Dimensions (lxwxh) cm 143x90x114
Machine weight (without batteries) kg 212
Sweeping System
Area coverage theoretical (max) m2
/h 6820
Area coverage practical (max) m2
/h 4650
Length main brush x dia cm 70 x 28
Diameter side brush cm 41
Sweeping principle overthrow
Transaxle drive yes/no yes
Recovery System
Panel filter capacity m2 4.5
Airflow L/s 250
Water lift kPa 900
Hopper capacity volume L 85L
Hopper capacity weight kg 90
Hopper dump height cm n/a
Power
Power source battery 24V
Total power consumption W 1240
Protection class I/II/III III
Sound level (DIN45635) dB(A) 72
Propelling
Transport speed km/h 6.2
Working speed km/h 6.2
Climbing capacity % 18
Turning circle cm 221

Parts & Support
S12

Interested in purchasing equipment?

Contact our Experts

Need help finding a part?

Ask our Team!
The Tennant S12 is a very compact battery driven ride-on sweeper with a sweeping path of 90cm. Due to its high manoeuvrability and the retractable side brushes it can easily reach tight corners. The hopper pops out easily for quick emptying, brushes can be changed without tools and filter cleaning is a snap. Low effort steering for low operator fatigue. The front side brush and the 70cm main brush sweep up 85L of litter and debris into its hopper. The S12 also utilises a standard dust flap for picking-up bulky debris.

• Overthrow sweeping system
• Sweeps on hard & soft flooring, indoors and outdoors
• Glide-out hopper with large built-in wheels
• Side brush (right hand standard, left hand optional)
• Roto-moulded covers
• No-tool brush & filter change

Machine Dimensions
Working width (single side brush) cm 90
Working width (dual side brush) cm 110
Dimensions (lxwxh) cm 143x90x114
Machine weight (without batteries) kg 212
Sweeping System
Area coverage theoretical (max) m2
/h 6820
Area coverage practical (max) m2
/h 4650
Length main brush x dia cm 70 x 28
Diameter side brush cm 41
Sweeping principle overthrow
Transaxle drive yes/no yes
Recovery System
Panel filter capacity m2 4.5
Airflow L/s 250
Water lift kPa 900
Hopper capacity volume L 85L
Hopper capacity weight kg 90
Hopper dump height cm n/a
Power
Power source battery 24V
Total power consumption W 1240
Protection class I/II/III III
Sound level (DIN45635) dB(A) 72
Propelling
Transport speed km/h 6.2
Working speed km/h 6.2
Climbing capacity % 18
Turning circle cm 221

Tennant S12 Parts and Support

The Tennant S12 is a very compact battery driven ride-on sweeper with a sweeping path of 90cm. Due to its high manoeuvrability and the retractable side brushes it can easily reach tight corners. The hopper pops out easily for quick emptying, brushes can be changed without tools and filter cleaning is a snap. Low effort steering for low operator fatigue. The front side brush and the 70cm main brush sweep up 85L of litter and debris into its hopper. The S12 also utilises a standard dust flap for picking-up bulky debris.

• Overthrow sweeping system
• Sweeps on hard & soft flooring, indoors and outdoors
• Glide-out hopper with large built-in wheels
• Side brush (right hand standard, left hand optional)
• Roto-moulded covers
• No-tool brush & filter change

Machine Dimensions
Working width (single side brush) cm 90
Working width (dual side brush) cm 110
Dimensions (lxwxh) cm 143x90x114
Machine weight (without batteries) kg 212
Sweeping System
Area coverage theoretical (max) m2
/h 6820
Area coverage practical (max) m2
/h 4650
Length main brush x dia cm 70 x 28
Diameter side brush cm 41
Sweeping principle overthrow
Transaxle drive yes/no yes
Recovery System
Panel filter capacity m2 4.5
Airflow L/s 250
Water lift kPa 900
Hopper capacity volume L 85L
Hopper capacity weight kg 90
Hopper dump height cm n/a
Power
Power source battery 24V
Total power consumption W 1240
Protection class I/II/III III
Sound level (DIN45635) dB(A) 72
Propelling
Transport speed km/h 6.2
Working speed km/h 6.2
Climbing capacity % 18
Turning circle cm 221

Parts

  • Product
  • Qty in Cart
  • Quantity
  • Price
  • Subtotal
  • ships same day
    OEM
    1014832 - Horn switch 275-9354

    Horn switch 275-9354

    $35.53
    Specifications:Weight: 0.035 poundsMatches:101483291024600Commonly purchased together:Fits on:Tennant T7Tennant B10Tennant T350Tennant R14Nobles SPEED SCRUB RIDERNobles STRIVE RIDERTennant S12Nobles SPEED SCRUB 350Nobles SPEEDGLEAM RIDER BURNISHERTennant...
    $35.53
    Qty in Cart: 0
    Price:
    $35.53
    Subtotal:
  • OEM
    1012437 - Steering shaft bellows 275-8081

    Steering shaft bellows 275-8081

    $9.57
    Specifications:Weight: 0.084 poundsMatches:101243791031750Commonly purchased together:Fits on:Tennant T7AMRTennant T7Tennant B10Tennant T350Tennant R14Tennant T380AMRNobles SPEED SCRUB RIDERNobles STRIVE RIDERTennant S12Nobles SPEED SCRUB 350Nobles...
    $9.57
    Qty in Cart: 0
    Price:
    $9.57
    Subtotal:
  • ships same day
    OEM
    1011735 - Safety shut-off switch 275-1416

    Safety shut-off switch 275-1416

    $40.81
    Specifications:Length: 3 in Width: 1.35 in Height: 3 in Weight: 0.013 poundsMatches:10117351266688175-1218175-12196300976301006569486885910Commonly purchased together:May fit on these models - select model and diagram to confirmNobles SS5Tennant...
    $40.81
    Qty in Cart: 0
    Price:
    $40.81
    Subtotal:
  • ships same day
    OEM
    1065638 - Battery cable 375-0041

    Battery cable 375-0041

    $62.70
    Specifications:Weight: 0.496 poundsMatches:10656389.109-954.09109954099343Fits on:Tennant 5680Tennant 5700 SERIESTennant 7100Tennant S12Tennant S12
    $62.70
    Qty in Cart: 0
    Price:
    $62.70
    Subtotal:
  • ships same day
    Non-OEM
    - 6V 224Ah AGM battery (Group GC2) 162-0043

    6V 224Ah AGM battery (Group GC2) 162-0043

    $456.50
    Do you also need battery jumper cables? If so, add part number 998-0010.Specifications:Length: 10.25 in Width: 7.06 in Height: 10.94 in Weight: 66 poundsAmp Hours: 224Voltage: 6Chemical Makeup:...
    $456.50
    Qty in Cart: 0
    Price:
    $456.50
    Subtotal:
  • ships same day
    Non-OEM
    - 6V 225Ah wet battery (SNSR) 162-0003

    6V 225Ah wet battery (SNSR) 162-0003

    $269.50
    Specifications:Length: 10.25 in Width: 7.06 in Height: 11.12 in Weight: 63 poundsAmp Hours: 225Voltage: 6Chemical Makeup:...
    $269.50
    Qty in Cart: 0
    Price:
    $269.50
    Subtotal:
  • ships same day
    OEM

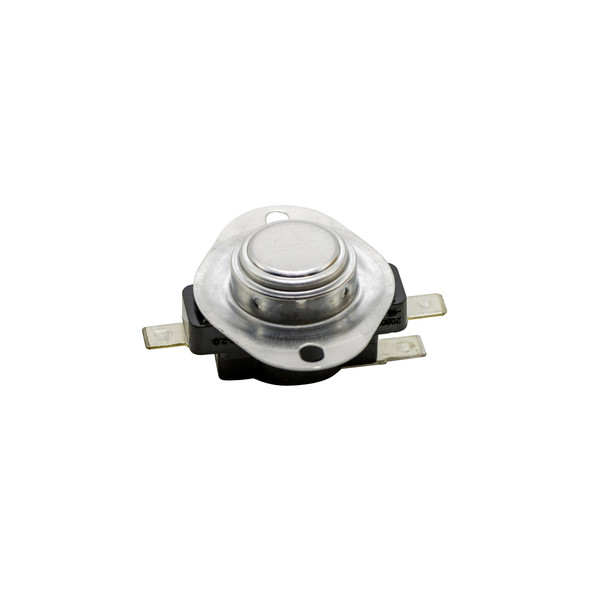

    367679 - Thermostat switch 175-7132

    Thermostat switch 175-7132

    $26.51
    Specifications:Weight: 0.055 poundsMatches:36767988069470Commonly purchased together:Fits on:Tennant 6100Tennant 6100ETennant 4300 ATLVTennant 6200Tennant M17Tennant S16Tennant S12Tennant LITTER HAWKTennant S12Tennant 6100
    $26.51
    Qty in Cart: 0
    Price:
    $26.51
    Subtotal:
  • OEM
    Image not available

    Lever 375-9970

    Call for availability
    Matches:384710Fits on:Tennant S12Tennant S12
    $0.00
    Qty in Cart: 0
    Price:
    $0.00
    Subtotal:
  • OEM
    Image not available

    Trap and flap lever 375-9992

    Call for availability
    Matches:384538May fit on these models - select model and diagram to confirmTennant S12Tennant S12
    $0.00
    Qty in Cart: 0
    Price:
    $0.00
    Subtotal:
  • OEM
    Image not available

    Left hand support 375-9998

    Call for availability
    Matches:384547May fit on these models - select model and diagram to confirmTennant S12Tennant S12
    $0.00
    Qty in Cart: 0
    Price:
    $0.00
    Subtotal:
  • OEM
    Image not available

    Seat frame 375-9963

    Call for availability
    Matches:384706Fits on:Tennant S12Tennant S12
    $0.00
    Qty in Cart: 0
    Price:
    $0.00
    Subtotal:
  • OEM
    Image not available

    Slide bearing 375-9981

    Call for availability
    Matches:384541May fit on these models - select model and diagram to confirmTennant S12Tennant S12
    $0.00
    Qty in Cart: 0
    Price:
    $0.00
    Subtotal:
