Unique tank design channels air flow to separate water from air and reduces foaming. The ball float designed prevents solution or foam from flowing into vacuum fan.
0-95 lbs. of adjustable pad down pressure for light to heavy scrubbing applications
Brush or pad change quickly and easily accomplished with unique no touch plunger release.
Unique parabolic swing squeegee tracks the scrubbing path on turns to contain solution. It leaves clean, traffic ready floors
• Height adjustable operator console
• Auto solution flow start and stop
• Auto vac fan start and stop
• Auto brush start and stop
• Brush pressure gauge
• Battery level indicator
• No-tool brush and squeegee change
Height: 39 in 984 mm
Length: 46 in 1180 mm
Width (w/out squeegee): 21 in 545 mm
Width (w/squeegee): 29 in 725 mm
Weight (w/out batteries): 225 lb 102 kg
Scrubbing Path: 20 in 510 mm
Scrub brush/pad: 1 disc –
Motor, disk: 0.75 hp 0.56 kW
Brush speed: 270 rpm (5300) 220 rpm (5280)
Down Pressure: 0-95 lb 0-43 kg
Solution tank: 12 gal 45 L
Recovery tank: 13 gal 49 L
Vacuum fan (12,600 rpm): 0.75 hp 0.56 kW
Transaxle motor (5300 only): 0.2 hp 0.15 kW

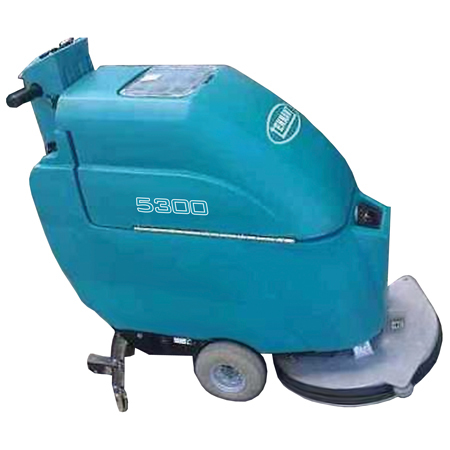

Tennant 5300 Parts and Support
low profile scrub deck cleans tight against edges, in corners, and under obstacles. the unique splash skirt surrounds scrub head to control over spray, conserve water and improve cleaning.
unique tank design channels air flow to separate water from air and reduces foaming. the ball float designed prevents solution or foam from flowing into vacuum fan.
0-95 lbs. of adjustable pad down pressure for light to heavy scrubbing applications
brush or pad change quickly and easily accomplished with unique no touch plunger release.
unique parabolic swing squeegee tracks the scrubbing path on turns to contain solution. it leaves clean, traffic ready floors
• height adjustable operator console
• auto solution flow start and stop
• auto vac fan start and stop
• auto brush start and stop
• brush pressure gauge
• battery level indicator
• no-tool brush and squeegee change
height: 39 in 984 mm
length: 46 in 1180 mm
width (w/out squeegee): 21 in 545 mm
width (w/squeegee): 29 in 725 mm
weight (w/out batteries): 225 lb 102 kg
scrubbing path: 20 in 510 mm
scrub brush/pad: 1 disc –
motor, disk: 0.75 hp 0.56 kw
brush speed: 270 rpm (5300) 220 rpm (5280)
down pressure: 0-95 lb 0-43 kg
solution tank: 12 gal 45 l
recovery tank: 13 gal 49 l
vacuum fan (12,600 rpm): 0.75 hp 0.56 kw
transaxle motor (5300 only): 0.2 hp 0.15 kw
unique tank design channels air flow to separate water from air and reduces foaming. the ball float designed prevents solution or foam from flowing into vacuum fan.
0-95 lbs. of adjustable pad down pressure for light to heavy scrubbing applications
brush or pad change quickly and easily accomplished with unique no touch plunger release.
unique parabolic swing squeegee tracks the scrubbing path on turns to contain solution. it leaves clean, traffic ready floors
• height adjustable operator console
• auto solution flow start and stop
• auto vac fan start and stop
• auto brush start and stop
• brush pressure gauge
• battery level indicator
• no-tool brush and squeegee change
height: 39 in 984 mm
length: 46 in 1180 mm
width (w/out squeegee): 21 in 545 mm
width (w/squeegee): 29 in 725 mm
weight (w/out batteries): 225 lb 102 kg
scrubbing path: 20 in 510 mm
scrub brush/pad: 1 disc –
motor, disk: 0.75 hp 0.56 kw
brush speed: 270 rpm (5300) 220 rpm (5280)
down pressure: 0-95 lb 0-43 kg
solution tank: 12 gal 45 l
recovery tank: 13 gal 49 l
vacuum fan (12,600 rpm): 0.75 hp 0.56 kw
transaxle motor (5300 only): 0.2 hp 0.15 kw
Parts
Can't find what you need? Click here or call 1-800-USA-CLEAN
Need a professional? We offer service both virtually and in person.
Learn more
Diagrams
- View all diagrams
- - Frequently Replaced Parts
- - Batteries
- - Chargers
- - Know Your Machine
- - Pad Holders
- Batteries, Brushes and Charger
- Battery Cable Assembly
- Console Assembly - Accessories
- Console Assembly - Standard
- Console Panel Assembly
- Deluxe Power Wand Assembly
- Electrical Diagram
- Ladder Diagram
- Main Frame Assembly
- Non-Power Wand Assembly
- Non-Power Wand Hose Assembly
- Pads
- Plumbing Assembly
- Power Wand Assembly
- Power Wand Hose Assembly
- Recovery Tank Assembly
- Scrub Head Assembly
- Scrub Head Down Pressure Assembly
- Scrub Head Lift Assembly
- Solution Assembly
- Solution Tank and Vacuum Motor Assembly
- Sound Kit Assembly
- Squeegee Assembly
- Squeegee Lift Assembly
- Wand Pump Plumbing Assembly
Manuals
Repair Guides
- REPLACING THE VAC MOTOR
- ADJUSTING THE POTENTIOMETER
- REPLACING THE SQUEEGEE BLADES
- CLEANING AND REPLACING THE SOLUTION FILTER
