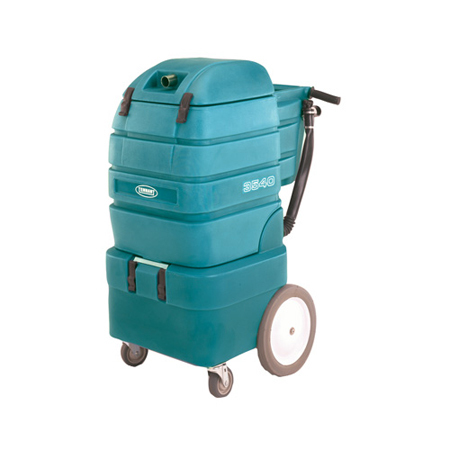

Tennant 3540 Parts, Diagrams, Manuals and more

Interested in purchasing equipment?

Need help finding a part?

Ask our Team!

Parts
Diagrams
Docs

Chassis Construction:Rotationally-molded polyethylene
Caster Diameter: 4 in / 0.16 cm
Wheel Diameter:12 in /30.48 cm
Product Height:43 in / 109.22 cm
Product Length:33 in / 83.82 cm
Product Weight (without batteries):90 lb/ 40.82 kg
Product Width:21 in/ 53 .34 cm
Filter Description: Includes one cloth & one paper bag
Maximum Coverage Rate Per Hour:20,000 ft2/h / 1858 m2/h
Run Time on full charge: 4 hours
Recovery Tank Wet Capacity:16 gal/ 60.75 L
Vacuum Hose Length:10 ft /3.05 m
Airflow at Orifice:70 cfm /1.98 m3/h
Vacuum Motor Amps:23 A
Vacuum Motor Diameter:5.7 in / 14.48 cm
Vacuum Motor Horsepower:.75 hp
Vacuum Motor Stages:3 stage
Vacuum Motor Type:Acustek bypass
Vacuum Motor Voltage:24 V
Vacuum Motor Watts:566 watts
Waterlift at Sealed Orifice:70 in /177.8 cm

Tennant 3540 Parts and Support

parts
diagrams
docs

chassis construction:rotationally-molded polyethylene
caster diameter: 4 in / 0.16 cm
wheel diameter:12 in /30.48 cm
product height:43 in / 109.22 cm
product length:33 in / 83.82 cm
product weight (without batteries):90 lb/ 40.82 kg
product width:21 in/ 53 .34 cm
filter description: includes one cloth & one paper bag
maximum coverage rate per hour:20,000 ft2/h / 1858 m2/h
run time on full charge: 4 hours
recovery tank wet capacity:16 gal/ 60.75 l
vacuum hose length:10 ft /3.05 m
airflow at orifice:70 cfm /1.98 m3/h
vacuum motor amps:23 a
vacuum motor diameter:5.7 in / 14.48 cm
vacuum motor horsepower:.75 hp
vacuum motor stages:3 stage
vacuum motor type:acustek bypass
vacuum motor voltage:24 v
vacuum motor watts:566 watts
waterlift at sealed orifice:70 in /177.8 cm

Parts

Product
Qty in Cart
Quantity
Price
Subtotal

OEM

Cloth filter bag 175-5753

MSRP:

$78.25

Was:

Specifications:Weight: 0.45 poundsMaterial: ClothMaterial: ClothMatches:900105Commonly purchased together:May fit on these models - select model and diagram to confirmTennant 3580Nobles TYPHOONTennant V-WD-16PTennant 3540Tennant 3560Tennant 3530Tennant...

MSRP:

$78.25

Was:

Qty in Cart: 0

Price:

MSRP:

$78.25

Was:

Subtotal:
OEM

34 inch (860mm) squeegee assembly 175-1515

MSRP:

$607.60

Was:

Specifications:Weight: 6.35 poundsMatches:60349470100886874530Commonly purchased together:May fit on these models - select model and diagram to confirmTennant V-WD-15Tennant 3500Tennant 3580Nobles TYPHOON EVTennant 3520Nobles TYPHOONTennant...

MSRP:

$607.60

Was:

Qty in Cart: 0

Price:

MSRP:

$607.60

Was:

Subtotal:
OEM

Handle grip 175-2703

MSRP:

$3.70

Was:

Specifications:Weight: 0.143 poundsType: HandleMatches:1066506175-2324175-7343200815200823222647222648275-6405541205900020008671344088085360Alternative items:Below are other options that may meet your needs.GRIP-HANDLE 290-1138$3.96993-0254Handle grip$2...

MSRP:

$3.70

Was:

Qty in Cart: 0

Price:

MSRP:

$3.70

Was:

Subtotal:
OEM

24V 11amp off-board battery charger 275-9111

MSRP:

$687.60

Was:

Specifications:Weight: 7.28 poundsAmp Hours: 11Matches:-275-9111102921610560341073638275911186863270Commonly purchased together:May fit on these models - select model and diagram to confirmTennant T3Nobles SS3Tennant 3540Tennant T3 ORBITALTennant...

MSRP:

$687.60

Was:

Qty in Cart: 0

Price:

MSRP:

$687.60

Was:

Subtotal:
ships same day

Non-OEM

Vacuum hose with short cuffs 991-5139

MSRP:

$16.94

Was:

Specifications:Used for: VacuumConstruction Type: StandardColor: BlackQuick Connect Type: Male/MaleMatches:1014026175-79668.809-314.0880931409.110-966.09.848-207.098482070Alternative items:Below are other options that may meet your needs.57 inch vacuum...

MSRP:

$16.94

Was:

Qty in Cart: 0

Price:

MSRP:

$16.94

Was:

Subtotal:
ships same day

OEM

Guide wheel with bushing 175-0117

MSRP:

$8.80

Was:

Specifications:Length: 3 in Width: 0.77 in Weight: 0.19 poundsSize: 3Type: FixedStyle: Non-MarkingMaterial: RubberColor: GrayUse: BumperMatches:06976074810149181014918AM103055175-0083175-0478175-4212630450630450AMAlternative items:Below are other...

MSRP:

$8.80

Was:

Qty in Cart: 0

Price:

MSRP:

$8.80

Was:

Subtotal:
OEM

Vacuum hose 2 x 13 inch 175-1578

MSRP:

$17.00

Was:

Specifications:Weight: 0.34 poundsMatches:16048288024690Commonly purchased together:Fits on:Tennant 3580Nobles TYPHOONTennant V-WD-16PTennant 3540Tennant ASC-15Tennant 3560Tennant 3530Tennant V-WD-16BNobles QUICKCLEAN 1500Nobles TYPHOON 1612Nobles...

MSRP:

$17.00

Was:

Qty in Cart: 0

Price:

MSRP:

$17.00

Was:

Subtotal:
ships same day

OEM

Gasket 175-1055

MSRP:

$12.20

Was:

Specifications:Weight: 0.105 poundsMatches:100150Alternative items:Below are other options that may meet your needs.GASKET, SQG .13 THK X 8.00 LG$3.64993-0018Commonly purchased together:Fits on:Tennant V-WD-15Tennant 3500Tennant 3580Nobles SPEEDSCRUB...

MSRP:

$12.20

Was:

Qty in Cart: 0

Price:

MSRP:

$12.20

Was:

Subtotal:
Non-OEM

50amp charger plug SB50 with pins (red) 991-2103

MSRP:

$4.94

Was:

Specifications:Weight: 0.037 poundsAmperage: 50Matches:164-0833170-1404175-2041175-7491202-0359204354206-0717206-071823-9-209-123-9-20912392091272-96643BY214-2574-2594096666053876331G16W05670060450342572700011727000128.663-411...

MSRP:

$4.94

Was:

Qty in Cart: 0

Price:

MSRP:

$4.94

Was:

Subtotal:
ships same day

Non-OEM

Handle grip 991-8571

MSRP:

$2.33

Was:

Matches:200823222648269188133929013885455638854586608610GRA-2000GRA2000MP366900MP6300Alternative items:Below are other options that may meet your needs.GRIP-HANDLE 290-1138$3.96993-0254Commonly purchased together:May fit on these models - select model...

MSRP:

$2.33

Was:

Qty in Cart: 0

Price:

MSRP:

$2.33

Was:

Subtotal:
ships same day

OEM

27 inch rear squeegee plate 175-1069

MSRP:

$31.10

Was:

Specifications:Weight: 0.4 poundsMatches:230725.BKCommonly purchased together:May fit on these models - select model and diagram to confirmTennant V-WD-15Tennant 3500Tennant 3580Nobles SPEEDSCRUB 2001Nobles TYPHOON EVTennant 3520Nobles TYPHOONTennant...

MSRP:

$31.10

Was:

Qty in Cart: 0

Price:

MSRP:

$31.10

Was:

Subtotal:
OEM

Squeegee blade 27 inch (680mm) urethane 175-2036

MSRP:

$34.30

Was:

Specifications:Weight: 0.243 pounds RearMaterial: UrethaneLength: 27Color: YellowMatches:240298240299275-0051603659R75499Alternative items:Below are other options that may meet your needs.27 inch squeegee blade$15.10993-0121BLADE, URETHANE (QBA) 1-7/16...

MSRP:

$34.30

Was:

Qty in Cart: 0

Price:

MSRP:

$34.30

Was:

Subtotal:
