cm battery-powered burnishers! Choose either the pad assisted
model 2510 or 2550 self-propelled unit. The patented floating pad
head design provides 15-40 lbs/7-18 kg of variable down pressure
for superior performance and glides over irregular floors to ensure
even burnishing. These burnishers employ a built-in dust control
system that captures fine particles in a filter bag for better indoor air quality. Airflow created by the pad motion forces dust and particulates through the clean air system. Compact design and a low profile base allow these battery machines to burnish under shelving and fixtures. Cover up to 21,000 ft2/1,951 m2 per hour with greater mobility and productivity.
Motor Power: 3 hp 2238 watts
Motor/Pad RPM: 2000 (Nominal Load), 2500 (No Load)
Variable Pad Pressure: 15-40 lbs 7-18kg
Pad Driver: Flexible, full pad contact
Transport Mode: Pad assist forward motion (2510)
Self-propelled, variable speed (2550)
Main Wheels (Non-marking): (2) 8 in 20.3 cm
Casters (Non-marking): (1) front, 3 in 7.6 cm
Description: (3) 215 ah capacity battery
Continuous Run Time: (2510) Nominal load-2.4 hrs
(2510/2550) Minimum load-3 hrs
Charging Unit Description: 36V DC 25 amp
Product Height: 40 in 102 cm
Product Length: 52 in 132 cm
Product Width: 24 in 61 cm
Product Weight: 525 lbs with batteries 243 kg
Maximum Coverage Rate: 21,000 ft2/hr 1,951 m2/hr
Burnish Width: 20 in 50.8 cm

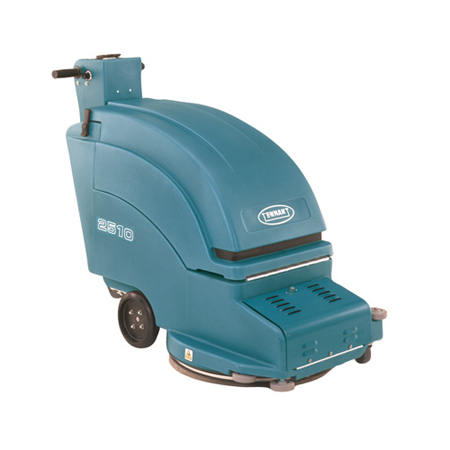

Tennant 2510 Parts and Support
Get high gloss performance and productivity with these 20 in/50.8
cm battery-powered burnishers! Choose either the pad assisted
model 2510 or 2550 self-propelled unit. The patented floating pad
head design provides 15-40 lbs/7-18 kg of variable down pressure
for superior performance and glides over irregular floors to ensure
even burnishing. These burnishers employ a built-in dust control
system that captures fine particles in a filter bag for better indoor air quality. Airflow created by the pad motion forces dust and particulates through the clean air system. Compact design and a low profile base allow these battery machines to burnish under shelving and fixtures. Cover up to 21,000 ft2/1,951 m2 per hour with greater mobility and productivity.
Motor Power: 3 hp 2238 watts
Motor/Pad RPM: 2000 (Nominal Load), 2500 (No Load)
Variable Pad Pressure: 15-40 lbs 7-18kg
Pad Driver: Flexible, full pad contact
Transport Mode: Pad assist forward motion (2510)
Self-propelled, variable speed (2550)
Main Wheels (Non-marking): (2) 8 in 20.3 cm
Casters (Non-marking): (1) front, 3 in 7.6 cm
Description: (3) 215 ah capacity battery
Continuous Run Time: (2510) Nominal load-2.4 hrs
(2510/2550) Minimum load-3 hrs
Charging Unit Description: 36V DC 25 amp
Product Height: 40 in 102 cm
Product Length: 52 in 132 cm
Product Width: 24 in 61 cm
Product Weight: 525 lbs with batteries 243 kg
Maximum Coverage Rate: 21,000 ft2/hr 1,951 m2/hr
Burnish Width: 20 in 50.8 cm
cm battery-powered burnishers! Choose either the pad assisted
model 2510 or 2550 self-propelled unit. The patented floating pad
head design provides 15-40 lbs/7-18 kg of variable down pressure
for superior performance and glides over irregular floors to ensure
even burnishing. These burnishers employ a built-in dust control
system that captures fine particles in a filter bag for better indoor air quality. Airflow created by the pad motion forces dust and particulates through the clean air system. Compact design and a low profile base allow these battery machines to burnish under shelving and fixtures. Cover up to 21,000 ft2/1,951 m2 per hour with greater mobility and productivity.
Motor Power: 3 hp 2238 watts
Motor/Pad RPM: 2000 (Nominal Load), 2500 (No Load)
Variable Pad Pressure: 15-40 lbs 7-18kg
Pad Driver: Flexible, full pad contact
Transport Mode: Pad assist forward motion (2510)
Self-propelled, variable speed (2550)
Main Wheels (Non-marking): (2) 8 in 20.3 cm
Casters (Non-marking): (1) front, 3 in 7.6 cm
Description: (3) 215 ah capacity battery
Continuous Run Time: (2510) Nominal load-2.4 hrs
(2510/2550) Minimum load-3 hrs
Charging Unit Description: 36V DC 25 amp
Product Height: 40 in 102 cm
Product Length: 52 in 132 cm
Product Width: 24 in 61 cm
Product Weight: 525 lbs with batteries 243 kg
Maximum Coverage Rate: 21,000 ft2/hr 1,951 m2/hr
Burnish Width: 20 in 50.8 cm
Parts
Can't find what you need? Click here or call 1-800-USA-CLEAN
Need a professional? We offer in person service.
Learn more
Diagrams
- View all diagrams
- - Batteries and Chargers
- - Frequently Replaced Parts
- - Pad Holders
- - Pads
- Air Inlet Assembly
- Battery Cover Assembly
- Control Console Assembly
- Hour Meter, Emergency Stop, and Keyswitch Assembly
- Ladder Diagram - Off-Board Charger
- Ladder Diagram - Onboard Charger
- Light Assembly
- Low Voltage Interrupt Assembly
- Main Housing Assembly
- Main Wire Harness
- Off-Board Battery Charger Assembly
- Onboard Battery Charger Assembly
- Pad Driver Assembly
- Parking Brake Assembly
- Wheel Assembly
- Wiring Diagram - Off-Board Charger
- Wiring Diagram - Onboard Charger
