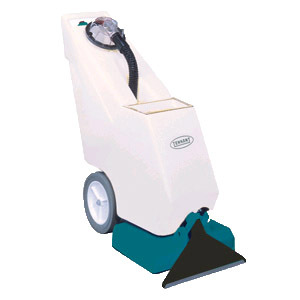

Tennant 1220 Parts, Diagrams, Manuals and more

Interested in purchasing equipment?

Need help finding a part?

Ask our Team!

Parts
Diagrams
Manuals
Repair Guides
Docs

Brush Drive System
Brush Bristle Length:.75 in /1.91cm
Brush Bristle Type:Nylon construction, eight rows of bristles arranged with 5 degree lead spiral
Brush Diameter:3.375 in /8.75 cm
Brush Length:13.5”/34.3 cm
Brush Motor Amps:1 A
Brush Motor RPM:1800 rpm
Brush Motor Voltage:120 V
Brush Motor Watts:120 watts
Brush RPM:1200 rpm
Chassis/Body Construction
Chassis Construction:Rotationally-molded polyethylene
Metal Parts Coating:Epoxy powder coating; extruded aluminum spray bar is black anodized; other parts are zincplated or stainless steel
Wheel Diameter:8 in /20.32 cm 10 in /25.4 cm
Wheel Description:Non-marking gray tread
Dimensions
Product Height:34 in /86.36 cm
Product Length:39 in /99.06 cm
Product Weight:86 lb /39.01 kg
Product Width:16 in /40.64 cm
Decibel Rating
Decibel Rating at 10 ft/3 m: 71 dBa
Decibel Rating at 5 ft/1.5 m: 73 dBa
Decibel Rating at machine:77 dBa
Recovery System
Recovery Tank Wet Capacity:7 gal /26.5 L
Total Power Consumption
Amps:12.7 A
Voltage:120 V
Watts:1524 watts
Solution Delivery System
Nominal Solution Flow Rate:1 gpm /3.78 L/min
Solenoid Valve Description:Electrically operated, provides positive spray shut-off.
Solution Capacity:7 gal /13.24 L
Solution Flow Quantity:1 gpm /3.78 L/min
Spray Jets Count:4 - quick disconnect

Tennant 1220 Parts and Support

parts
diagrams
manuals
repair guides
docs

brush drive system
brush bristle length:.75 in /1.91cm
brush bristle type:nylon construction, eight rows of bristles arranged with 5 degree lead spiral
brush diameter:3.375 in /8.75 cm
brush length:13.5”/34.3 cm
brush motor amps:1 a
brush motor rpm:1800 rpm
brush motor voltage:120 v
brush motor watts:120 watts
brush rpm:1200 rpm
chassis/body construction
chassis construction:rotationally-molded polyethylene
metal parts coating:epoxy powder coating; extruded aluminum spray bar is black anodized; other parts are zincplated or stainless steel
wheel diameter:8 in /20.32 cm 10 in /25.4 cm
wheel description:non-marking gray tread
dimensions
product height:34 in /86.36 cm
product length:39 in /99.06 cm
product weight:86 lb /39.01 kg
product width:16 in /40.64 cm
decibel rating
decibel rating at 10 ft/3 m: 71 dba
decibel rating at 5 ft/1.5 m: 73 dba
decibel rating at machine:77 dba
recovery system
recovery tank wet capacity:7 gal /26.5 l
total power consumption
amps:12.7 a
voltage:120 v
watts:1524 watts
solution delivery system
nominal solution flow rate:1 gpm /3.78 l/min
solenoid valve description:electrically operated, provides positive spray shut-off.
solution capacity:7 gal /13.24 l
solution flow quantity:1 gpm /3.78 l/min
spray jets count:4 - quick disconnect

Parts

Product
Qty in Cart
Quantity
Price
Subtotal

OEM

Valve pin and spring kit 175-1820

MSRP:

$68.20

Was:

Specifications:Weight: 0.13 poundsMatches:1906035555886819660May fit on these models - select model and diagram to confirmTennant EX-SC-1020Tennant 1610Tennant 1510Tennant 1260Nobles POWEREAGLE 1020Nobles FALCON ULTRA BTennant 1240Tennant BOSS...

MSRP:

$68.20

Was:

Qty in Cart: 0

Price:

MSRP:

$68.20

Was:

Subtotal:
ships same day

OEM

13 inch low pressure wand assembly 175-3563

MSRP:

$865.20

Was:

Specifications:Weight: 11.645 poundsMatches:1501220050260004886888330SM15012Commonly purchased together:May fit on these models - select model and diagram to confirmTennant EX-SC-1020Tennant 1610Tennant 1510Tennant 1260Nobles POWEREAGLE 1020Nobles FALCON...

MSRP:

$865.20

Was:

Qty in Cart: 0

Price:

MSRP:

$865.20

Was:

Subtotal:
OEM

Height adjustment bracket 275-9027

MSRP:

$31.40

Was:

Specifications:Weight: 0.705 poundsMatches:230638.BK91037340Fits on:Tennant EX-SC-716Tennant 1220Service Master RM-7PCastex POWEREAGLE 350

MSRP:

$31.40

Was:

Qty in Cart: 0

Price:

MSRP:

$31.40

Was:

Subtotal:
OEM

Brass spray tip 275-5132

MSRP:

$24.90

Was:

Specifications:Weight: 0.015 poundsType: Nozzle / Spray TipMaterial: BrassMatches:201012Commonly purchased together:May fit on these models - select model and diagram to confirmTennant 1260Tennant 1240Tennant EX-SC-716Tennant 1220Service Master...

MSRP:

$24.90

Was:

Qty in Cart: 0

Price:

MSRP:

$24.90

Was:

Subtotal:
ships same day

Non-OEM

120V 3 stage vacuum motor tangential 991-1213

MSRP:

$142.08

Was:

This genuine Ametek-Lamb vacuum motor fits on the following models; Tennant 750, 1120, 1140, 1160, 1180, 1220, 1240, 1280, 1530, Boss 2000LE, EX-CAN-15HPH, EX-SC-1020, EX-SC-716 Nobles PowerEagle 1016, 1020 Nilfisk Aquaclean 16ST, 18FLX, 18ST,...

MSRP:

$142.08

Was:

Qty in Cart: 0

Price:

MSRP:

$142.08

Was:

Subtotal:
Non-OEM

120V 100 PSI Flo Jet pump 991-8009

MSRP:

$194.03

Was:

Specifications:Weight: 4.6 poundsMatches:2130-5179.106-420.0M-43Alternative items:Below are other options that may meet your needs.(k) PUMP, 115v(Fan Cooled) (QBA) 100PSI$213.60993-2293Commonly purchased together:May fit on these models - select model...

MSRP:

$194.03

Was:

Qty in Cart: 0

Price:

MSRP:

$194.03

Was:

Subtotal:
Non-OEM

12 inch aluminum head wand, 2 jet, 120 PSI (OBSOLETE) 991-8001

Call for availability

Ordering this item for a Nilfisk-Advance Aquaclean FLX or XP? If so please order 991-8158.Specifications:Weight: 6.02 poundsMaterial: PlasticType: WandNumber of Wand Bends: 1Number of Pieces Included: 1Length: 12Number of Spray Jets: 2Matches:W15302 ...

MSRP:

$222.91

Was:

Qty in Cart: 0

Price:

MSRP:

$222.91

Was:

Subtotal:
OEM

11 inch PVC hose (gray) 275-4585

MSRP:

$11.30

Was:

Specifications:Weight: 0.12 poundsMatches:160570175-7335613481Fits on:Tennant EX-SC-716Tennant 1220Service Master RM-7PNobles POWEREAGLE 716

MSRP:

$11.30

Was:

Qty in Cart: 0

Price:

MSRP:

$11.30

Was:

Subtotal:
Non-OEM

1/8 inch adapter H37 991-8107

MSRP:

$2.27

Was:

Matches:H37Commonly purchased together:Fits on:Nilfisk-Advance AQUACLEAN 18FLXHost Company T5Tennant EX-SC-1020Nilfisk-Advance AQUACLEAN 15Tennant 1610Tennant E5Nilfisk-Advance AQUAPRO XPNilfisk-Advance AQUACLEAN XPTennant R3CFR Corp PRO 500Tennant...

MSRP:

$2.27

Was:

Qty in Cart: 0

Price:

MSRP:

$2.27

Was:

Subtotal:
ships same day

Non-OEM

120V 50 PSI Flo Jet pump 991-8008

MSRP:

$237.10

Was:

Matches:2100-549M-42Alternative items:Below are other options that may meet your needs.PUMP$258.41993-0745Commonly purchased together:May fit on these models - select model and diagram to confirmNilfisk-Advance AQUACLEAN 18FLXHost Company T5Tennant...

MSRP:

$237.10

Was:

Qty in Cart: 0

Price:

MSRP:

$237.10

Was:

Subtotal:
ships same day

Non-OEM

20ft 100psi vac/sol hose assembly w/1/4 female & 1/4 male 991-8143

MSRP:

$114.06

Was:

Are you ordering this part for an Aquaclean FLX or XP extractor? If yes please see part numbers 272-1214, 991-8158, 991-8177 and 991-8148.Specifications:Weight: 8.175 poundsLength: 200 FTUsed for: Solution/VacuumColor: BlueQuick Connect Type:...

MSRP:

$114.06

Was:

Qty in Cart: 0

Price:

MSRP:

$114.06

Was:

Subtotal:
Non-OEM

1/8 fpt brass female connector 991-8220

MSRP:

$9.08

Was:

Specifications:Material: BrassMatches:QD52STER 12FSFits on:Nilfisk-Advance AQUACLEAN 18FLXHost Company T5Tennant EX-SC-1020Nilfisk-Advance AQUACLEAN 15Tennant 1610Tennant E5Nilfisk-Advance AQUAPRO XPNilfisk-Advance AQUACLEAN XPTennant R3CFR Corp PRO...

MSRP:

$9.08

Was:

Qty in Cart: 0

Price:

MSRP:

$9.08

Was:

Subtotal:
