Theoretical performance per hour: 68,619 sq ft (6375 sq m)
Dimensions (L x W x H) (height above driver’s seat): 70 x 35 x 55 in (178 x 89 x 140 cm)
Working width: 34 in (85 cm)
Ramp with full tank w/o cleaning: 15%
Squeegee width: 43.5 in (110 cm)
Brush system: 17 in (43 cm) (2)
Solution tank - flex tank (nominal): 53gal (200L)
Brush pressure max: 123-247lb (56-112 kg)
Recovery tank - flex tank (nominal): 55gal (210L)
Cleaning speed / Transportation speed: 4.6 mph / 5 mph
(7.5 Km/h / 8.0 Km/h)
Rated voltage: 24V
Sound level: 67 dB(A)
Battery capacity: 240–330 Ah
Electrical protection class: III
Battery run time (nominal): 4.5–6.5h
Splash water protection class: IPX3
Machine weight ready for use w/240 Ah hour batteries, full tank and driver: 1675lb. (760 kg)
Approvals: CE/CB Test certificate
Turning radius: 79 in (200 cm) Interactive Service Guide
TASKI by Diversey SWINGO 4000 Parts and Support

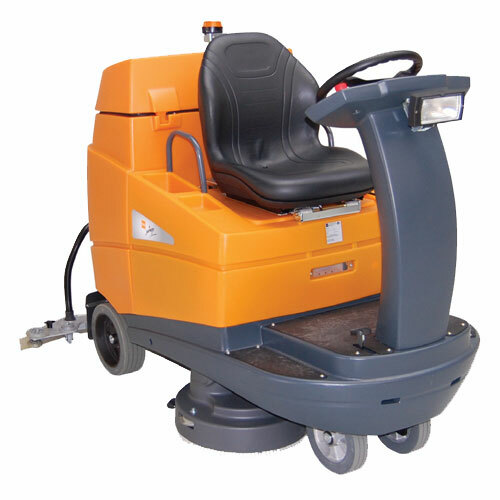

the taski swingo 4000 is a battery-powered, ride-on autoscrubber. all wheel steering allows for safe operation around pedestrians. intuitive controls ensure easy operation regardless of skill level. built in intellipowered ultimax provides charging 3 x faster than conventional batteries.
theoretical performance per hour: 68,619 sq ft (6375 sq m)
dimensions (l x w x h) (height above driver’s seat): 70 x 35 x 55 in (178 x 89 x 140 cm)
working width: 34 in (85 cm)
ramp with full tank w/o cleaning: 15%
squeegee width: 43.5 in (110 cm)
brush system: 17 in (43 cm) (2)
solution tank - flex tank (nominal): 53gal (200l)
brush pressure max: 123-247lb (56-112 kg)
recovery tank - flex tank (nominal): 55gal (210l)
cleaning speed / transportation speed: 4.6 mph / 5 mph
(7.5 km/h / 8.0 km/h)
rated voltage: 24v
sound level: 67 db(a)
battery capacity: 240–330 ah
electrical protection class: iii
battery run time (nominal): 4.5–6.5h
splash water protection class: ipx3
machine weight ready for use w/240 ah hour batteries, full tank and driver: 1675lb. (760 kg)
approvals: ce/cb test certificate
turning radius: 79 in (200 cm)
theoretical performance per hour: 68,619 sq ft (6375 sq m)
dimensions (l x w x h) (height above driver’s seat): 70 x 35 x 55 in (178 x 89 x 140 cm)
working width: 34 in (85 cm)
ramp with full tank w/o cleaning: 15%
squeegee width: 43.5 in (110 cm)
brush system: 17 in (43 cm) (2)
solution tank - flex tank (nominal): 53gal (200l)
brush pressure max: 123-247lb (56-112 kg)
recovery tank - flex tank (nominal): 55gal (210l)
cleaning speed / transportation speed: 4.6 mph / 5 mph
(7.5 km/h / 8.0 km/h)
rated voltage: 24v
sound level: 67 db(a)
battery capacity: 240–330 ah
electrical protection class: iii
battery run time (nominal): 4.5–6.5h
splash water protection class: ipx3
machine weight ready for use w/240 ah hour batteries, full tank and driver: 1675lb. (760 kg)
approvals: ce/cb test certificate
turning radius: 79 in (200 cm)
Parts
Can't find what you need? Click here or call 1-800-USA-CLEAN
Need a professional? We offer service both virtually and in person.
Learn more
Diagrams
- View all diagrams
- - Frequently Replaced Parts
- - Batteries, Brushes and Charger
- - Know Your Machine
- - Manufacturer Recommended Stocking Parts
- - Pad Holders
- - Pads - 11 inch
- - Pads - 17 inch
- - Simplified Electrical System - Series 1 and 2
- - Simplified Recovery System - Series 1 and 2
- - Simplified Solution System - Series 1 and 2
- Brush Drive Assembly
- Chassis Protection Assembly
- Drain Hose with Switch Assembly
- Drainage Pump Assembly
- Driver Seat Assembly
- Electrical Components Assembly - Series 1 and Series 2
- Electrical Diagram
- Electrical Panel Assembly
- Electrical Parts and Connections Assembly
- Encoder Assembly
- Flashlight Set Assembly
- Lower Drive Assembly
- Lower Tank Assembly
- Magnetic Valve Assembly
- Pad Driver Assembly
- Pedal Assembly
- Protection Roof Assembly
- Pump and Hose Assembly - Series 1 and Series 2
- Spotlight Set Assembly
- Squeegee Assembly
- Squeegee Lift Assembly
- Tool Lowering Assembly
- Upper Drive Assembly
- Upper Tank Assembly
Manuals
- TASKI swingo 4000/5000 parts manual_2024
- TASKI swingo 4000/5000 Service Manual
- TASKI swingo 4000/5000 Service Tool Manual
- TASKI swingo 4000/5000 User Manual
Bulletins
- Batteries Information_2017
- Battery Cable Connection_2013
- Brush Housing Change_2016
- Brush Lifting Adjustment_2016
- Cable Harness Enhancement_2015
- Charger with Communication Interface_2017
- Chassis Modification_2016
- Distance Piece Charging Plug_2015
- Fresh Water Sensor Positioning_2012
- Harmonisation Seat_2013
- Implementation of New Magnetic Valve 06E_2022
- Improved Drive Belt Guideance_2015
- Intellidose Electronics Revision_2017
- IntelliSpray Introduction and Service_2020
- Key Switch_2017
- Lithium Curve and Error Correction_2020
- Magnetic Valve_2018
- Marking of Connection_2015
- New Brush Lowering Motor_2013
- New Brush Pressure Sensor_2017
- New Bumper Wheels_2003
- New Ceramic Axle_2016
- New Drain Hose_2014
- New Electronics Installation_2016
- New Electronics Introductions_2016
- New Electronics_2013
- New Firmware v1.10_2016
- New Firmware v1.13_2012
- New Firmware v1.14_2012
- New Firmware v1.15_2013
- New Firmware v1.18_2013
- New Firmware v1.18_2018
- New Firmware v1.18_34E_2013
- New Firmware v1.19_2014
- New Firmware v1.23_2014
- New Firmware v1.24_2015
- New Firmware v1.24_2020
- New Firmware v1.25_2016
- New Firmware v1.26 series 01_2019
- New Key_2013
- New Pump_2014
- New Pump_2016
- New Squeegee Blades_2014
- New Suction Hose_2016
- New Wastewater Sensor_2016
- Optional Squeegee Rubber Blades 2019
- Optional Wheels_2015
- Overheating Outage_2013
- Power Relay Installation_2013
- Pulley Set_2011
- Pump and Controller Update-2023
- Pump Fuse_2013
- Pump_2014
- Seating Service Access_2016
- Service Tool Update v6.04_2012
- Service Tool Update v7.04_2013
- Service Tool Update v7.09_2014
- Service Tool v8.01_2015
- Service Tool version 8.30_2021
- Squeegee Blades and Castor Wheels_2011
- Squeegee Bracket_2014
- Squeegee Modification_2012
- Squeegee Side Bumper Wheels_2011
- Steering Unit Sensor_2017
- Swingo 4000 - Lithium Battery Installation
- TASKI Service Tool Version 8.12_2016
- TASKI swingo 4000/5000 Fresh and Waste Water Adjustment
- TASKI swingo 4000/5000 New Pump Mounting Instructions
- TASKI swingo 4000/5000 Service Light Reset
- TASKI swingo 4000/5000 Service Menu Page 1 Display
- TASKI swingo 4000/5000 Setting Thottle Value
- TASKI swingo 750B/755B/855B/1250B/1255B/1650B/2500/3500/4000/5000 JFit Installation
- Vacuum Motor Harmonisation_2008
- Water Sensor Gasket_2011
Videos
- TASKI Power/Control Board Testing Video
- TASKI swingo 4000/5000 Incorrect Solution Flow Video
- TASKI swingo 4000/5000 Poor or No Pickup Video
- TASKI swingo 4000/5000 Service Introduction Video
- TASKI swingo 4000/5000 Service Tool and Firmware Video
Repair Guides
- Check the Drive Board Voltage for the Primary Components
- Removing Seat to Access Power Board
- Replace the Squeegee Blades
- Replace the Vacuum Motor
- Clean/Replace the Solution Filter
- Fresh Water Sensor Errors (Empty Solution Tank)
- Pump Fuse Install
- Replace Pump
- Test Pump Voltage at Power Board
Docs
- TASKI - swingo 4000 and swingo 5000 - New Brush Housing
- TASKI - swingo XP, 2500, 3500, 4000, 5000 - Warranty Statement
- TASKI Floor Pad Matrix
- TASKI swingo 4000 and 5000 - Maintenance Schedule
- TASKI swingo 4000 Error Codes
- TASKI swingo 4000 wall chart
- TASKI swingo 4000/5000 Brierly Esprit Offboard Charger trouble codes
