Theoretical performance per hour: 31,485 sq ft (2,925 sq m)
Dimensions, Length x Width x Height: 61 x 27 x 46 in (154 x 69 x 118 cm)
Squeegee width: 37 in (95 cm)
Brush size: 13 in (33 cm) (2)
Brush pressure: 132lbs (59.9 kg)
Working width: 26 in (65 cm)
Solution tank: 23gal (85L)
Recovery tank: 23gal (85L)
Cleaning speed: 2.8 mph (4.5 km/h)
Rated voltage: 24V
Max. ramp: 2.0%
Nominal consumption: 1,200 W
Sound level: <65 db(A)
Battery runtime: 4h
Weight, ready for use: 728lbs (330 kg) Interactive Service Guide

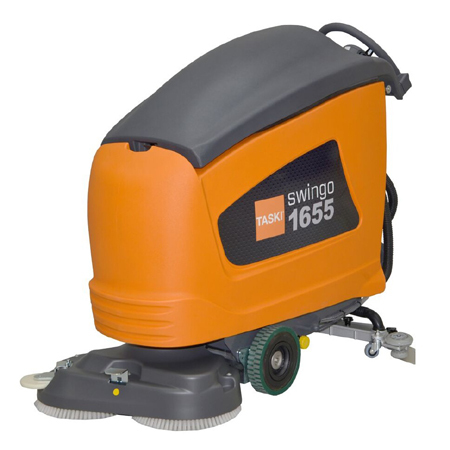

TASKI by Diversey SWINGO 1655 Parts and Support
the taski swingo 1655 xd is a battery-powered, walk-behind autoscrubber. the swingo 1655 xd is equipped with a 23-gallon tank and intelliflow, reducing water consumption and increasing cleaning time between refills. clean any time of the day without causing disruptions with the low 62 dba sound level. trust in the patented w-shaped squeegee for dry floors, reducing the risk of slips and falls.
theoretical performance per hour: 31,485 sq ft (2,925 sq m)
dimensions, length x width x height: 61 x 27 x 46 in (154 x 69 x 118 cm)
squeegee width: 37 in (95 cm)
brush size: 13 in (33 cm) (2)
brush pressure: 132lbs (59.9 kg)
working width: 26 in (65 cm)
solution tank: 23gal (85l)
recovery tank: 23gal (85l)
cleaning speed: 2.8 mph (4.5 km/h)
rated voltage: 24v
max. ramp: 2.0%
nominal consumption: 1,200 w
sound level: <65 db(a)
battery runtime: 4h
weight, ready for use: 728lbs (330 kg)
theoretical performance per hour: 31,485 sq ft (2,925 sq m)
dimensions, length x width x height: 61 x 27 x 46 in (154 x 69 x 118 cm)
squeegee width: 37 in (95 cm)
brush size: 13 in (33 cm) (2)
brush pressure: 132lbs (59.9 kg)
working width: 26 in (65 cm)
solution tank: 23gal (85l)
recovery tank: 23gal (85l)
cleaning speed: 2.8 mph (4.5 km/h)
rated voltage: 24v
max. ramp: 2.0%
nominal consumption: 1,200 w
sound level: <65 db(a)
battery runtime: 4h
weight, ready for use: 728lbs (330 kg)
Parts
Can't find what you need? Click here or call 1-800-USA-CLEAN
In the market for a new machine? You can find quality new and reconditioned floor care equipment at one of our vendor partners:
Need a professional? We offer service both virtually and in person.
Learn more
Diagrams
- View all diagrams
- - Batteries, Brushes and Charger - Machines Sold After 2016
- - Batteries, Brushes and Charger - Machines Sold Before 2016
- - Manufacturer Recommended Stocking Parts
- - Pad Holders
- - Simplified Recovery System
- - Simplified Solution System
- -Know Your Machine
- -Simplified Electrical System
- Battery Cable Assembly
- Brush Deck Assembly
- Chassis Assembly
- Decal Assembly
- Intermediate Wheel Assembly
- Lever Assembly
- Lower Tank Assembly
- Pads
- Solution Assembly - Series 1 and 2
- Solution Assembly - Series 3
- Squeegee Assembly - After SN 4129464
- Squeegee Lowering Mechanism Assembly
- Transaxle Assembly
- Upper Tank Assembly
- Wiring Diagram
Manuals
Bulletins
- Batteries Information_2017
- Distance Piece Charging Plug_2015
- Intellidose Electronics Revision_2017
- Magnetic Valve_2018
- New Bumper Wheels_2003
- New Ceramic Axle_2016
- New Drain Hose_2017
- New Drive Wheel 02E_2022
- New Vacuum Motor for B-Model 04E_2022
- Optional Wheels_2017
- Service Tool version 8.30_2021
- Vacuum Motor Harmonisation_2008
- Water Distribution Magnetic Valve_2018
