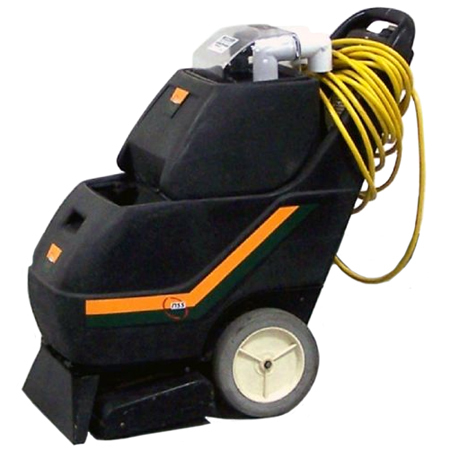

STALLION 8SC

222

• Parts
• Diagrams
• Docs

The Stallion 8SC features speed, maneuverability and deep-down cleaning, making it the perfect extractor for every carpet application. In fact, the Stallion 8SC is twice as fast as tuv extractors, covering 1,400 square feet an hour.

The Stallion 8SC blasts solution through its three stainless steel jets into carpet. The embedded dirt is agitated by the floating brush, which automatically adjusts to different carpet pile heights. The solution and loosened soil are extracted by the powerful 1.88 HP vacuum motor. It cleans a 16-inch path in a single path.

The Stallion 8SC has 8-gallon recovery and solution tanks; you have to empty and refill tanks less often, increasing productivity. The Stallion 8SC features a hinged, rotocast polyethylene body for easy maintenance of its internal components. The Stallion 8SC also has an accessory connector that allows it to be used with optional stair and upholstery cleaning tools.

The Stallion 8SC, because of its aggressive carpet cleaning ability, is ideal for offices, hotel rooms and areas where carpet restoration is required.

TANK CAPACITY
Solution Tank 8 gal. (30 l.)
Recovery Tank 8 gal. (30 l.)
SOLUTION PUMP 100 PSI bypass
Type Diaphragm type
Watts 115(110V.)-126.5(230V.)
VACUUM MOTOR
Type 3-stage tangential
Voltage 110V.-120V. 220V.-240V. available
HP 1.88 HP (1400 watts)
Closed Waterlift 117 in. (297 cm)
SPRAY JETS 3 stainless steel, ¼ turn snap in or out
CURRENT 120V. — 12 amps 240V. — 6.2 amps
BRUSH MOTOR
Type Permanent magnet
Voltage 110V.-120V. 220V.-240V. available
HP .125 HP
RPM 1200
CONSTRUCTION
Tanks Rotocast polyethylene
Frame Powder-coated steel
SUCTION HEAD 16 in. (41 cm) corrosive-resistant cast aluminum
BRUSH 14.75 in. (37.5 cm) nylon bristle, ABS plastic core, “v” design fill pattern
BRUSH RPM 900 RPM, poly “V” belt
BRUSH BEARINGS Bearings sealed; additional seals with string guard
WHEELS Two 10 in. (25 cm) non-marking grey tread
SOUND LEVEL 77 dbA @ operator
CORD Size 4-3 SJT safety yellow Twist-lock detachable plug
Length 50 ft. (15 m)
ACCESSORY VALVE Quick-connect attachment; automatic valve actuated
FLOAT SHUT-OFF Ball type
DIMENSIONS
Height 34 in. (86 cm)
Length 35 in. (90 cm)
Width 16 in. (41 cm)
WEIGHT 84 lbs. (38 kg)
SHIPPING WEIGHT 100 lbs. (45 kg)
WARRANTY 3 year limited 10 year poly parts
