PACER 218UE

1

• Parts
• Diagrams
• Docs

For quick, effective carpet vacuuming, the Pacer 214 UE and Pacer 218 UE combine cleaning power and ease of operation to make them the ideal choice in two motor uprights.

•One motor for suction power and a second motor to drive the brush for the most effective cleaning performance
•Ergonomic design features reduce operator fatigue
•Enclosed ergonomic handle allows a relaxed grip
•Large built-in carrying handle makes transport easy.
•3-stage filtration system enhances IAQ

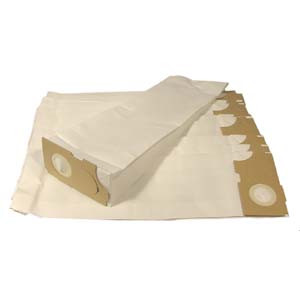

•Poly-lined two-ply paper filter bag contains the vacuumed dirt
•Stage-two motor filter provides added filtration in the event of a tear
in the filter bag.
•Exhaust filter traps additional particles and carbon brush dust created by the vacuum motor.
•Brush motor shuts off when the wand is in use for detail cleaning, protecting the carpet from brush burn.

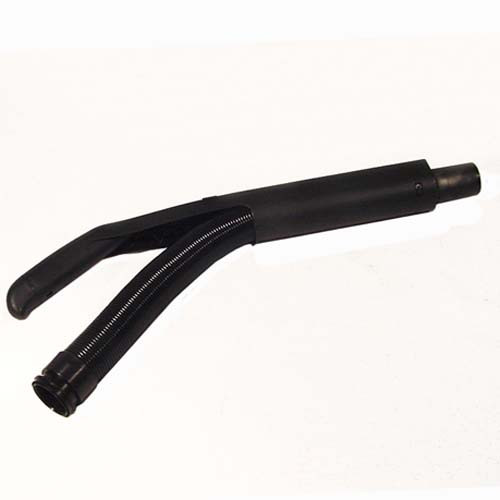

•Removable suction tube makes cleaning clogs simple.

Brush Spiral brush with replaceable strips
Vacuum Motor 2-stage, 10.5 amps @ 120V (1000 watts)
Type 4.4 amps @ 240V (1000 watts)
Air Flow Maximum 91 CFM (43 L/sec)
Waterlift 84 in
Brush Motor 1.4 amps @ 120V, 0.8 amps @ 240V
Filtration 3-stage—top-filled, two-ply poly-lined filter, motor filter, and exhaust filter. Micro filter optional
Switches & Controls Rocker on/off switch and bag full indicator light
Cord 40 ft (12.2 m) 18-3 SJT safety yellow
Construction High-impact ABS plastic
Sound Level
214 UE 65 dBA
218 UE 66 dBA
Bag Capacity 5 quarts dry (4.75 L)
Cleaning Path
214 UE 14 in (36 cm)
218 UE 18 in (46 cm)
Dimensions
Height 48.75 in (125 cm)
Width 214 UE 14.5 in (39 cm)
Width 218 UE 18.5 in (50 cm)
Weight
214 UE 21 lbs (9.5 kg)
218 UE 22 lbs (10 kg)
Shipping Weight
214 UE 27 lbs (12.5 kg)
218 UE 28 lbs (13 kg)
Shipping Class 100
Warranty 1 year, 2 years on motors and PC board
Productivity
214 UE 4,000 sq ft/hour (372 m2)
218 UE 5,130 sq ft/hour (465 m2)
