•Up to 70 pounds of pad pressure ensures a brilliant, high gloss shine
•Quiet operation (only 71 dBA) provides scheduling flexibility to burnish floors in occupied facilities at any time, with minimal disruption to customers and coworkers.
•Six-325 AH PROeye batteries result in over 3-1/2 hours of run time for increased productivity
•Variable-speed wheel drive,forward and reverse, allows the operator to match the machine's drive speed to a comfortable working pace hour after hour
•Two-wheel drive with differential results in tremendous productivity and maneuverability
•7-gauge steel frame provides a strong, rugged structure
•Low profile offset pad driver makes burnishing under shelves easy
Pad Speed: 1600 RPM
Pad size: 27-in. (68.5 cm)
Pad driver: 27 in (68.5 cm)
Motor:
Type: DC permanent magnet
Voltage: 36V
HP: 3 HP
RPM: 1500 (Full load)
Batteries: Six 6V., 325 AH
Drive: Chain drive differential
Drive motor:
Type: DC permanent magnet
Voltage: 36V
HP: .25 HP
Drive speed: Variable, up to 246 ft./min. (75 m) forward, up to 148 ft./min. (45 m) reverse
Switches and Controls: Master on/off switch. Safety switch prevents accidental pad rotation in raised position. Twist grip propulsion control. Lever on rear panel lowers machine from operator to transport to pad-change position.
Overload protection: 90 amp reset circuit breaker
Construction:
Frame: 7 gauge steel
Housing: rotocast polyethylene
Flexiwall shield: ABS plastic with steel liner

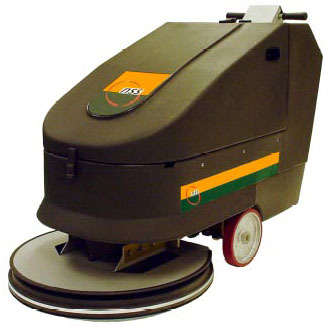

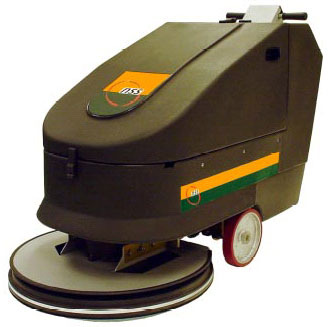

NSS Enterprises CHARGER 2716DB Parts and Support
Beyond tremendous productivity gains, the Charger 2716 DB battery burnisher produces a wet-look shine without the high maintenance costs and hassles of a propane burnisher.
•Up to 70 pounds of pad pressure ensures a brilliant, high gloss shine
•Quiet operation (only 71 dBA) provides scheduling flexibility to burnish floors in occupied facilities at any time, with minimal disruption to customers and coworkers.
•Six-325 AH PROeye batteries result in over 3-1/2 hours of run time for increased productivity
•Variable-speed wheel drive,forward and reverse, allows the operator to match the machine's drive speed to a comfortable working pace hour after hour
•Two-wheel drive with differential results in tremendous productivity and maneuverability
•7-gauge steel frame provides a strong, rugged structure
•Low profile offset pad driver makes burnishing under shelves easy
Pad Speed: 1600 RPM
Pad size: 27-in. (68.5 cm)
Pad driver: 27 in (68.5 cm)
Motor:
Type: DC permanent magnet
Voltage: 36V
HP: 3 HP
RPM: 1500 (Full load)
Batteries: Six 6V., 325 AH
Drive: Chain drive differential
Drive motor:
Type: DC permanent magnet
Voltage: 36V
HP: .25 HP
Drive speed: Variable, up to 246 ft./min. (75 m) forward, up to 148 ft./min. (45 m) reverse
Switches and Controls: Master on/off switch. Safety switch prevents accidental pad rotation in raised position. Twist grip propulsion control. Lever on rear panel lowers machine from operator to transport to pad-change position.
Overload protection: 90 amp reset circuit breaker
Construction:
Frame: 7 gauge steel
Housing: rotocast polyethylene
Flexiwall shield: ABS plastic with steel liner
•Up to 70 pounds of pad pressure ensures a brilliant, high gloss shine
•Quiet operation (only 71 dBA) provides scheduling flexibility to burnish floors in occupied facilities at any time, with minimal disruption to customers and coworkers.
•Six-325 AH PROeye batteries result in over 3-1/2 hours of run time for increased productivity
•Variable-speed wheel drive,forward and reverse, allows the operator to match the machine's drive speed to a comfortable working pace hour after hour
•Two-wheel drive with differential results in tremendous productivity and maneuverability
•7-gauge steel frame provides a strong, rugged structure
•Low profile offset pad driver makes burnishing under shelves easy
Pad Speed: 1600 RPM
Pad size: 27-in. (68.5 cm)
Pad driver: 27 in (68.5 cm)
Motor:
Type: DC permanent magnet
Voltage: 36V
HP: 3 HP
RPM: 1500 (Full load)
Batteries: Six 6V., 325 AH
Drive: Chain drive differential
Drive motor:
Type: DC permanent magnet
Voltage: 36V
HP: .25 HP
Drive speed: Variable, up to 246 ft./min. (75 m) forward, up to 148 ft./min. (45 m) reverse
Switches and Controls: Master on/off switch. Safety switch prevents accidental pad rotation in raised position. Twist grip propulsion control. Lever on rear panel lowers machine from operator to transport to pad-change position.
Overload protection: 90 amp reset circuit breaker
Construction:
Frame: 7 gauge steel
Housing: rotocast polyethylene
Flexiwall shield: ABS plastic with steel liner
Parts
Can't find what you need? Click here or call 1-800-USA-CLEAN
Need a professional? We offer in person service.
Learn more
Diagrams
- View all diagrams
- - Batteries and Charger
- - Frequently Replaced Parts
- - Pad Holders
- - Pads
- Base Assembly
- Brush Motor Assembly
- Frame Assembly
- Handle Assembly
- Housing Assembly
- Shield and Pad Driver Assembly
- Wiring Diagram with Off-Board Charger
- Wiring Diagram with Onboard Charger
Bulletins
- NSS Charger 2025/2716 Shunt and Max Collar Amp Settings
- NSS Curtis Control Board Troubleshooting
- NSS Delta Q Onboard Battery Chargers Service Tips and Errors
- NSS Dual Pro Charger models TSS Bulletin
- NSS Field install key switch kits
- NSS Potentiometer Trouble Shooting
- NSS Serial Number Format
- NSS Softer red caster wheel & usage table
- TSS Bulletin 36 NSS Charger and Wrangler Emergency Stop Block Compatibililty
