SCOUT 37B

SCOUT 37B

Nobles SCOUT 37B

Interested in purchasing equipment?

Contact our Experts!

Need help finding a part?

Ask our Team! POWER TYPE
Electric motor -- Nominal voltage 24 VDC,
0.75 hp (0.56 kw) @ 2175 rpm, 29 A
Batteries (2) -- 12 V, 530 CCA, 105Ah
Battery charger -- 24 VDC, 15 A output
115 VAC input
Battery charger -- 24 VDC, 15 A, 115/230 VAC
POWER TRAIN
Propelling -- belt driven
Main brush -- belt driven
Side brush option -- belt driven
SUSPENSION SYSTEM
Front (2) -- 4 x 1.37 caster wheels
Rear -- 8 x 2 solid tire
GENERAL MACHINE
DIMENSIONS/CAPACITIES
Length -- 52 in (1320 mm)
Length with side brush -- 62 in (1575 mm)
Width -- 32 in (815 mm)
Width with side brush -- 34.5 in (880 mm)
Height -- 40.25 in (1020 mm)
Track -- 29.75 in (755 mm)
Wheelbase -- 26.5 in (675 mm)
Main brush diameter -- 8 in (205 mm)
Main brush length -- 28.6 in (725 mm)
Side brush diameter -- 16 in (405 mm)
Sweeping path width -- 29 in (735 mm)
Sweeping path width with side brush -- 37 in
(940 mm)
Hopper capacity -- 2.6 cu ft (0.07 m3)
Dust filter area -- 49 sq ft (4.5 m2)
MACHINE WEIGHTS
GVWR -- 435 lb (197 kg)
Standard net weight, dry -- 310 lb (141 kg)
GENERAL MACHINE PERFORMANCE
Maximum travel speed -- 3 mph (4.8 km/h)
Turning radius -- 56 in (1420 mm)

Parts & Support
SCOUT 37B

Interested in purchasing equipment?

Contact our Experts

Need help finding a part?

Ask our Team!
POWER TYPE
Electric motor -- Nominal voltage 24 VDC,
0.75 hp (0.56 kw) @ 2175 rpm, 29 A
Batteries (2) -- 12 V, 530 CCA, 105Ah
Battery charger -- 24 VDC, 15 A output
115 VAC input
Battery charger -- 24 VDC, 15 A, 115/230 VAC
POWER TRAIN
Propelling -- belt driven
Main brush -- belt driven
Side brush option -- belt driven
SUSPENSION SYSTEM
Front (2) -- 4 x 1.37 caster wheels
Rear -- 8 x 2 solid tire
GENERAL MACHINE
DIMENSIONS/CAPACITIES
Length -- 52 in (1320 mm)
Length with side brush -- 62 in (1575 mm)
Width -- 32 in (815 mm)
Width with side brush -- 34.5 in (880 mm)
Height -- 40.25 in (1020 mm)
Track -- 29.75 in (755 mm)
Wheelbase -- 26.5 in (675 mm)
Main brush diameter -- 8 in (205 mm)
Main brush length -- 28.6 in (725 mm)
Side brush diameter -- 16 in (405 mm)
Sweeping path width -- 29 in (735 mm)
Sweeping path width with side brush -- 37 in
(940 mm)
Hopper capacity -- 2.6 cu ft (0.07 m3)
Dust filter area -- 49 sq ft (4.5 m2)
MACHINE WEIGHTS
GVWR -- 435 lb (197 kg)
Standard net weight, dry -- 310 lb (141 kg)
GENERAL MACHINE PERFORMANCE
Maximum travel speed -- 3 mph (4.8 km/h)
Turning radius -- 56 in (1420 mm)

Nobles SCOUT 37B Parts and Support

POWER TYPE
Electric motor -- Nominal voltage 24 VDC,
0.75 hp (0.56 kw) @ 2175 rpm, 29 A
Batteries (2) -- 12 V, 530 CCA, 105Ah
Battery charger -- 24 VDC, 15 A output
115 VAC input
Battery charger -- 24 VDC, 15 A, 115/230 VAC
POWER TRAIN
Propelling -- belt driven
Main brush -- belt driven
Side brush option -- belt driven
SUSPENSION SYSTEM
Front (2) -- 4 x 1.37 caster wheels
Rear -- 8 x 2 solid tire
GENERAL MACHINE
DIMENSIONS/CAPACITIES
Length -- 52 in (1320 mm)
Length with side brush -- 62 in (1575 mm)
Width -- 32 in (815 mm)
Width with side brush -- 34.5 in (880 mm)
Height -- 40.25 in (1020 mm)
Track -- 29.75 in (755 mm)
Wheelbase -- 26.5 in (675 mm)
Main brush diameter -- 8 in (205 mm)
Main brush length -- 28.6 in (725 mm)
Side brush diameter -- 16 in (405 mm)
Sweeping path width -- 29 in (735 mm)
Sweeping path width with side brush -- 37 in
(940 mm)
Hopper capacity -- 2.6 cu ft (0.07 m3)
Dust filter area -- 49 sq ft (4.5 m2)
MACHINE WEIGHTS
GVWR -- 435 lb (197 kg)
Standard net weight, dry -- 310 lb (141 kg)
GENERAL MACHINE PERFORMANCE
Maximum travel speed -- 3 mph (4.8 km/h)
Turning radius -- 56 in (1420 mm)

Parts

  • Product
  • Qty in Cart
  • Quantity
  • Price
  • Subtotal
  • ships same day
    Non-OEM
    - 50amp charger plug SB50 with pins (red) 991-9284

    50amp charger plug SB50 with pins (red) 991-9284

    $6.47
    Matches:164-0833170-1404175-2041175-7491202-0359204354206-0717206-071823-9-209-123-9-20912392091272-96643BY214-2574-2594096666053876331G16W05670060450342572700011727000128.663-411...
    991-9284
    $6.47
    Qty in Cart: 0
    Price:
    $6.47
    Subtotal:
  • ships same day
    Non-OEM
    - 12V 105Ah wet battery (SNSR) 162-0011

    12V 105Ah wet battery (SNSR) 162-0011

    $291.50
    Do you also need battery jumper cables? If so, add part number 998-0010.Specifications:Length: 12.63 in Width: 6.75 in Height: 9.38 in Weight: 58 poundsAmp Hours: 105Voltage: 12Chemical Makeup:...
    162-0011
    $291.50
    Qty in Cart: 0
    Price:
    $291.50
    Subtotal:
  • OEM
    32856 - Center union mix brush - CYLINDRICAL (OBSOLETE) 275-5850

    Center union mix brush - CYLINDRICAL (OBSOLETE) 275-5850

    Call for availability
    Specifications:Weight: 7.665 poundsMatches:175-88843285646977790560340Fits on:Nobles SCOUT 37BService Master PROVAC 2000
    275-5850
    $555.06
    Qty in Cart: 0
    Price:
    $555.06
    Subtotal:
  • OEM
    41396 - Skirt 175-8888

    Skirt 175-8888

    $13.75
    Specifications:Length: 8 in Width: 0.12 in Height: 4.67 in Weight: 0.16 poundsMatches:41396Fits on:Nobles SCOUT 37B
    175-8888
    $13.75
    Qty in Cart: 0
    Price:
    $13.75
    Subtotal:
  • OEM
    4016810 - Brush tube drive cup 175-8954

    Brush tube drive cup 175-8954

    $23.66
    Specifications:Weight: 0.155 poundsMatches:401681041357Fits on:Nobles SCOUT 37B
    175-8954
    $23.66
    Qty in Cart: 0
    Price:
    $23.66
    Subtotal:
  • ships same day
    OEM
    1064191 - Circuit breaker boot (Tennant Industrial) 275-2596

    Circuit breaker boot (Tennant Industrial) 275-2596

    $21.04
    Specifications:Weight: 0.001 poundsMatches:10461731064191175-25469.112-201.091122010May fit on these models - select model and diagram to confirmTennant T7AMRTennant T300Tennant T300ENobles SPEED SCRUB 300Tennant T500Tennant T500ETennant T600eTennant...
    275-2596
    $21.04
    Qty in Cart: 0
    Price:
    $21.04
    Subtotal:
  • ships same day
    Non-OEM
    - Battery jumper cable - ring type (red) 998-0010

    Battery jumper cable - ring type (red) 998-0010

    $6.06
    Specifications:Weight: 0.1 poundsType: BatteryMatches:130364164-0375164-6312164-6831170-0234173-8348175-2529175-3142175-3439175-344022335522335623-9-1981239198141206A6373564-132-164-132164-9-132-164-9-132164132164913217006045032898.682-784...
    998-0010
    $6.06
    Qty in Cart: 0
    Price:
    $6.06
    Subtotal:
  • ships same day
    OEM
    8005852 - Keys (pkg of 2) 175-2150

    Keys (pkg of 2) 175-2150

    $26.95
    Specifications:Weight: 0.053 poundsMatches:222684800585286665680Commonly purchased together:Fits on:Tennant 5680Tennant 5700 SERIESNobles SCOUT 37BTennant S10Tennant S10Tennant S10
    175-2150
    $26.95
    Qty in Cart: 0
    Price:
    $26.95
    Subtotal:
  • OEM
    45962 - Battery terminal cover (clear) 175-2121

    Battery terminal cover (clear) 175-2121

    $5.50
    Specifications:Length: 2.7 in Width: 1.7 in Height: 0.55 in Weight: 0.01 poundsMatches:175-4586175-9439401344545962611223Commonly purchased together:May fit on these models - select model and diagram to confirmTennant 5680Tennant T3Nobles...
    175-2121
    $5.50
    Qty in Cart: 0
    Price:
    $5.50
    Subtotal:
  • OEM
    222114 - Hour meter 175-2536

    Hour meter 175-2536

    $86.79
    Specifications:Weight: 0.051 poundsMatches:175-2085222114319884039823Alternative items:Below are other options that may meet your needs.METER, HOUR$133.75993-0348May fit on these models - select model and diagram to confirmTennant 5700 SERIESTennant...
    175-2536
    $86.79
    Qty in Cart: 0
    Price:
    $86.79
    Subtotal:
  • OEM
    41858 - Rubber seal foam 3/8 x 3/4 x 94 OI 175-9115

    Rubber seal foam 3/8 x 3/4 x 94 OI 175-9115

    $38.12
    Specifications:Weight: 0.125 poundsMatches:40172944185886877480Fits on:Nobles SCOUT 37B
    175-9115
    $38.12
    Qty in Cart: 0
    Price:
    $38.12
    Subtotal:
  • OEM
    07891 - Side brush arm 175-9168

    Side brush arm 175-9168

    $72.82
    Specifications:Weight: 6.725 poundsMatches:07891Fits on:Nobles SCOUT 37B
    175-9168
    $72.82
    Qty in Cart: 0
    Price:
    $72.82
    Subtotal:
  • OEM
    07890 - Brush arm cover weldment 175-9164

    Brush arm cover weldment 175-9164

    $191.29
    Specifications:Weight: 2.46 poundsMatches:07890Fits on:Nobles SCOUT 37B
    175-9164
    $191.29
    Qty in Cart: 0
    Price:
    $191.29
    Subtotal:
  • ships same day
    OEM
    41840 - Duct gasket 175-9124

    Duct gasket 175-9124

    Now: $3.04
    Was: $9.33
    Specifications:Weight: 0.01 poundsMatches:401729141840Fits on:Nobles SCOUT 37B
    175-9124
    Now: $3.04
    Was: $9.33
    Qty in Cart: 0
    Price:
    Now: $3.04
    Was: $9.33
    Subtotal:
  • OEM
    4017279 - Duct gasket 175-9123

    Duct gasket 175-9123

    $17.34
    Specifications:Weight: 0.015 poundsMatches:401727941839Fits on:Nobles SCOUT 37B
    175-9123
    $17.34
    Qty in Cart: 0
    Price:
    $17.34
    Subtotal:
  • OEM

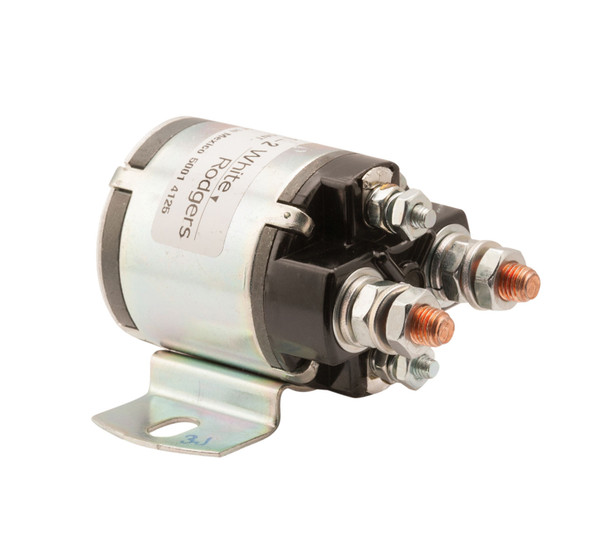

    02424 - 24V 100amp relay 175-9139

    24V 100amp relay 175-9139

    $103.84
    Specifications:Weight: 1.003 poundsType: RelayMatches:024244043204Alternative items:Below are other options that may meet your needs.24V 100amp relay$66.34993-281024V solenoid 4 post (2 large 2 small)$66.28991-1226Pad driver$309.10996-0969Commonly...
    175-9139
    $103.84
    Qty in Cart: 0
    Price:
    $103.84
    Subtotal:
  • OEM
    41838 - Output duct gasket 175-9125

    Output duct gasket 175-9125

    $18.00
    Specifications:Weight: 0.015 poundsMatches:401727841838Fits on:Nobles SCOUT 37B
    175-9125
    $18.00
    Qty in Cart: 0
    Price:
    $18.00
    Subtotal:
  • OEM
    16230 - Skirt 175-8890

    Skirt 175-8890

    $19.03
    Specifications:Weight: 0.11 poundsMatches:16230Fits on:Nobles SCOUT 37B
    175-8890
    $19.03
    Qty in Cart: 0
    Price:
    $19.03
    Subtotal:
  • OEM
    02076 - 90 degree cable boot 175-2122

    90 degree cable boot 175-2122

    $5.50
    Specifications:Weight: 0.003 poundsMatches:020764043187May fit on these models - select model and diagram to confirmTennant 5680Tennant 5700 SERIESTennant 6100Tennant T16Tennant 7200Tennant 7100Tennant 6100ENobles EZ RIDER HPTennant 7400Tennant...
    175-2122
    $5.50
    Qty in Cart: 0
    Price:
    $5.50
    Subtotal:
  • OEM
    01047 - Bushing 175-9165

    Bushing 175-9165

    $10.89
    Specifications:Weight: 0.01 poundsMatches:010474042804May fit on these models - select model and diagram to confirmTennant 6100Tennant 6100ETennant 6200Nobles SCOUT 37BTennant 385Tennant 8400Tennant 510ETennant POWER SWEEPER 186Tennant 515SSTennant...
    175-9165
    $10.89
    Qty in Cart: 0
    Price:
    $10.89
    Subtotal:
