WHIRLAMATIC VS-20

WHIRLAMATIC VS-20

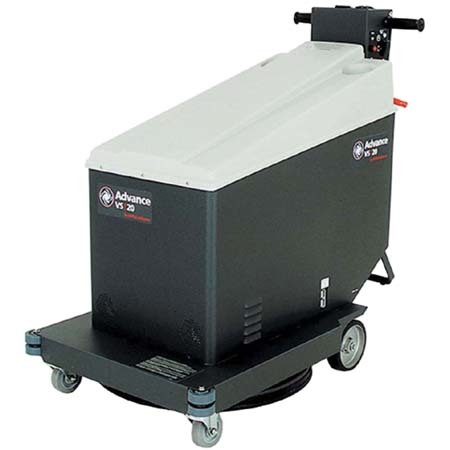

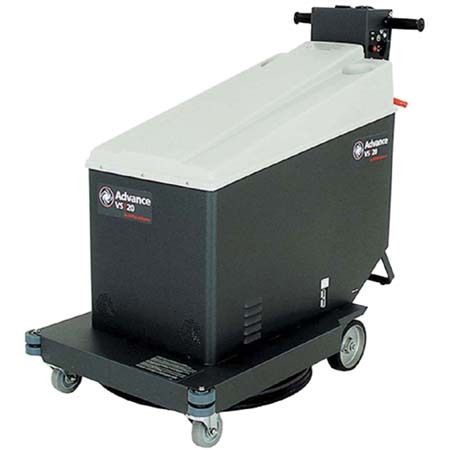

Nilfisk-Advance WHIRLAMATIC VS-20

Interested in purchasing equipment?

Contact our Experts!

Need help finding a part?

Ask our Team! Put a hard, high gloss shine on large-area floors in a hurry with the Whirlamatic VS20 or 20UHSB battery-powered burnishers. These high production model shine a 20 inch(51cm) path at a rate of 27,000 square feet (2500m2) per hour, saving time and money.

Side-by-side comparison tests using a gloss meter on a burnished floor show that the VS20 and 20UHSB produce a brighter shine than competitive battery burnishers.

One reason the VS20 and 20UHSB are so effective is the carefully balanced ratio of weight to pad speed, which produces a spectacular shine on a properly prepared floors. A fully floating pad holder follows uneven floor surfaces, for an even shine. Results are an even, beautiful shine that resists scuffing and wear.

Both models feature a special dust-control system that collects dust in dual collector bags. No need for dust mopping the floor after each burnishing, it's left clean and shiney.

The VS20 model features variable-speed drive to the wheels, for easy transport and working maneuverability. Self-propelling drive on the VS20 glides over the floor with minimal operator effort. Both models have simple controls for easy operation.

Motors: 2.5 hp, 36V DC
Propulsion Means: Permanent magnet drive motor
Batteries: (3) 185 amp hr/12V or (6) 238 amp hr/6V
Sound level: 68 db(A) at operator position
Pad holder: Permanently mounted, flexible, floats vertically and front to rear
Pad pressure: Fully adjustable
Pad speed (r.p.m): Varies with pressure/amp draw (2,500 no load, 2,000 under load)
Pad size: 20" (51 cm) diameter
Dust collection: (2) paper filter/collector bags mounted on specially designed dust control shroud/ pad housing, heavy-duty felt edging material seals/controls air flow
Length: 46" (117 cm)
Width: 25.5" (65 cm)
Height: 40" (102 cm)
Weight w/o batteries: 227 lbs (103 kg)
Weight w/3 x 185 amp hr batteries: 612 lbs. (278 kg)
Weight w/6 x 238 amp hr batteries: 652 lbs. (296 kg)
Shipping weight(machine only): 302 lbs. (137 kg)

WHIRLAMATIC VS-20

Interested in purchasing equipment?

Contact our Experts

Need help finding a part?

Ask our Team!
Put a hard, high gloss shine on large-area floors in a hurry with the Whirlamatic VS20 or 20UHSB battery-powered burnishers. These high production model shine a 20 inch(51cm) path at a rate of 27,000 square feet (2500m2) per hour, saving time and money.

Side-by-side comparison tests using a gloss meter on a burnished floor show that the VS20 and 20UHSB produce a brighter shine than competitive battery burnishers.

One reason the VS20 and 20UHSB are so effective is the carefully balanced ratio of weight to pad speed, which produces a spectacular shine on a properly prepared floors. A fully floating pad holder follows uneven floor surfaces, for an even shine. Results are an even, beautiful shine that resists scuffing and wear.

Both models feature a special dust-control system that collects dust in dual collector bags. No need for dust mopping the floor after each burnishing, it's left clean and shiney.

The VS20 model features variable-speed drive to the wheels, for easy transport and working maneuverability. Self-propelling drive on the VS20 glides over the floor with minimal operator effort. Both models have simple controls for easy operation.

Motors: 2.5 hp, 36V DC
Propulsion Means: Permanent magnet drive motor
Batteries: (3) 185 amp hr/12V or (6) 238 amp hr/6V
Sound level: 68 db(A) at operator position
Pad holder: Permanently mounted, flexible, floats vertically and front to rear
Pad pressure: Fully adjustable
Pad speed (r.p.m): Varies with pressure/amp draw (2,500 no load, 2,000 under load)
Pad size: 20" (51 cm) diameter
Dust collection: (2) paper filter/collector bags mounted on specially designed dust control shroud/ pad housing, heavy-duty felt edging material seals/controls air flow
Length: 46" (117 cm)
Width: 25.5" (65 cm)
Height: 40" (102 cm)
Weight w/o batteries: 227 lbs (103 kg)
Weight w/3 x 185 amp hr batteries: 612 lbs. (278 kg)
Weight w/6 x 238 amp hr batteries: 652 lbs. (296 kg)
Shipping weight(machine only): 302 lbs. (137 kg)

Nilfisk-Advance WHIRLAMATIC VS-20 Parts and Support

Put a hard, high gloss shine on large-area floors in a hurry with the Whirlamatic VS20 or 20UHSB battery-powered burnishers. These high production model shine a 20 inch(51cm) path at a rate of 27,000 square feet (2500m2) per hour, saving time and money.

Side-by-side comparison tests using a gloss meter on a burnished floor show that the VS20 and 20UHSB produce a brighter shine than competitive battery burnishers.

One reason the VS20 and 20UHSB are so effective is the carefully balanced ratio of weight to pad speed, which produces a spectacular shine on a properly prepared floors. A fully floating pad holder follows uneven floor surfaces, for an even shine. Results are an even, beautiful shine that resists scuffing and wear.

Both models feature a special dust-control system that collects dust in dual collector bags. No need for dust mopping the floor after each burnishing, it's left clean and shiney.

The VS20 model features variable-speed drive to the wheels, for easy transport and working maneuverability. Self-propelling drive on the VS20 glides over the floor with minimal operator effort. Both models have simple controls for easy operation.

Motors: 2.5 hp, 36V DC
Propulsion Means: Permanent magnet drive motor
Batteries: (3) 185 amp hr/12V or (6) 238 amp hr/6V
Sound level: 68 db(A) at operator position
Pad holder: Permanently mounted, flexible, floats vertically and front to rear
Pad pressure: Fully adjustable
Pad speed (r.p.m): Varies with pressure/amp draw (2,500 no load, 2,000 under load)
Pad size: 20" (51 cm) diameter
Dust collection: (2) paper filter/collector bags mounted on specially designed dust control shroud/ pad housing, heavy-duty felt edging material seals/controls air flow
Length: 46" (117 cm)
Width: 25.5" (65 cm)
Height: 40" (102 cm)
Weight w/o batteries: 227 lbs (103 kg)
Weight w/3 x 185 amp hr batteries: 612 lbs. (278 kg)
Weight w/6 x 238 amp hr batteries: 652 lbs. (296 kg)
Shipping weight(machine only): 302 lbs. (137 kg)

Parts

  • Product
  • Qty in Cart
  • Quantity
  • Price
  • Subtotal
  • ships same day
    Non-OEM
     - 12V 105Ah wet battery (SNSR) 162-0011

    12V 105Ah wet battery (SNSR) 162-0011

    $291.50
    Do you also need battery jumper cables? If so, add part number 998-0010.Specifications:Length: 12.63 in Width: 6.75 in Height: 9.38 in Weight: 58 poundsAmp Hours: 105Voltage: 12Chemical Makeup:...
    $291.50
    Qty in Cart: 0
    Price:
    $291.50
    Subtotal:
  • Non-OEM
     - Wire 4 x14.5, 3/8 ring x 3/8 ring 991-6025

    Wire 4 x14.5, 3/8 ring x 3/8 ring 991-6025

    $16.98
    Matches:23-9-198123919818.626-020.086260200Alternative items:Below are other options that may meet your needs.Battery jumper cable - ring type (red)$6.06998-0010Wire 4 x14.5, 3/8 ring x 3/8 ring$15.30993-2792Commonly purchased together:May fit on these...
    $16.98
    Qty in Cart: 0
    Price:
    $16.98
    Subtotal:
  • OEM
    365002 - Rubber pedal pad 272-1983

    Rubber pedal pad 272-1983

    $10.85
    Specifications:Weight: 0.125 poundsMatches:172-0130325584365002563255845636500286731050May fit on these models - select model and diagram to confirmNilfisk-Advance WHIRLAMATIC UHSB20Nilfisk-Advance CONVERTAMAX 26Nilfisk-Advance WHIRLAMATIC...
    $10.85
    Qty in Cart: 0
    Price:
    $10.85
    Subtotal:
  • OEM
    200751 - Gasket 172-3125

    Gasket 172-3125

    $9.35
    Specifications:Weight: 0.2 poundsMatches:2007515620075188031740Fits on:Nilfisk-Advance WHIRLAMATIC VS-20
    $9.35
    Qty in Cart: 0
    Price:
    $9.35
    Subtotal:
  • OEM
    393583 - Pedal weldment assembly 172-2820

    Pedal weldment assembly 172-2820

    $164.67
    Matches:388184393583563881845639358386618320May fit on these models - select model and diagram to confirmNilfisk-Advance WHIRLAMATIC UHSB20Nilfisk-Advance WHIRLAMATIC VS-20Kent (Nilfisk-Advance) SELECTGLOSS 20BNilfisk-Advance WHIRLAMATIC...
    $164.67
    Qty in Cart: 0
    Price:
    $164.67
    Subtotal:
  • ships same day
    OEM
    56393565 - 20 inch skirt assembly 172-3072

    20 inch skirt assembly 172-3072

    $80.41
    Specifications:Weight: 0.95 poundsMatches:172-4190172-8190201567201568272-84973935633935643935655620156756201568563935635639356456393565Commonly purchased together:Fits on:Nilfisk-Advance WHIRLAMATIC UHSB20Nilfisk-Advance WHIRLAMATIC VS-20Nilfisk-Advance...
    $80.41
    Qty in Cart: 0
    Price:
    $80.41
    Subtotal:
  • ships same day
    Non-OEM
     - Handle grip 991-8571

    Handle grip 991-8571

    $4.04
    Matches:200823222648269188133929013885455638854586608610GRA-2000GRA2000MP366900MP6300Alternative items:Below are other options that may meet your needs.GRIP-HANDLE 290-1138$4.95993-0254Commonly purchased together:May fit on these models - select model...
    $4.04
    Qty in Cart: 0
    Price:
    $4.04
    Subtotal:
  • Non-OEM
     - 15amp circuit breaker 991-8539

    15amp circuit breaker 991-8539

    $7.74
    Specifications:Type: Circuit BreakerMatches:20361275-617341419A56454538603487603487AM6051977401308661874091165780WK46897Alternative items:Below are other options that may meet your needs.15A.CIRCUIT BRK.740130$12.52993-0333Commonly purchased together:May...
    $7.74
    Qty in Cart: 0
    Price:
    $7.74
    Subtotal:
  • Non-OEM
     - Paper vacuum bags (pkg of 10) (OBSOLETE) 991-9029

    Paper vacuum bags (pkg of 10) (OBSOLETE) 991-9029

    Call for availability
    Nilfisk Whirlamatic VS20 Burnisher, Advolution 2710 Burnisher Replacement Vacuum bags. These replacement vacuum bags use the highest quality filter media including Melt-Blown inner liner in order to achieve filtration efficiencies up to 99.9%. Designed...
    $10.21
    Qty in Cart: 0
    Price:
    $10.21
    Subtotal:
  • OEM
    393566 - Dust shroud assembly 172-1272

    Dust shroud assembly (OBSOLETE) 172-1272

    Call for availability
    Specifications:Weight: 2.012 poundsMatches:3935665639356686700210May fit on these models - select model and diagram to confirmNilfisk-Advance WHIRLAMATIC UHSB20Nilfisk-Advance WHIRLAMATIC VS-20Kent (Nilfisk-Advance) SELECTGLOSS 20BNilfisk-Advance...
    $284.00
    Qty in Cart: 0
    Price:
    $284.00
    Subtotal:
  • Non-OEM

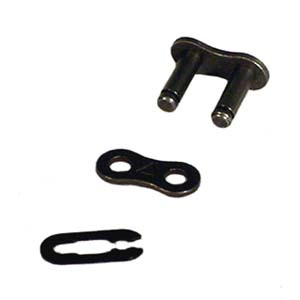

     - Chain (sold by the link) 991-0105

    Chain (sold by the link) 991-0105

    $0.43
    Specifications:Weight: 0.01 poundsMatches:172-312832-10349-9-074149907415639373888024290C-3500May fit on these models - select model and diagram to confirmNilfisk-Advance WHIRLAMATIC VS-20Minuteman MAXRIDE 20 ROBOSCRUBNSS Enterprises PONY 20SCA
    $0.43
    Qty in Cart: 0
    Price:
    $0.43
    Subtotal:
  • Total: items /
