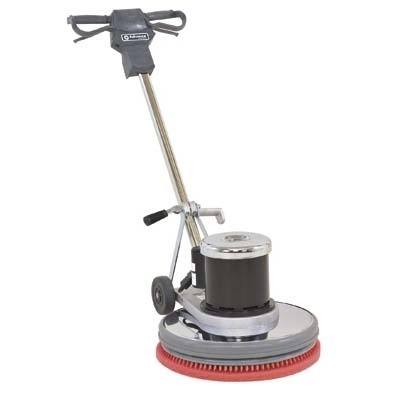

Whether stripping, scrubbing, screening, or bonnet cleaning, the Advance Pacesetter™ line of floor machines has a model to fit your needs and applications. Each of the four Pacesetter models is built with an all cast metal, chrome plated base. The heavy-duty construction and durability of the Pacesetter sets it above the competition.

All Pacesetter models have an ergonomic molded handle that protects the user’s hands during operation along walls and around corners. A red safety-lock switch allows the operator to easily control when the machine goes into operation. An easy-to-use compression style lever changes the height adjustment of the handle for all operators. Pad holders are standard on the Pacesetter, and the yellow, super-flex cord offers ease in cord handling and reduced tangling. A clear plastic hospital plug allows the operator to verify the electrical integrity of the connection at each use of the machine.

At 1.5 hp, 175 rpm, the Pacesetter™ HD is available in 17 and 20 inch sizes. A triple-planetary gear design lasts longer than other gear drives because they do not develop a wear pattern. A sealed gear-box requires no maintenance.

-Safety activation switch on all models
-Easy to use compression adjuster for handle height
-Convenient cord wrap holder
-Heavy gauge metal construction throughout base
-Base is cast metal and chrome plated for easy cleanup
-Large non-marking rear wheels make transporting easy

Pad / Brush Size: 20 in (50.8 cm)
Pad Drive System
Motor Horsepower: 1.5 hp AC
Frame Size: 66
Motor Amps: 15 A
Capacitors: Dual, start and run
Motor Voltage: 120 V
Revolutions Per Minute: 175 rpm
Transmission: Triple planetary gears-all metal
Clutch Plate: NP 92 (industry standard)
Body Construction: All steel with chrome plated bell housing and handle shaft with compression style handle height adjustment.
Includes rubber wheels for transportation. – ALL MODELS
Machine Weight: 102 lb (46 kg)
Power Cord
Length : 50 ft/ 15.25 m – ALL MODELS
Type: Safety Yellow Super-flex with hospital grade plug – ALL MODELS
Operator Handle: Comfortable and solid handle with safety interlock activation preventing accidental start-up – ALL MODELS
Noise Level: 65 dB A
Approvals: ETL, CSA
