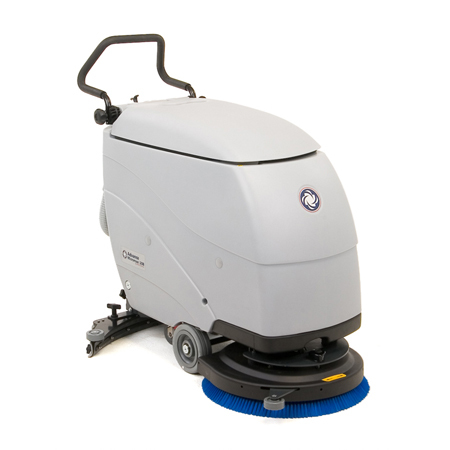

The Micromax™ 17B and 20B are battery-operated for maximum productivity with 17 in and 20 in disc scrub paths respectively. All three models feature click-off/click-on scrub heads, hospital-quiet operation, and heavy-duty steel frames.
The Micromax™ packs 9.6 gallons of solution/recovery capacity into a compact highly maneuverable design. The heavy-duty, center-pivot squeegee system provides excellent blade pressure and allows the Micromax™ to pivot on its access while picking up all dirty solution.
The Micromax™ 17B and 20B are available with both wet-acid and
maintenance-free, gel battery options. They also feature standard onboard battery chargers.
Scrub Path: 17 in (43 cm)/20 in (51cm)
Max Productivity Per Hour: 22,400 ft2 (2,081 m2)/26,400 ft2 (2,453m2)@ 3 mph/4.8 kph
Scrub Head: 17 in (43 cm)/20 in (51 cm) disc
Power Source: (2) 12 V batteries 105 Ah wet or 98 Ah gel (onboard charger)
Brush Speed: 170 rpm
Brush Pressure: 60 lb (27 kg)
Brush Motor: 0.68 hp (510 W)
Solution System: Gravity feed, variable
Solution Tank: 9.6 gal (36 L)
Recovery Tank: 9.6 gal (36 L)
Vacuum Motor: 0.68 hp (510 W)
Sound Level: 64 dB A
Drive System: Brush-Assist
Length: 47 in (119 cm) -extended handle
Width (w/o squeegee): 20 in (51 cm)
Height: 34 in (86 cm) -top of tank
Squeegee Width: 30.3 in (77 cm)
Weight: 197 lb (90 kg) -w/o batteries 307 lb (139 kg) w/ std batteries
Nilfisk-Advance MICROMAX 20B Parts and Support
Advance Micromax™ walk-behind automatic scrubbers are designed to offer premium features, simple operation, high durability, and maximum productivity.
The Micromax™ 17B and 20B are battery-operated for maximum productivity with 17 in and 20 in disc scrub paths respectively. All three models feature click-off/click-on scrub heads, hospital-quiet operation, and heavy-duty steel frames.
The Micromax™ packs 9.6 gallons of solution/recovery capacity into a compact highly maneuverable design. The heavy-duty, center-pivot squeegee system provides excellent blade pressure and allows the Micromax™ to pivot on its access while picking up all dirty solution.
The Micromax™ 17B and 20B are available with both wet-acid and
maintenance-free, gel battery options. They also feature standard onboard battery chargers.
Scrub Path: 17 in (43 cm)/20 in (51cm)
Max Productivity Per Hour: 22,400 ft2 (2,081 m2)/26,400 ft2 (2,453m2)@ 3 mph/4.8 kph
Scrub Head: 17 in (43 cm)/20 in (51 cm) disc
Power Source: (2) 12 V batteries 105 Ah wet or 98 Ah gel (onboard charger)
Brush Speed: 170 rpm
Brush Pressure: 60 lb (27 kg)
Brush Motor: 0.68 hp (510 W)
Solution System: Gravity feed, variable
Solution Tank: 9.6 gal (36 L)
Recovery Tank: 9.6 gal (36 L)
Vacuum Motor: 0.68 hp (510 W)
Sound Level: 64 dB A
Drive System: Brush-Assist
Length: 47 in (119 cm) -extended handle
Width (w/o squeegee): 20 in (51 cm)
Height: 34 in (86 cm) -top of tank
Squeegee Width: 30.3 in (77 cm)
Weight: 197 lb (90 kg) -w/o batteries 307 lb (139 kg) w/ std batteries
The Micromax™ 17B and 20B are battery-operated for maximum productivity with 17 in and 20 in disc scrub paths respectively. All three models feature click-off/click-on scrub heads, hospital-quiet operation, and heavy-duty steel frames.
The Micromax™ packs 9.6 gallons of solution/recovery capacity into a compact highly maneuverable design. The heavy-duty, center-pivot squeegee system provides excellent blade pressure and allows the Micromax™ to pivot on its access while picking up all dirty solution.
The Micromax™ 17B and 20B are available with both wet-acid and
maintenance-free, gel battery options. They also feature standard onboard battery chargers.
Scrub Path: 17 in (43 cm)/20 in (51cm)
Max Productivity Per Hour: 22,400 ft2 (2,081 m2)/26,400 ft2 (2,453m2)@ 3 mph/4.8 kph
Scrub Head: 17 in (43 cm)/20 in (51 cm) disc
Power Source: (2) 12 V batteries 105 Ah wet or 98 Ah gel (onboard charger)
Brush Speed: 170 rpm
Brush Pressure: 60 lb (27 kg)
Brush Motor: 0.68 hp (510 W)
Solution System: Gravity feed, variable
Solution Tank: 9.6 gal (36 L)
Recovery Tank: 9.6 gal (36 L)
Vacuum Motor: 0.68 hp (510 W)
Sound Level: 64 dB A
Drive System: Brush-Assist
Length: 47 in (119 cm) -extended handle
Width (w/o squeegee): 20 in (51 cm)
Height: 34 in (86 cm) -top of tank
Squeegee Width: 30.3 in (77 cm)
Weight: 197 lb (90 kg) -w/o batteries 307 lb (139 kg) w/ std batteries
Parts
Can't find what you need? Click here or call 1-800-USA-CLEAN
In the market for a new machine? You can find quality new and reconditioned floor care equipment at one of our vendor partners:
Need a professional? We offer service both virtually and in person.
Learn more
Diagrams
- View all diagrams
- - Pad Holders
- -Simplified Electrical System
- -Simplified Recovery System
- -Simplified Solution System
- Batteries, Brushes and Charger
- Chassis Assembly
- Control Panel Assembly
- Pads
- Scrub Deck Assembly
- Solution System
- Squeegee Assembly
- Tank System Assembly
- Wiring Diagram
- Wiring System Assembly
