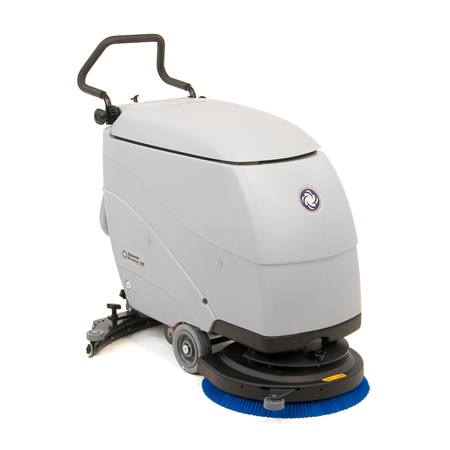

The Micromax™ family consists of three models. The Micromax™ 17E is a cord-electric version with a 17 in disc scrub path designed for minimal maintenance. The Micromax™ 17B and 20B are battery-operated for maximum productivity with 17 in and 20 in disc scrub paths respectively. All three models feature click-off/click-on scrub heads, hospital-quiet operation, and heavy-duty steel frames.
The Micromax™ packs 9.6 gallons of solution/recovery capacity into a compact highly maneuverable design. The heavy-duty, center-pivot squeegee system provides excellent blade pressure and allows the Micromax™ to pivot on its access while picking up all dirty solution.
The Micromax™ 17B and 20B are available with both wet-acid and maintenance-free, gel battery options. They also feature standard onboard battery chargers.
In keeping with the Total Clean™ philosophy, the Micromax™ is constructed with a clamshell design that allows complete and easy access to all machine components. Total Clean™ features result in lower total cost of ownership and increased productivity to drive down the cost of cleaning.
The Advance Micromax™ is a great example of how Advance continues the tradition of delivering superior quality and innovative features.
Scrub Path 17 in (43 cm)/20 in (51cm)
Max Productivity Per Hour 22,400 ft2 (2,081 m2)/26,400 ft2 (2,453 m2 ) @ 3 mph/4.8 kph
Scrub Head 17 in (43 cm) disc
Power Source (2) 12V batteries 105 Ah wet with or 98 Ah gel (onboard charger)
Brush Speed 170 rpm
Brush Pressure 60 lb (27 kg)
Brush Motor 0.68 hp (510 W)
Solution System Gravity feed, variable
Solution Tank 9.6 gal (36 L)
Recovery Tank 9.6 gal (36 L)
Vacuum Motor 0.68 hp (510 W)
Sound Level 64 dB A
Drive System Brush-Assist
Length 47 in (119 cm) -extended handle
Width (w/o squeegee) 20 in (51 cm)
Height 34 in (86 cm) -top of tank
Squeegee Width 30.3 in (77 cm)
Nilfisk-Advance MICROMAX 17B Parts and Support
Advance Micromax™ walk-behind automatic scrubbers are designed to offer premium features, simple operation, high durability, and maximum productivity.
The Micromax™ family consists of three models. The Micromax™ 17E is a cord-electric version with a 17 in disc scrub path designed for minimal maintenance. The Micromax™ 17B and 20B are battery-operated for maximum productivity with 17 in and 20 in disc scrub paths respectively. All three models feature click-off/click-on scrub heads, hospital-quiet operation, and heavy-duty steel frames.
The Micromax™ packs 9.6 gallons of solution/recovery capacity into a compact highly maneuverable design. The heavy-duty, center-pivot squeegee system provides excellent blade pressure and allows the Micromax™ to pivot on its access while picking up all dirty solution.
The Micromax™ 17B and 20B are available with both wet-acid and maintenance-free, gel battery options. They also feature standard onboard battery chargers.
In keeping with the Total Clean™ philosophy, the Micromax™ is constructed with a clamshell design that allows complete and easy access to all machine components. Total Clean™ features result in lower total cost of ownership and increased productivity to drive down the cost of cleaning.
The Advance Micromax™ is a great example of how Advance continues the tradition of delivering superior quality and innovative features.
Scrub Path 17 in (43 cm)/20 in (51cm)
Max Productivity Per Hour 22,400 ft2 (2,081 m2)/26,400 ft2 (2,453 m2 ) @ 3 mph/4.8 kph
Scrub Head 17 in (43 cm) disc
Power Source (2) 12V batteries 105 Ah wet with or 98 Ah gel (onboard charger)
Brush Speed 170 rpm
Brush Pressure 60 lb (27 kg)
Brush Motor 0.68 hp (510 W)
Solution System Gravity feed, variable
Solution Tank 9.6 gal (36 L)
Recovery Tank 9.6 gal (36 L)
Vacuum Motor 0.68 hp (510 W)
Sound Level 64 dB A
Drive System Brush-Assist
Length 47 in (119 cm) -extended handle
Width (w/o squeegee) 20 in (51 cm)
Height 34 in (86 cm) -top of tank
Squeegee Width 30.3 in (77 cm)
The Micromax™ family consists of three models. The Micromax™ 17E is a cord-electric version with a 17 in disc scrub path designed for minimal maintenance. The Micromax™ 17B and 20B are battery-operated for maximum productivity with 17 in and 20 in disc scrub paths respectively. All three models feature click-off/click-on scrub heads, hospital-quiet operation, and heavy-duty steel frames.
The Micromax™ packs 9.6 gallons of solution/recovery capacity into a compact highly maneuverable design. The heavy-duty, center-pivot squeegee system provides excellent blade pressure and allows the Micromax™ to pivot on its access while picking up all dirty solution.
The Micromax™ 17B and 20B are available with both wet-acid and maintenance-free, gel battery options. They also feature standard onboard battery chargers.
In keeping with the Total Clean™ philosophy, the Micromax™ is constructed with a clamshell design that allows complete and easy access to all machine components. Total Clean™ features result in lower total cost of ownership and increased productivity to drive down the cost of cleaning.
The Advance Micromax™ is a great example of how Advance continues the tradition of delivering superior quality and innovative features.
Scrub Path 17 in (43 cm)/20 in (51cm)
Max Productivity Per Hour 22,400 ft2 (2,081 m2)/26,400 ft2 (2,453 m2 ) @ 3 mph/4.8 kph
Scrub Head 17 in (43 cm) disc
Power Source (2) 12V batteries 105 Ah wet with or 98 Ah gel (onboard charger)
Brush Speed 170 rpm
Brush Pressure 60 lb (27 kg)
Brush Motor 0.68 hp (510 W)
Solution System Gravity feed, variable
Solution Tank 9.6 gal (36 L)
Recovery Tank 9.6 gal (36 L)
Vacuum Motor 0.68 hp (510 W)
Sound Level 64 dB A
Drive System Brush-Assist
Length 47 in (119 cm) -extended handle
Width (w/o squeegee) 20 in (51 cm)
Height 34 in (86 cm) -top of tank
Squeegee Width 30.3 in (77 cm)
