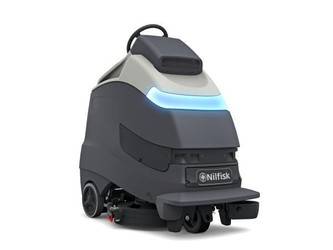

By successfully integrating an array of 3D, 2D, infrared and depth sensors within a high-performance scrubber-dryer, Nilfisk has elevated floorcare to new standards of both effectiveness and efficiency.
Productivity and Safety go hand in hand
Safety-certified, fully autonomous and designed for consistent results with minimal oversight, the Nilfisk Liberty SC50 allows operators to focus on tasks that benefit the most from valuable human effort, and provides the means for unmatched productivity in any cleaning operation.
Because safety is a prime objective when working with autonomous solutions, the Nilfisk Liberty SC50 is engineered to ensure smooth synergy within its operating environment.
•Adjusts in real-time to route changes and obstacles including people
•User-access configuration prevents unauthorized intervention
•Leaves floors spotless and dry to reduce high-traffic slip risks
The newest member of your high-performance team
The Nilfisk Liberty SC50 gives you programmable floorcare that adapts to your needs. Three distinct cleaning modes give you the power to optimize productivity, and as the world’s only 3rd-party certified autonomous cleaning solution, it’s ideal for operation in a variety of populated environments.
Scrub head: Disc
Scrub path: 51 cm (20in)
Solution/recovery tank capacity: 57/53 L (15/14gal)
Voltage (V): 24
Battery capacity (Ah/5): 255
Protection class: IPX4
Scrub brush speed: 157 RPM
Handle vibration level (m/s²): 0.17
Vibration level at the operator's body (m/s²): 0.01
Max. theoretical productivity: 1,936 m2/hr (20,839ft2/hr)
Sound level (IEC60335-2-72): 63 dB A / .029344 uPa
Gradeability transport % (DEG): 15% (8.53 degrees)
Gradeability working % (DEG): 9% (5.14 degrees)
Min. turn-around aisle width (cm): 159.2 (62.7in)
Squeegee width (cm): 76.7 (30.2in)
Length (cm): 135.5 (53.3in)
Width (cm):76.1 (30.0in)
Height (cm): 144.1 (56.8in)
Gross weight (gvw) (kg): 484.4 (1067.9lb)
Max. transport autonomous: 1.055 m/s (2.35 mph)
Max. transport speed - manual Fwd.: 5.0 kph (3.1 mph)
Max transport speed - manual rev.: 2.6 kph (1.62 mph)
Nilfisk-Advance Liberty SC50 Parts and Support
With a century's knowledge behind its development, and today's most advanced robotics technology powering it's capabilities, the autonomous Nilfisk Liberty SC50 represents our commitment to delivering the world's most intelligent cleaning solutions.
By successfully integrating an array of 3D, 2D, infrared and depth sensors within a high-performance scrubber-dryer, Nilfisk has elevated floorcare to new standards of both effectiveness and efficiency.
Productivity and Safety go hand in hand
Safety-certified, fully autonomous and designed for consistent results with minimal oversight, the Nilfisk Liberty SC50 allows operators to focus on tasks that benefit the most from valuable human effort, and provides the means for unmatched productivity in any cleaning operation.
Because safety is a prime objective when working with autonomous solutions, the Nilfisk Liberty SC50 is engineered to ensure smooth synergy within its operating environment.
•Adjusts in real-time to route changes and obstacles including people
•User-access configuration prevents unauthorized intervention
•Leaves floors spotless and dry to reduce high-traffic slip risks
The newest member of your high-performance team
The Nilfisk Liberty SC50 gives you programmable floorcare that adapts to your needs. Three distinct cleaning modes give you the power to optimize productivity, and as the world’s only 3rd-party certified autonomous cleaning solution, it’s ideal for operation in a variety of populated environments.
Scrub head: Disc
Scrub path: 51 cm (20in)
Solution/recovery tank capacity: 57/53 L (15/14gal)
Voltage (V): 24
Battery capacity (Ah/5): 255
Protection class: IPX4
Scrub brush speed: 157 RPM
Handle vibration level (m/s²): 0.17
Vibration level at the operator's body (m/s²): 0.01
Max. theoretical productivity: 1,936 m2/hr (20,839ft2/hr)
Sound level (IEC60335-2-72): 63 dB A / .029344 uPa
Gradeability transport % (DEG): 15% (8.53 degrees)
Gradeability working % (DEG): 9% (5.14 degrees)
Min. turn-around aisle width (cm): 159.2 (62.7in)
Squeegee width (cm): 76.7 (30.2in)
Length (cm): 135.5 (53.3in)
Width (cm):76.1 (30.0in)
Height (cm): 144.1 (56.8in)
Gross weight (gvw) (kg): 484.4 (1067.9lb)
Max. transport autonomous: 1.055 m/s (2.35 mph)
Max. transport speed - manual Fwd.: 5.0 kph (3.1 mph)
Max transport speed - manual rev.: 2.6 kph (1.62 mph)
By successfully integrating an array of 3D, 2D, infrared and depth sensors within a high-performance scrubber-dryer, Nilfisk has elevated floorcare to new standards of both effectiveness and efficiency.
Productivity and Safety go hand in hand
Safety-certified, fully autonomous and designed for consistent results with minimal oversight, the Nilfisk Liberty SC50 allows operators to focus on tasks that benefit the most from valuable human effort, and provides the means for unmatched productivity in any cleaning operation.
Because safety is a prime objective when working with autonomous solutions, the Nilfisk Liberty SC50 is engineered to ensure smooth synergy within its operating environment.
•Adjusts in real-time to route changes and obstacles including people
•User-access configuration prevents unauthorized intervention
•Leaves floors spotless and dry to reduce high-traffic slip risks
The newest member of your high-performance team
The Nilfisk Liberty SC50 gives you programmable floorcare that adapts to your needs. Three distinct cleaning modes give you the power to optimize productivity, and as the world’s only 3rd-party certified autonomous cleaning solution, it’s ideal for operation in a variety of populated environments.
Scrub head: Disc
Scrub path: 51 cm (20in)
Solution/recovery tank capacity: 57/53 L (15/14gal)
Voltage (V): 24
Battery capacity (Ah/5): 255
Protection class: IPX4
Scrub brush speed: 157 RPM
Handle vibration level (m/s²): 0.17
Vibration level at the operator's body (m/s²): 0.01
Max. theoretical productivity: 1,936 m2/hr (20,839ft2/hr)
Sound level (IEC60335-2-72): 63 dB A / .029344 uPa
Gradeability transport % (DEG): 15% (8.53 degrees)
Gradeability working % (DEG): 9% (5.14 degrees)
Min. turn-around aisle width (cm): 159.2 (62.7in)
Squeegee width (cm): 76.7 (30.2in)
Length (cm): 135.5 (53.3in)
Width (cm):76.1 (30.0in)
Height (cm): 144.1 (56.8in)
Gross weight (gvw) (kg): 484.4 (1067.9lb)
Max. transport autonomous: 1.055 m/s (2.35 mph)
Max. transport speed - manual Fwd.: 5.0 kph (3.1 mph)
Max transport speed - manual rev.: 2.6 kph (1.62 mph)
Parts
Can't find what you need? Click here or call 1-800-USA-CLEAN
Need a professional? We offer in person service.
Learn more
Diagrams
- View all diagrams
- - Commonly Asked For Parts
- 2D Sensor Assembly- Left
- 2D Sensor Assembly-Right
- Chassis System Assembly
- Control System Assembly
- Decal System Assembly
- Disc Brush Motor Assembly
- Drive Wheel Assembly
- Electrical System Assembly- 1
- Electrical System Assembly- 2
- Electrical System Assembly- 3
- Electrical System Assembly- 4
- General View Assembly
- Ladder Diagram Assembly- 1
- Ladder Diagram Assembly- 2
- Ladder Diagram Assembly- 3
- Ladder Diagram Assembly- 4
- Ladder Diagram Assembly- 5
- Ladder Diagram Assembly- 6
- Ladder Diagram Assembly- 7
- Lead Acid Battery System
- Lithium Ion Battery System Assembly
- Optional Kits and Accessories
- Platform Assembly
- Recovery System Assembly
- Scrub System Assembly- 20D
- Scrub System-Rev Assembly
- Solution System Assembly- 1
- Solution System Assembly- 2
- Squeegee System Assembly
Manuals
Bulletins
- 3D Camera Kit Replacement
- Antenna and Hood Cover Replacement
- Autonomy Module Kit Replacement
- Broken Electromagnetic Brake Wire - Fault code 3-036
- Cellular Gateway Kit Replacement
- Creaking from Drive Wheel Area
- Distance Sensor Kit Replacement
- Drive Position Encoder Kit Replacement
- Electromagnetic Brake Replacement
- Firmware 9.4.3 Autonomous Error Codes
- Interface Panel Kit Replacement
- IoT Module Not Powering Up
- Left Safety Sensor Kit Replacement
- Lithium-Ion Base Kit
- Lithium-Ion Expansion Kit
- Location Tag Installation
- Noise Suppression Kit
- Platform Support Kit Replacement
- Potentiometer Kit Replacement
- Right Safety Sensor Kit Replacement
- Safety Sensor Lens Kit Replacement
- SC50 Fuses
- Squeegee Knob Kit Replacement
- Squeegee Wheels Locking Up Due to Debris
- Trackclean Kit Replacement
- User Interface Kit Replacement
- Wheel Encoder Contact with Platform
