This high-performance commercial-duty vacuum makes fast, thorough cleaning of large carpeted areas a reality. The Carpetriever 28XP removes litter and dirt from all types of carpeting. Embedded dirt and dust shaken loose by the motorized brush and picked up by the powerful vacuum.

The Carpetriever cleans a 28 inch (71 cm) path in one pass. The operator walks a straight line behind the machine, no back and forth movement. Once over does it. The specially designed intake shoe, brush chamber and vacuum tube opening maximize suction from dual one horsepower vac motors. The wide cleaning path provides productivity.

The short wheel base makes it easy to maneuver around furniture, and quick on turns. At the proper brush height setting, the motorized nylon brush helps propel the vac, minimizing operator fatigue.

A convenient hose/wand on the 28XP is mounted within easy grasp. Just remove the wand from its bracket and pull the vacuum shift knob for pick up on stairs or furniture. No assembling of tools required for off-the-floor cleaning.

The filter/collector bag is completely enclosed and prevents dust from getting into the air. The front shroud comes off easily for bag removal for replacement, or for internal maintenance needs.

The Carpetriever is a durable performer that will give years of service.

Vacuum Motor: Dual one hp, single-stage, 115v/60 Hz, (230v/50 Hz) 145 CFM (4104 l./min.) at three inch (7.6 cm) vacuum orifice
Brush Motor: .25 hp, split phase, 115v/60 Hz (230v/50 Hz)

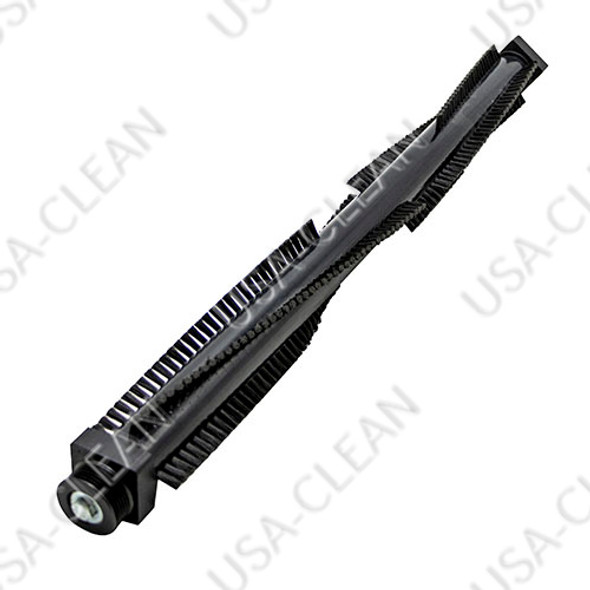

Brush: 25.5 inches (65 cm) long with nylon spiral bristles
Filter System: Top-filling cloth or paper collector bag collects dust and debris. Secondary foam filters protect vac motors. A polyurethane third filter for exhaust filter air.

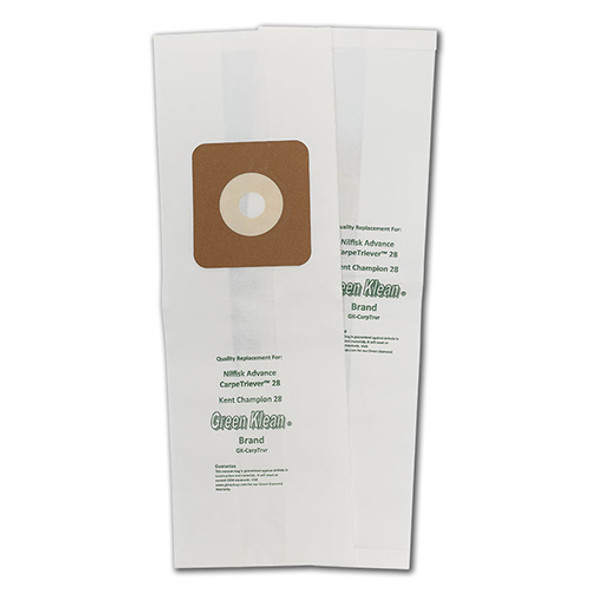

Bag Capacity: One bushel (35 l.) reusable cloth or disposable paper.
Built-in Hose and Wand: 14 inch (36 cm) hose stretches to 56 inches (142 cm). Wand is 24 inches (61 cm) long.
Power Cable: 75 ft (23 m), 14/3 wire

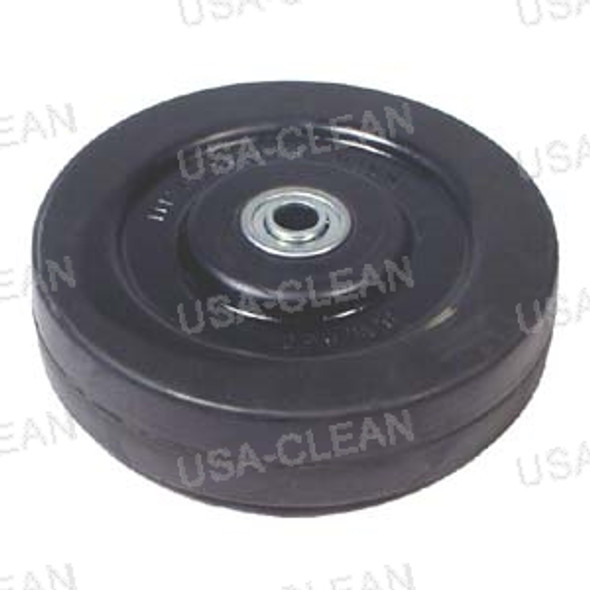

Wheels: Two 6 inch (15 cm) hard rubber rear wheels, four 2 inch by 1.2 inch (5 x 4 cm) height adjustable front rollers.
Dimensions: Height-37 inches (94 cm) Width- 29.5 inches (75 cm) Length- 38.75 inches (98 cm)
Weight: 113 lbs. (51 kg) net 131 lbs. (59 kg) shipping
