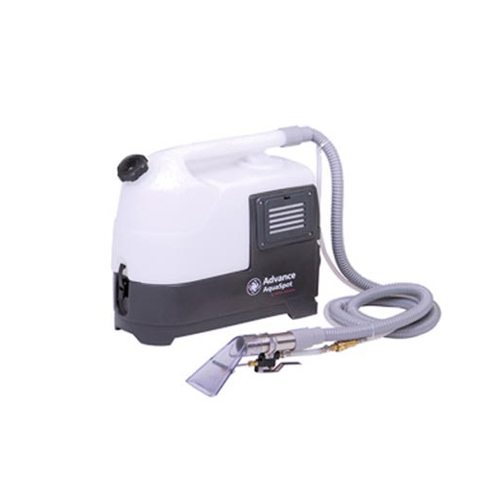

The handy AquaSpot is convenient, easy-to-use extractor for quick clean-ups or spot cleaning carpets, hard to get at areas and upholstery. Its hand help tool dispenses cleaning solution directly on spots or heavily soiled areas, and immediately recovers the dirty solution.

Its lightweight and compact size make the AquaSpot easy to bring to congested areas or off-the-floor places that need cleaning. With the optional transport car, you can bring your cleaning tools and accessories right along with you. And the eight-foot (2.4 m) recovery hose allows freedom to get around your work.

With the two-gallon (7.6 L) clean solution and recovery tanks, there is plenty of capacity to spot-clean a lot of carpet area in any facility.

The AquaSpot is a rugged, commercial-duty carpet spot extractor designed for longevity under heavy use. It features a performance-matched pump with powerful 1 hp, 2-stage vacuum motor that not only cleans the carpet, but leaves it nearly dry and soon ready for normal traffic.

Solution Tank: 2 gal (7.6 L)
Recovery Tank: 2 gal (7.6 L) w/2 in (5.1 cm) threaded drain cap
Construction: Rotational molded polyethylene
Solution Pump: 38 psi (2.62 bar)
Vacuum Motor: 2-stage, 1 hp (786 W), w/78.5 in (199.4 cm) waterlift, 87.7 cfm (41.4 L/sec.)

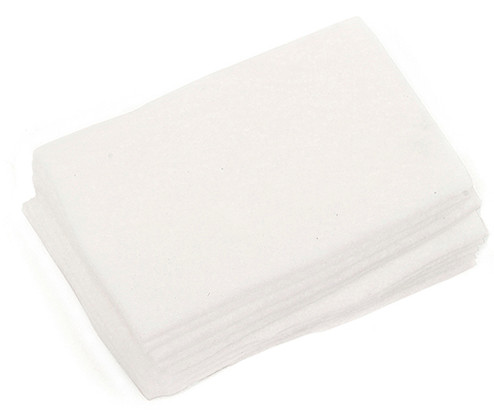

Exhaust Filter: Filtrete™ is 90% efficient on 0.5 microns @ 100 ft/ min*
Power Cable: 25 ft (7.62 m) 16/3 wire detachable cable
Hand Tool: Clear plastic, 3.5 in (8.9 cm) wide w/stainless steel handle

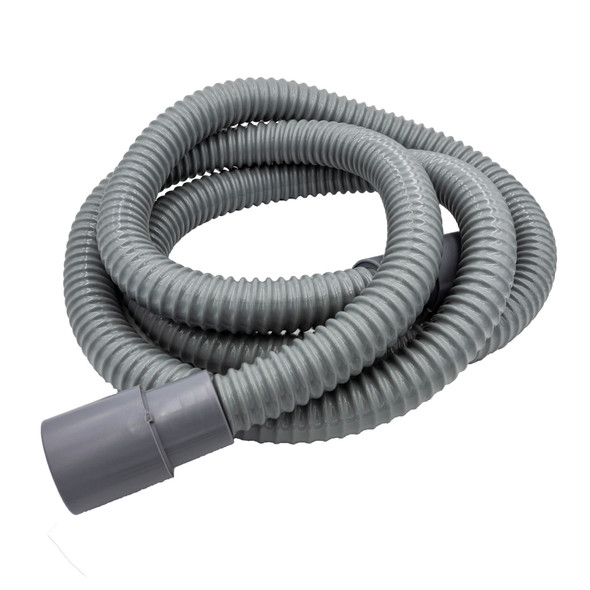

Recovery Hose: 8 ft x 1 in (2.4 m x 2.5 cm) wire-wound PVC
Solution Hose: 9 ft x1/4 in (2.7 m x 0.64 cm) nylon braided PVC
Sound Level: 73 dB A average at 3 feet (91 cm) from machine
Net Weight: 20.5 lb (9.3 kg) machine only
25.75 lb (11.7 kg) machine with hose and cable 12.5 lb (5.7 kg) cart only
Shipping Weight: 35 lb (15.9 kg) machine, with hose and power cable 22 lb (10 kg) cart only
