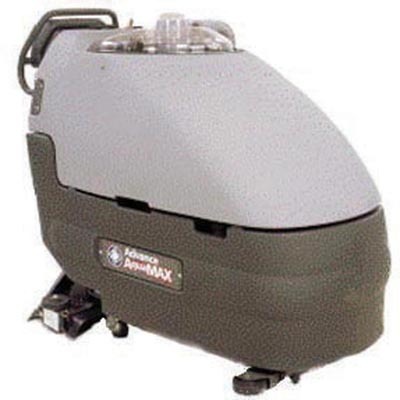

The Advance AquaMax battery-powered automatic extractor cuts operation costs with longer run-time and by minimizing operator dumping and refiling time. This walk-behind extractor is compact, yet holds 40 gallons (176 L) of solution and has a 25 inch (63.5 cm) cleaning path. The 238 Ah battery pack allows for approximately 3.5 hours of actual cleaning time. Large solution tank wide cleaning path and long run time all add up to higher productivity.

The Advance AquaMax has dual-purpose cleaning capability, low moisture and deep cleaning. For low moisture cleaning, use the maintenance mode. The maintenance mode sprays solution on the brush at a low g.p.m. This dampens the carpet and allows for quick dry times. The operator can clean for over 2 hours (over 26,000 ft2) in maintenance mode without refilling or dumping the tanks. For deep cleaning, use the restoration mode. The restoration mode sprays the solution directly into the carpet and cleans over 5,200 ft2 (483 m2) per tank. Switching between the two models only require a turn of the solution control knob.

Unique to the Advance AquaMax is a brush deck that slides out for edge cleaning next to walls that have handrails or other fixtures.

For those tough stains, the chevron brush reverses direction when machine direction changes which enables double scrubbing.

The Advance AquaMax is durable and maneuverable. The heavy-duty steel frame and scrub deck is corrosion protected and built to last. There is a centered drive wheel for maneuverability and tight turning.

When it comes to productivity, durability, and dependability, the Advance AquaMax sets the standard.

Solution Tank 40 gal (151 L) capacity, rotationally molded polyethylene with drain hose
Recovery Bladder 33 gal (125 L) capacity, PVC material, equipped with float ball screen and a 58 in (147 cm) long, 2 in (5 cm) diameter drain hose
Brush Length 25 in (63.5 cm)
Brush Speed 1,200 rpm
Vacuum Shoes 2 – 15.5 in (39 cm) self-leveling
Solution Pump Maintenance Mode — 0.3 gpm (1.1 L/min)at 100 psi
Restoration Mode — 0.9 gpm(3.4 L/min) at 100 psi
Coverage Rate Maintenance Mode — 13,200 ft2/hour(1226 m2/hr)
Restoration Mode — 7,200 ft2/hour(669 m2/hr)
Transport Speed 290 ft/min (88 m/min)
Vacuum Motor Two 1.0 hp, 3-stage bypass, in parallel
Waterlift 72 in (183 cm)
C.F.M. 93 (2,633 L/min)
Brush Motor 0.5 hp (373 W)
Drive Motor 0.5 hp (373 W)
Power Source Six 6 V / 238 Ah batteries
Sound Level 76 dB A
Construction Frame and scrub deck are 10 gauge steel which is zinc plated and epoxy powder coated. All components that come in contact with water are stainless steel
Dimensions Length — 55 in (140 cm) Width — 28 in (71 cm) Height — 43 in (109 cm)
Weight Net — 430 lb (195 kg) machine only
830 lb (376 kg) machine with batteries
Shipping — 950 lb (430 kg) with batteries and charger
585 lb (265 kg) without batteries
