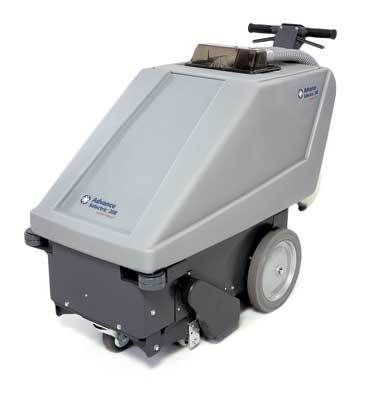

The Aquamatic Selectric™ carpet extractor is fast and easy to use. It
leaves carpet clean and ready for traffic in no time at all. Set your speed, squeeze the hand grips and the Selectric power scrubs and vacuums an 18 in (46 cm) path, extracting at a rate of 5,400 ft2(500 m2 ) an hour.

Compact size and self-propelling drive makes the Aquamatic Selectric™
easy to maneuver. Turns away from the wall without backing up because steering caster is up front. The low profile makes it easy for operators to see what they're maneuvering around.

The Aquamatic Selectric™ with the floating action of its cylindrical brush and vacuum pick-up shoe cleans uneven floor surfaces too. Single wide-angle spray nozzle has large orifice, less down time.

• Touch and Go™ electronic controls
• Four speeds forward and reverse
• 25 gallon (94 L) solution tank
• Center steering caster
• 75 foot (23 m) detachable power cord

Drive Motor: 120 V/60 hz, 0.1 hp, 0.6 amp motor with belt drive to differential.
Speed Control: Touch & Go™ electronic control panel with LED lights located on the top of the handle assembly gives speed selection as well as travel direction.
Travel Speeds: Four speeds forward and reverse.
Power Cable: Detachable 75 ft (22.5 m) 14/3 wire
Power Draw: Max amp draw – 14.5 amps.
Brush Motor: 1/3 hp, 120 V/60 hz, 3.5 amp, reversing motor, totally enclosed.
Brush Drive: Poly-V belt
Brush: 18 in (46 cm) long, 3 in (8 cm) diameter, nylon bristle with chevron pattern turns at 1,200 rpm. Floatation mounted, with foot operated brush-lift lever.
Solution Tank: 25 gal (95 L), polyethylene.
Solution Pump: diaphragm pump, rated 0.78 gpm (3 L/min) at 60 psi (4 bar)
Solution Control: Automatic control in forward with an electric solenoid activated by squeezing the hand levers. Automatic shut-off in reverse.
Single nozzle spray
Vacuum Motor: 120 V/60 hz, 1.5 hp, 10 amp, three-stage by-pass design. 99 cfm (2,800 L/min) with 2 in (5 cm) orifice. 117 in (297 cm) sealed waterlift.
Vacuum Shoe: 20 in (51 cm) wide, stainless steel on floating mount.
Cleaning Path: 18 in (46 cm)
Recovery Tank: 15 gal (56 L) polyethylene, with float system to prevent overflow when tank is full. Drain hose is located at the rear of machine.
Dimensions: Length – 46 in (117 cm)
Width – 21 in (53 cm)
Height – 39 in (100 cm)
Weight: Net – 199 lb (90 kg
Shipping – 229 lb (104 kg)
