ADVOLUTION 24BT

• Parts
• Diagrams
• Manuals
• Docs

Superior Shine in a Sleek Design. All at an Affordable Price.

When the job calls for restoring your floors, gloss, the affordable Advance Advolution battery burnisher outshines even its contemporary new look.

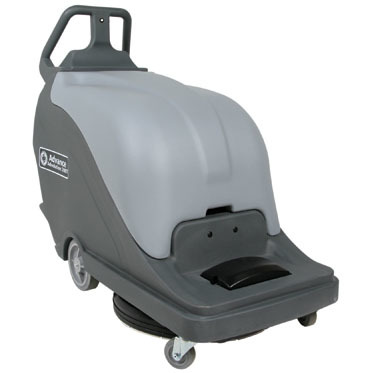

The Advolutio walk-behind battery burnisher delivers consistent and even polishing with self-regulating pad pressure and a floating, flexible pad driver. This eliminates the need for operators to make adjustments to the pad pressure. The Advolution is available with a 20 or 24 inch burnishing path with either pad assist or traction drive.

Choose from either wet batteries for dependable long run time, or maintenance-free AGM gel type batteries for an even longer run time. The onboard battery charger allows for convenient charging at any 120 volt outlet so that operators don't have to return the machine to a storage area.

Safety isn't sacrificed for price and performance, either. An angle-activated safety switch keeps the machine from starting when tipped back in the pad change position. Superior mobility and line of sight mean the Advolution battery burnisher is just as safe when running.

The Advolution battery burnisher is easier to use than any other burnisher in the market - just turn it on and go. The burnishing deck automatically lowers to the floor when the burnisher motor turns on, and returns to a raised position when the motor is turned off. Simple controls minimize training time and expense.

All models feature the best passive dust control in the market, which helps improve indoor air quality. A felt seal contains all dust within a specially designed shroud, directing it into a dual-port, disposable filter bag. For facilities where indoor air quality is even more critical, optional active dust control is available with the addition of an Adgility hip-style vacuum on the front of the machine.

Whichever model choose, the Advance Advolution battery burnisher gives you high performance, cleaner indoor air quality, and competitively priced equipment demanded in today's market - all in a new, modern design.

Burnishing Swath / Pad Diameter 24 in (61 cm)
Power 36 V, (3) 12 V batt.
Traction Power Traction
Low Battery Protection ALL MODELS
Onboard Charger 36 V, 25 A DC, 85 - 265 V / 45 - 65 Hz AC – ALL MODELS
Pad Motor 3.25 hp (2.4 kW)
Transaxle Traction Motor .5 hp (.37 kW) – ALL MODELS
Pad RPM (On the Floor) 1,600 rpm
Pad Pressure Self Regulation to 30 lb (13 kg) – ALL MODELS
Forward Speed 0-240 ft/min (73.2 m/min)
Reverse Speed 0-170 ft/min (51.8 m/min)
Sound Level 65 dBA
Drive Wheels 1.62 x 8 in (4 cm x 20 cm)- ALL MODELS
Polishing Rate (maximum) 28,800 ft2/hr (8,778 m2/hr)
Polishing Rate (practical) 21,120 ft2/hr (6,437 m2/hr)-24B and 24BT
Length 54.5 in (138 cm)
Width 27 in (68.6 cm)
Height 42.5 in (108 cm)
Batteries 234 Ah AGM
Weight w/o batteries 652 lb (296 kg)
Weight w/batteries 783 lb (355 kg)
