When the job calls for restoring your floor’s gloss, the affordable
Advance Advolution™ battery burnisher outshines even its contemporary new look.

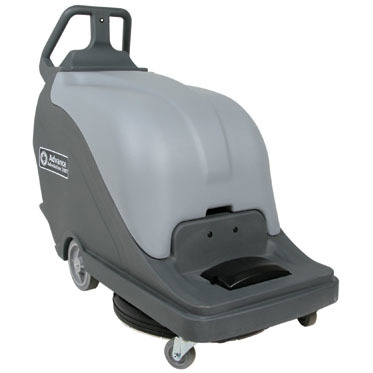

The Advolution walk-behind battery burnisher delivers consistent
and even polishing with a self-regulating pad pressure and a floating,
flexible pad driver. This eliminates the need for operators to make
adjustments to the pad pressure. The Advolution is available with a 20
or 24 inch burnishing path with either pad assist or traction drive.

Choose from either wet batteries for dependable long run time, or
maintenance-free AGM gel type batteries for even longer run time. The
onboard battery charger allows for convenient charging at any 120 volt
outlet so that operators don’t have to return the machine to a
storage area.

Safety isn’t sacrificed for price and performance, either. An angle-activated safety switch keeps the machine from starting when tipped back in the pad change position. Superior mobility and line of sight
mean the Advolution battery burnisher is just as safe when running.

The Advolution battery burnisher is easier to use than any other
burnisher in the market – just turn it on and go. The burnishing deck
automatically lowers to the floor when the burnisher motor turns on,
and returns to a raised position when the motor is turned off. Simple
controls minimize training time and expense.

All models feature the best passive dust control in the market, which
helps improve indoor air quality. A felt seal contains all dust within a
specially designed shroud, directing it into a dual-port, disposable
filter bag. For facilities where indoor air quality is even more critical,
optional active dust control is available with the addition of an Adgility™ hip-style vacuum on the front of the machine.

Whichever model you choose, the Advance Advolution battery
burnisher gives you high performance, cleaner indoor air quality, and
competitively priced equipment demanded in today’s market – all in a
new, modern design.

Burnishing Swath / Pad Diameter: 24 in (61 cm)
Power: 36 V, (3) 12V batt.
Traction: Pad Assist
Low Battery Protection: ALL MODELS
Onboard Charger: 36V, 25 A DC, 85 - 265 V / 45 - 65 Hz AC – ALL MODELS
Pad Motor: 3.25 hp (2.4 kW)
Transaxle Traction Motor: .5 hp (.37 kW) – ALL MODELS
Pad RPM (On the Floor): 1,600 rpm
Pad Pressure: Self Regulation to 30 lb (13 kg) – ALL MODELS
Forward Speed –
Reverse Speed –
Sound Level: 65 dB A
Drive Wheels: 1.62 in x 8 in (4 cm x 20 cm) – ALL MODELS
Polishing Rate (maximum) : 28,800 ft2/ hr (8,778 m2/ hr)
Polishing Rate (practical) : 21,120 ft2/ hr (6,437 m2/ hr) – 24B and 24BT
Length: 54.5 in (138 cm)
Width: 27 in (68.6 cm)
Height: 42.5 in (108 cm)
Batteries : 234 Ah AGM 220 Ah
Weight w/Batteries: 638 lb 572 lb
(289 kg) (259 kg)
Weight w/o Batteries: 769 lb 703 lb
(349 kg) (319 kg)
