modular scrub deck system that lets you get a custom fit for your
facility. The Advance Advenger® design has interchangeable scrub
deck options ranging from 28 inches to 38 inches, with disc or
cylindrical styles on all sizes. Add to the deck options two high
capacity battery options and a wide variety of scrub brush and
squeegee options. The result is a highly flexible machine that
gives you a custom fit and can change as your needs change
without costly machine replacement.
• COMFORTABLE TO USE: The One-Touch™ control panel, ergonomically designed operator compartment with tilt wheel and unsurpassed visibility make the unit not just easy to use but comfortable to use. The open front, Clear-View™ design allows operators to see clearly what they are cleaning and where they are going. A mechanical brake stops the machine quickly when necessary. This keeps productivity and safety at a maximum.
• PRODUCTIVITY: Rider machines are more productive than walk behind machines because they travel at a faster speed, have greater solution capacity and can utilize larger scrub decks without sacrificing maneuverability. In addition to completing the scrubbing task in less time, riders leave operators fresh and ready to take on other cleaning tasks.
• INDUSTRIAL DESIGN: The Advance Advenger® is built to thrive in tough industrial environments. The tanks are made of thick, rotomolded polyethylene that stand-up to abuse without denting and cracking. The Advance Advenger®has 1.5 hp drive motor that provides excellent ramp climbing abilities.
Cleaning Widths: 32 in (81 cm)
Coverage Rate: 31.350 ft2/hr
Solution Tank: 30 gal (103 L) capacity
Recovery Tank: 30-gal (103 L) capacity
Brush Speed: Disc models – 250 rpm Cylindrical models – 900 rpm
Brush Pressure: Variable to 250 lb (113 kg)
Brush Drive:
Disc models – 1.5 hp, 1100 W
Cylindrical models – Two 0.75 hp, 560 W motors on opposing ends, poly-V belt brush drive
Scrub Deck: Disc models – manual-adjusting side skirts contain solution.
Cylindrical models – includes hopper for collecting small litter; auto-adjusting side skirts contain solution. Vacuum Motor: 0.75 hp, 560 W, three-stage
Squeegee: 36.6 in (93 cm)
Drive System: 0.80 hp, 600 W motor with gear transmission, band brake and dynamic braking.
Programmable speeds up to 4.5 mph transport.
Power Source: Six 6 V / 238 Ah (@ 20 hour rate) batteries
Sound Level: 70 dB A @ operator position
Min. Turn-around Aisle Width: 63 in (160 cm) right or left
Dimensions:
Length – 60 in (152 cm)
Height – 53 i (135 cm)
Width – 36 in (91 cm) (Squeegee)
Weight: Net – 605 lb (274 kg) without batteries Net – 1,145 lb (519 kg) with batteries Shipping – 1,413 lb (641 kg) with batteries

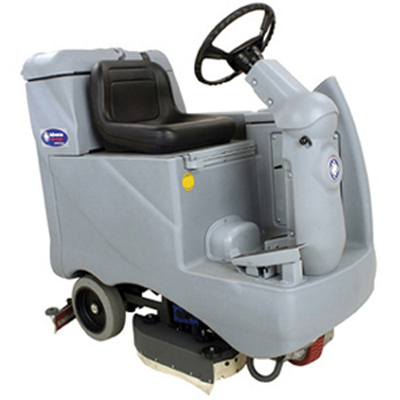

Nilfisk-Advance ADVENGER 3210D Parts and Support
• CUSTOM FIT: The Advance Advenger® features a unique
modular scrub deck system that lets you get a custom fit for your
facility. The Advance Advenger® design has interchangeable scrub
deck options ranging from 28 inches to 38 inches, with disc or
cylindrical styles on all sizes. Add to the deck options two high
capacity battery options and a wide variety of scrub brush and
squeegee options. The result is a highly flexible machine that
gives you a custom fit and can change as your needs change
without costly machine replacement.
• COMFORTABLE TO USE: The One-Touch™ control panel, ergonomically designed operator compartment with tilt wheel and unsurpassed visibility make the unit not just easy to use but comfortable to use. The open front, Clear-View™ design allows operators to see clearly what they are cleaning and where they are going. A mechanical brake stops the machine quickly when necessary. This keeps productivity and safety at a maximum.
• PRODUCTIVITY: Rider machines are more productive than walk behind machines because they travel at a faster speed, have greater solution capacity and can utilize larger scrub decks without sacrificing maneuverability. In addition to completing the scrubbing task in less time, riders leave operators fresh and ready to take on other cleaning tasks.
• INDUSTRIAL DESIGN: The Advance Advenger® is built to thrive in tough industrial environments. The tanks are made of thick, rotomolded polyethylene that stand-up to abuse without denting and cracking. The Advance Advenger®has 1.5 hp drive motor that provides excellent ramp climbing abilities.
Cleaning Widths: 32 in (81 cm)
Coverage Rate: 31.350 ft2/hr
Solution Tank: 30 gal (103 L) capacity
Recovery Tank: 30-gal (103 L) capacity
Brush Speed: Disc models – 250 rpm Cylindrical models – 900 rpm
Brush Pressure: Variable to 250 lb (113 kg)
Brush Drive:
Disc models – 1.5 hp, 1100 W
Cylindrical models – Two 0.75 hp, 560 W motors on opposing ends, poly-V belt brush drive
Scrub Deck: Disc models – manual-adjusting side skirts contain solution.
Cylindrical models – includes hopper for collecting small litter; auto-adjusting side skirts contain solution. Vacuum Motor: 0.75 hp, 560 W, three-stage
Squeegee: 36.6 in (93 cm)
Drive System: 0.80 hp, 600 W motor with gear transmission, band brake and dynamic braking.
Programmable speeds up to 4.5 mph transport.
Power Source: Six 6 V / 238 Ah (@ 20 hour rate) batteries
Sound Level: 70 dB A @ operator position
Min. Turn-around Aisle Width: 63 in (160 cm) right or left
Dimensions:
Length – 60 in (152 cm)
Height – 53 i (135 cm)
Width – 36 in (91 cm) (Squeegee)
Weight: Net – 605 lb (274 kg) without batteries Net – 1,145 lb (519 kg) with batteries Shipping – 1,413 lb (641 kg) with batteries
modular scrub deck system that lets you get a custom fit for your
facility. The Advance Advenger® design has interchangeable scrub
deck options ranging from 28 inches to 38 inches, with disc or
cylindrical styles on all sizes. Add to the deck options two high
capacity battery options and a wide variety of scrub brush and
squeegee options. The result is a highly flexible machine that
gives you a custom fit and can change as your needs change
without costly machine replacement.
• COMFORTABLE TO USE: The One-Touch™ control panel, ergonomically designed operator compartment with tilt wheel and unsurpassed visibility make the unit not just easy to use but comfortable to use. The open front, Clear-View™ design allows operators to see clearly what they are cleaning and where they are going. A mechanical brake stops the machine quickly when necessary. This keeps productivity and safety at a maximum.
• PRODUCTIVITY: Rider machines are more productive than walk behind machines because they travel at a faster speed, have greater solution capacity and can utilize larger scrub decks without sacrificing maneuverability. In addition to completing the scrubbing task in less time, riders leave operators fresh and ready to take on other cleaning tasks.
• INDUSTRIAL DESIGN: The Advance Advenger® is built to thrive in tough industrial environments. The tanks are made of thick, rotomolded polyethylene that stand-up to abuse without denting and cracking. The Advance Advenger®has 1.5 hp drive motor that provides excellent ramp climbing abilities.
Cleaning Widths: 32 in (81 cm)
Coverage Rate: 31.350 ft2/hr
Solution Tank: 30 gal (103 L) capacity
Recovery Tank: 30-gal (103 L) capacity
Brush Speed: Disc models – 250 rpm Cylindrical models – 900 rpm
Brush Pressure: Variable to 250 lb (113 kg)
Brush Drive:
Disc models – 1.5 hp, 1100 W
Cylindrical models – Two 0.75 hp, 560 W motors on opposing ends, poly-V belt brush drive
Scrub Deck: Disc models – manual-adjusting side skirts contain solution.
Cylindrical models – includes hopper for collecting small litter; auto-adjusting side skirts contain solution. Vacuum Motor: 0.75 hp, 560 W, three-stage
Squeegee: 36.6 in (93 cm)
Drive System: 0.80 hp, 600 W motor with gear transmission, band brake and dynamic braking.
Programmable speeds up to 4.5 mph transport.
Power Source: Six 6 V / 238 Ah (@ 20 hour rate) batteries
Sound Level: 70 dB A @ operator position
Min. Turn-around Aisle Width: 63 in (160 cm) right or left
Dimensions:
Length – 60 in (152 cm)
Height – 53 i (135 cm)
Width – 36 in (91 cm) (Squeegee)
Weight: Net – 605 lb (274 kg) without batteries Net – 1,145 lb (519 kg) with batteries Shipping – 1,413 lb (641 kg) with batteries
Parts
Can't find what you need? Click here or call 1-800-USA-CLEAN
Need a professional? We offer in person service.
Learn more
Diagrams
- View all diagrams
- - Batteries, Brushes, and Chargers
- - Pad Holders
- - Pads - 16 inch
- -Simplified Electrical System
- -Simplified Electrical System 1
- -Simplified Recovery System
- -Simplified Recovery System 1
- -Simplified Solution System
- -Simplified Solution System 1
- Chassis Assembly
- Decal Assembly
- Detergent Injection System
- Disk Deck Assembly
- Drive and Pedal Assembly
- Dual Vac Motor Kit
- Electrical Panel Assembly
- Front Wheel Assembly
- Headlight Kit
- Onboard Charger Kit
- Recovery Assembly
- Scrub and Vac Tool Kit
- Scrub Assembly - Disk
- Scrub Assembly - Cylindrical
- Side Broom Kit
- Skirt Assembly - Cylindrical
- Skirt Assembly - Disk - After SN 179475
- Skirt Assembly - Disk - Before SN 179475
- Solution Assembly
- Squeegee Assembly
- Squeegee System
- Steering Column Assembly
- Vacuum Wand Caddy Kit
- Warning Beacon Assembly
- Wiring Diagram- Before SN
Manuals
Repair Guides
- Adjusting the Potentiometer
- Cleaning or Replacing the Solution Filter
- Replacing the Squeegee Blades
- Replacing the Vacuum Motor
