• COMFORTABLE TO USE: The One-Touch control panel, ergonomically designed operator compartment with tilt wheel and unsurpassed visibility make the unit not just easy as to use but comfortable to use. The open front, Clear-View design allows operators to see clearly what they are cleaning and where they are going. A mechanical brake stops the machine quickly when necessary. This keeps productivity and safety at a maximum,
• PRODUCTIVITY: Rider machines are more productive than walk behind machines because they travel at a faster speed, have a greater solution capacity and can utilize larger scrub decks with sacrificing maneuverability. In addition to completing the scrubbing tasks in less time, riders leave operators fresh and ready to take on other cleaning tasks.
• INDUSTRIAL DESIGN: The Advance Advenger® is built to thrive in tough industrial environments. The tanks are made of thick, rotomolded polyethylene that stand-up to abuse without denting and cracking. The Advance Advenger® has 1.5 hp drive motor that provides excellent ramp climbing abilities.
Cleaning Widths: 28 in (71 cm)
Coverage Rate: r 27,170 ft2/hr
Solution Tank: 30 gal (103 L) capacity
Recovery Tank:30 gal (103 L) capacity
Brush Speed: Disc models – 250 rpm Cylindrical models – 900 rpm
Brush Pressure: Variable to 250 lb (113 kg)
Brush Drive:
Disc models – 1.5 hp, 1100 W
Cylindrical models – Two 0.75 hp, 560 W motors on opposing ends, poly-V belt brush drive
Scrub Deck: Disc models – manual-adjusting side skirts contain solution
Cylindrical models – includes hopper for collecting small litter; auto-adjusting side skirts contain solution
Vacuum Motor: 0.75 hp, 560 W, three-stage
Squeegee: 32.6 in (82.8 cm)
Drive System: 0.80 hp, 600 W motor with gear transmission, band brake and dynamic braking.
Programmable speeds up to 4.5 mph transport.
Power Source: Six 6 V / 238 Ah (@ 20 hour rate) batteries
Sound Level: 70 dB A @ operator position
Min. Turn-around Aisle Width: 63 in (160 cm) right or left
Dimensions:
Length – 60 in (152 cm)
Height – 53 in (135 cm)
Width – 32 in (81 cm) (Squeegee)
Weight:
Net – 605 lb (274 kg) without batteries
Net – 1,145 lb (519 kg) with batteries
Shipping – 1,413 lb (641 kg) with batteries

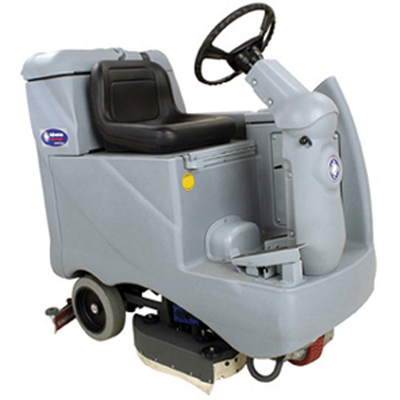

Nilfisk-Advance ADVENGER 2810D Parts and Support
• custom fit: the advance advenger features a unique modular scrub deck system that lets you get a custom fit for your facility. the advance advenger design has interchangeable scrub deck options ranging from 28 inches to 38 inches, with disc or cylindrical styles on all sizes. add to the deck options two high capacity battery options and a wide variety of scrub brush and squeegee options. the result is a highly flexible machine that gives you a custom fit and can change ass your needs change without costly machine replacement.
• comfortable to use: the one-touch control panel, ergonomically designed operator compartment with tilt wheel and unsurpassed visibility make the unit not just easy as to use but comfortable to use. the open front, clear-view design allows operators to see clearly what they are cleaning and where they are going. a mechanical brake stops the machine quickly when necessary. this keeps productivity and safety at a maximum,
• productivity: rider machines are more productive than walk behind machines because they travel at a faster speed, have a greater solution capacity and can utilize larger scrub decks with sacrificing maneuverability. in addition to completing the scrubbing tasks in less time, riders leave operators fresh and ready to take on other cleaning tasks.
• industrial design: the advance advenger® is built to thrive in tough industrial environments. the tanks are made of thick, rotomolded polyethylene that stand-up to abuse without denting and cracking. the advance advenger® has 1.5 hp drive motor that provides excellent ramp climbing abilities.
cleaning widths: 28 in (71 cm)
coverage rate: r 27,170 ft2/hr
solution tank: 30 gal (103 l) capacity
recovery tank:30 gal (103 l) capacity
brush speed: disc models – 250 rpm cylindrical models – 900 rpm
brush pressure: variable to 250 lb (113 kg)
brush drive:
disc models – 1.5 hp, 1100 w
cylindrical models – two 0.75 hp, 560 w motors on opposing ends, poly-v belt brush drive
scrub deck: disc models – manual-adjusting side skirts contain solution
cylindrical models – includes hopper for collecting small litter; auto-adjusting side skirts contain solution
vacuum motor: 0.75 hp, 560 w, three-stage
squeegee: 32.6 in (82.8 cm)
drive system: 0.80 hp, 600 w motor with gear transmission, band brake and dynamic braking.
programmable speeds up to 4.5 mph transport.
power source: six 6 v / 238 ah (@ 20 hour rate) batteries
sound level: 70 db a @ operator position
min. turn-around aisle width: 63 in (160 cm) right or left
dimensions:
length – 60 in (152 cm)
height – 53 in (135 cm)
width – 32 in (81 cm) (squeegee)
weight:
net – 605 lb (274 kg) without batteries
net – 1,145 lb (519 kg) with batteries
shipping – 1,413 lb (641 kg) with batteries
• comfortable to use: the one-touch control panel, ergonomically designed operator compartment with tilt wheel and unsurpassed visibility make the unit not just easy as to use but comfortable to use. the open front, clear-view design allows operators to see clearly what they are cleaning and where they are going. a mechanical brake stops the machine quickly when necessary. this keeps productivity and safety at a maximum,
• productivity: rider machines are more productive than walk behind machines because they travel at a faster speed, have a greater solution capacity and can utilize larger scrub decks with sacrificing maneuverability. in addition to completing the scrubbing tasks in less time, riders leave operators fresh and ready to take on other cleaning tasks.
• industrial design: the advance advenger® is built to thrive in tough industrial environments. the tanks are made of thick, rotomolded polyethylene that stand-up to abuse without denting and cracking. the advance advenger® has 1.5 hp drive motor that provides excellent ramp climbing abilities.
cleaning widths: 28 in (71 cm)
coverage rate: r 27,170 ft2/hr
solution tank: 30 gal (103 l) capacity
recovery tank:30 gal (103 l) capacity
brush speed: disc models – 250 rpm cylindrical models – 900 rpm
brush pressure: variable to 250 lb (113 kg)
brush drive:
disc models – 1.5 hp, 1100 w
cylindrical models – two 0.75 hp, 560 w motors on opposing ends, poly-v belt brush drive
scrub deck: disc models – manual-adjusting side skirts contain solution
cylindrical models – includes hopper for collecting small litter; auto-adjusting side skirts contain solution
vacuum motor: 0.75 hp, 560 w, three-stage
squeegee: 32.6 in (82.8 cm)
drive system: 0.80 hp, 600 w motor with gear transmission, band brake and dynamic braking.
programmable speeds up to 4.5 mph transport.
power source: six 6 v / 238 ah (@ 20 hour rate) batteries
sound level: 70 db a @ operator position
min. turn-around aisle width: 63 in (160 cm) right or left
dimensions:
length – 60 in (152 cm)
height – 53 in (135 cm)
width – 32 in (81 cm) (squeegee)
weight:
net – 605 lb (274 kg) without batteries
net – 1,145 lb (519 kg) with batteries
shipping – 1,413 lb (641 kg) with batteries
Parts
Can't find what you need? Click here or call 1-800-USA-CLEAN
In the market for a new machine? You can find quality new and reconditioned floor care equipment at one of our vendor partners:
Need a professional? We offer service both virtually and in person.
Learn more
Diagrams
- View all diagrams
- - Pad Holders
- Batteries, Brushes and Charger
- Chassis Assembly
- Decal Assembly
- Detergent Injection System
- Disk Deck Assembly
- Drive and Pedal Assembly
- Dual Vac Motor Kit
- Electrical Panel Assembly
- Front Wheel Assembly
- Headlight Kit
- Onboard Charger Kit
- Pads
- Recovery Assembly
- Scrub and Vac Tool Kit
- Scrub Assembly - Disk
- Scrub Assembly - Cylindrical
- Side Broom Kit
- Skirt Assembly - Cylindrical
- Skirt Assembly - Disk - After SN 179475
- Skirt Assembly - Disk - Before SN 179475
- Solution Assembly
- Squeegee Assembly
- Squeegee System
- Steering Column Assembly
- Vacuum Wand Caddy Kit
- Warning Beacon Assembly
- Wiring Diagram- Before SN
